FEATURES
- Supports ONVIF standard which is compatible with working ONVIF compliant Profiles G/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.
- Guaranteed PoE long distance to 200 meters.
- PoE powered devices (PD) alive check to enhance the reliability of the network. If a PD fails to respond, the GS-5210PL will reboot the PD.
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 110W) for powering PoEenabled devices.
- Dual-firmware image for robust failover mechanisms. It can activate the backup firmware right away while the current one faces problems.
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality.

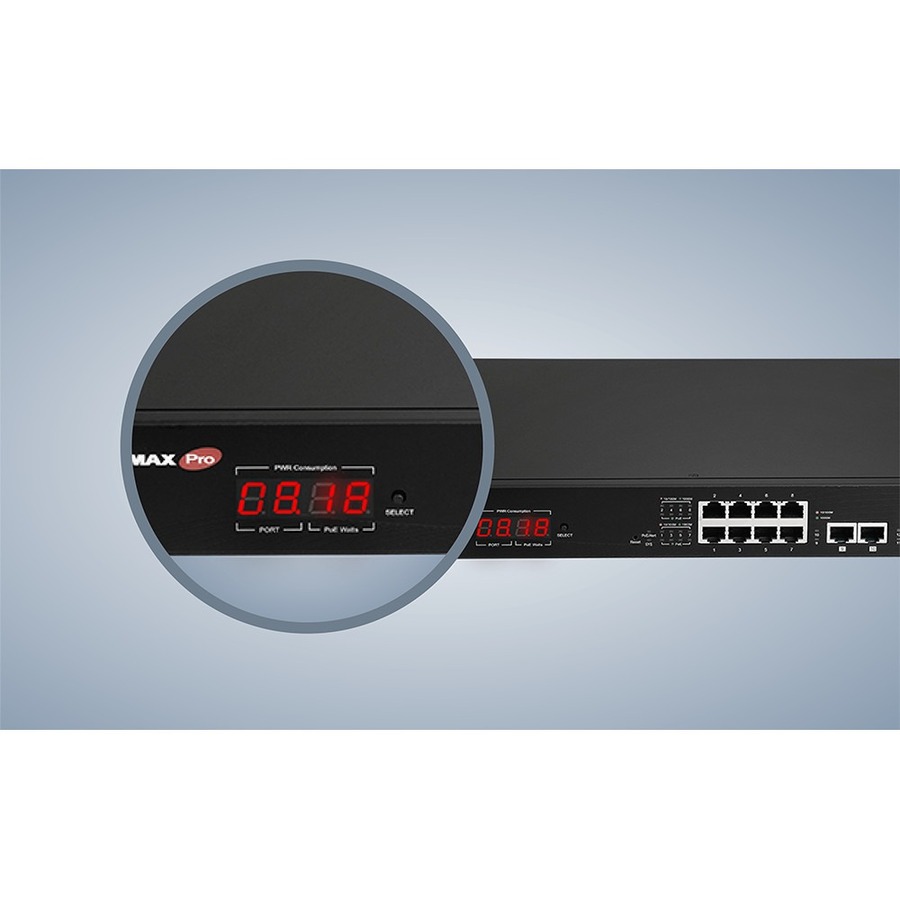

- 4-digit LED display showing total PoE power, available power, and power consumption.
- Auto-detection of powered devices (PD) and power consumption levels.
- Power backfeed protection to avoid damaging the PoE ports.
- DHCP snooping to protect the integrity of legitimate DHCP server and its operations.
- Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring.
OVERVIEW

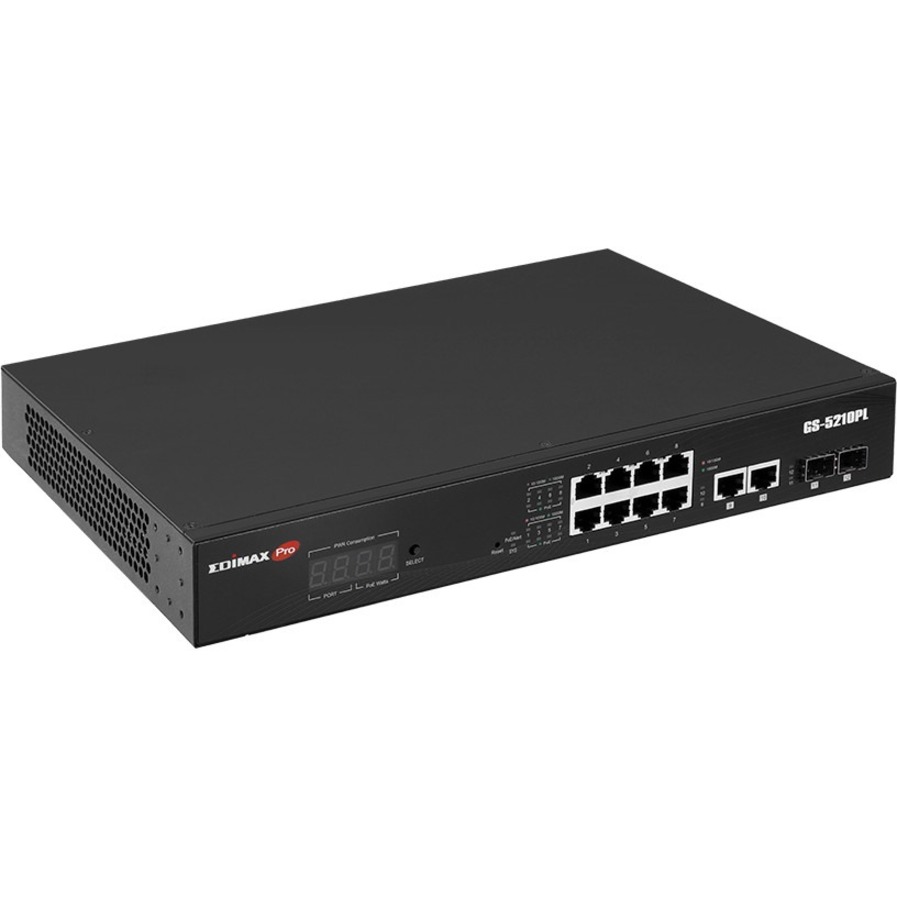

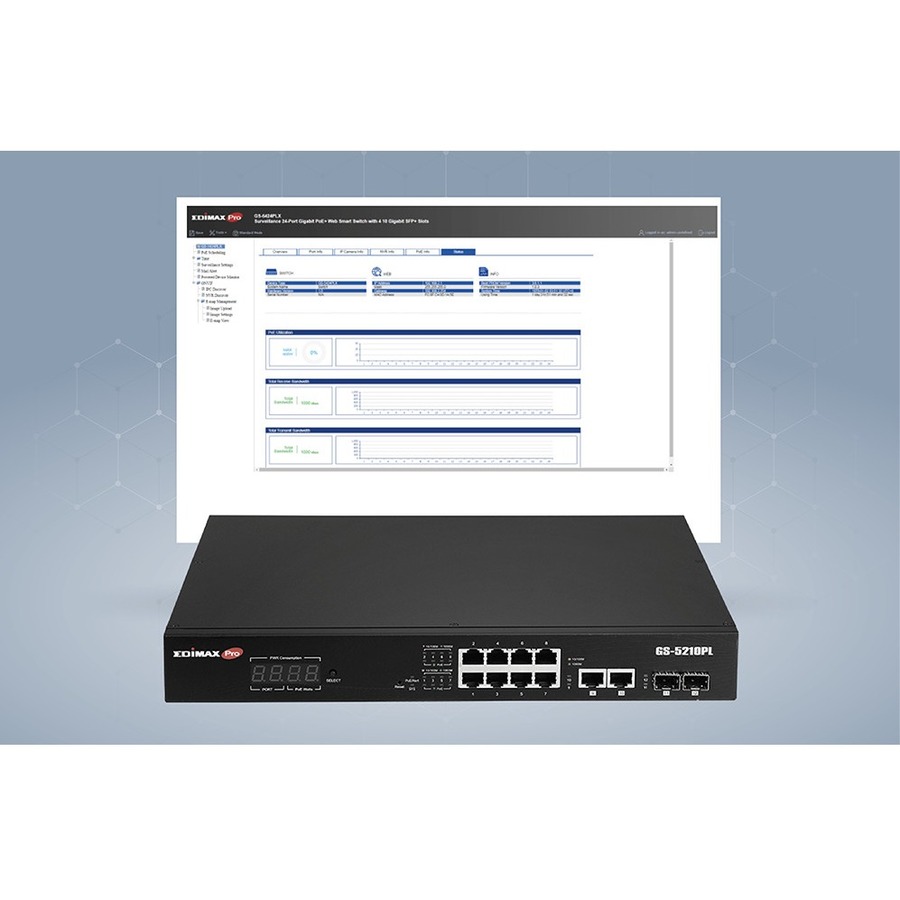

The EDIMAX Pro GS-5210PL long-range web-smart switch comes with a web-based user interface, 10 Gigabit ports, and 2 SFP Ports for Gigabit uplinks and long-range copper or optical connections. The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.
The EDIAMX specific long-range mode enables power and data transmission to 200 meters at a speed of 10Mbps guaranteed. Tailored for IP cameras and far away network device applications. The PoE also features auto-detection and power backfeed protection to efficiently provide power and, at the same time, avoid damaging the PoE ports.
With smart features such as SNMP v3, PoE PD Alive Check, Auto Detect IP Surveillance VLAN, Voice VLAN, DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring, the EDIMAX Pro GS-5210PL smart switch provides a cost-effective, reliable, scalable and secure switch solution for SMB networks.
ONVIF Compliant | For Quick Install of Security Devices The GS-5210PL offers feature-rich IP Surveillance VLAN to prioritize IP video traffic with ease, which also supports ONVIF standardized network cameras and network video recorders (NVRs). These functions provide IP surveillance installers easy setup, quick discovery, configuration, and control of ONVIF conformant products on the network. Just plug and play.
Main Specification
General Information |
Manufacturer |
Edimax Technology |
Manufacturer Part Number |
GS-5210PL |
Manufacturer Website Address |
http://www.edimax.com |
Brand Name |
Edimax |
Product Model |
GS-5210PL |
Product Name |
GS-5210PL POE Switch |
Product Type |
Ethernet Switch |
Interfaces/Ports |
Total Number of Network Ports |
12 |
Network (RJ-45) |
Yes |
Uplink Port |
Yes |
Stack Port |
Yes |
Port/Expansion Slot Details |
10 x Gigabit Ethernet Slot |
Port/Expansion Slot Details |
2 x SFP Port |
Media & Performance |
Media Type Supported |
Twisted Pair |
Media Type Supported |
Optical Fiber |
Ethernet Technology |
Gigabit Ethernet |
Network Technology |
10/100/1000Base-T |
Network Technology |
1000Base-X |
I/O Expansions |
Number of Total Expansion Slots |
2 |
Expansion Slot Type |
SFP |
Number of SFP Slots |
2 |
Network & Communication |
Networking Standards |
IEEE 802.3ad |
Networking Standards |
IEEE 802.3z |
Networking Standards |
IEEE 802.3x |
Networking Standards |
IEEE 802.3af |
Networking Standards |
IEEE 802.1w |
Networking Standards |
IEEE 802.1p |
Networking Standards |
IEEE 802.3az |
Networking Standards |
IEEE 802.3 |
Networking Standards |
IEEE 802.3ab |
Networking Standards |
IEEE 802.1D |
Networking Standards |
IEEE 802.1Q |
Networking Standards |
IEEE 802.1x |
Networking Standards |
IEEE 802.3at |
Networking Standards |
IEEE 802.3u |
Management & Protocols |
Manageable |
Yes |
Power Description |
PoE (RJ-45) Port |
Yes |
PoE Budget |
30 W |
Input Voltage |
220 V AC |
Input Voltage |
110 V AC |
Power Source |
Power Supply |
Number of Power Supplies Supported |
1 |
Number of Power Supplies Installed |
1 |
Power Consumption |
110 W |
Physical Characteristics |
Height |
1.7" |
Width |
9.1" |
Length |
13" |
Weight (Approximate) |
5.07 lb |
