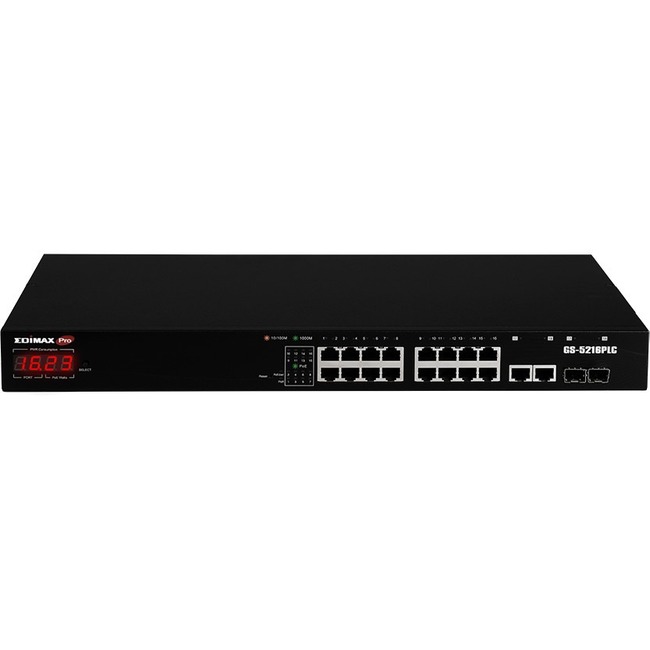

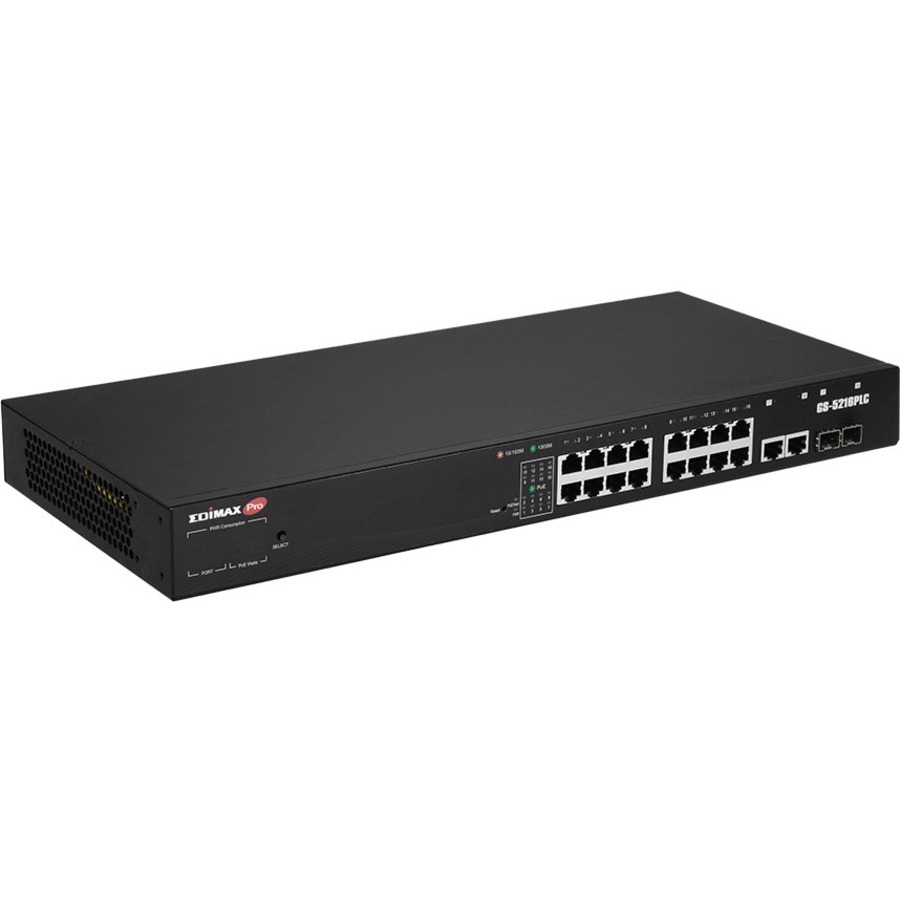

The EDIMAX Pro GS-5216PLC long-range web-smart switch comes with a web-based user interface, 16 Gigabit PoE+ ports, and two RJ45/SFP combo ports for Gigabit uplinks . The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.
The EDIAMX specific long-range mode enables power and data transmission to 200 meters at a speed of 10Mbps guaranteed. Tailored for IP cameras and far away network device applications. The PoE also features auto-detection and power backfeed protection to efficiently provide power and avoid damaging the PoE ports at the same time,
With smart features such as SNMP v3, PoE PD Alive Check, Auto Detect IP Surveillance VLAN, Voice VLAN, DHCP Snooping, QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring, the EDIMAX Pro GS-5216PLC smart switch provides a cost-effective, reliable, scalable and secure switch solution for SMB networks.
General Information | |
Manufacturer | Edimax Technology |
Manufacturer Part Number | GS-5216PLC |
Manufacturer Website Address | http://www.edimax.com |
Brand Name | Edimax |
Product Line | Web Smart |
Product Model | GS-5216PLC |
Product Name | Web Smart GS-5216PLC Ethernet Switch |
Product Type | Ethernet Switch |
Interfaces/Ports | |
Total Number of Network Ports | 18 |
Network (RJ-45) | Yes |
Uplink Port | Yes |
Modular | Yes |
Port/Expansion Slot Details | 2 x Gigabit Ethernet Combo Port |
Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
Media & Performance | |
Media Type Supported | Twisted Pair |
Media Type Supported | Optical Fiber |
Ethernet Technology | Gigabit Ethernet |
Network Technology | 10/100/1000Base-T |
Network Technology | 1000Base-X |
I/O Expansions | |
Number of Total Expansion Slots | 2 |
Expansion Slot Type | SFP |
Number of SFP Slots | 2 |
Network & Communication | |
Layer Supported | 3 |
Management & Protocols | |
Manageable | Yes |
Power Description | |
PoE (RJ-45) Port | Yes |
PoE Budget | 280 W |
Input Voltage | 230 V AC |
Input Voltage | 120 V AC |
Power Source | Power Supply |
Physical Characteristics | |
Compatible Rack Unit | 1U |
Form Factor | Rack-mountable |
Height | 1.7" |
Width | 7.7" |
Length | 17.4" |
Weight (Approximate) | 6.68 lb |
