TP LINK TP-Link Network EAP655-Wall AX3000 Wall Plate Wi-Fi 6 Access Point Retail

Match Your Room with AX3000 WiFi 6

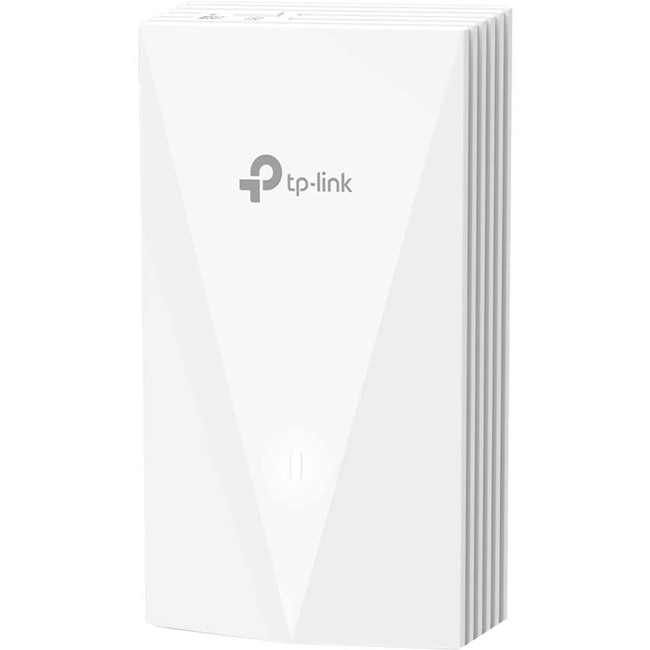

AX3000 Wall Plate WiFi 6 Access Point

AX3000 WiFi 6 Speed

2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz

High-Efficiency WiFi 6

More connected devices enjoy faster speeds

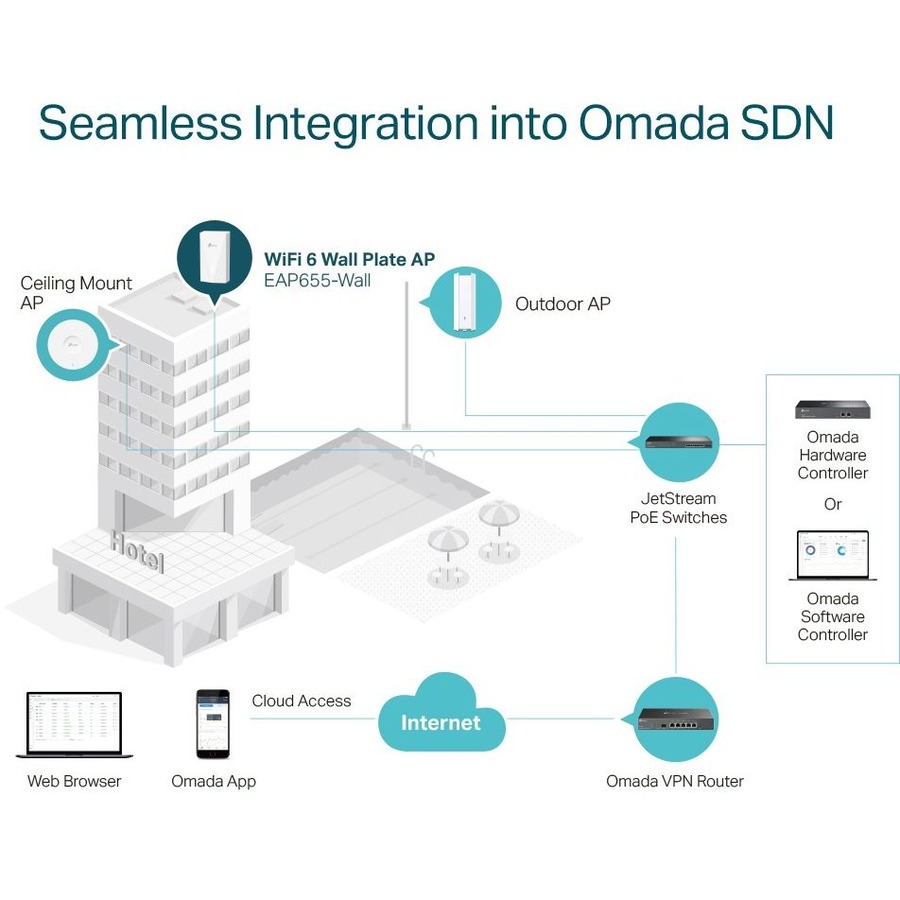

Centralized Cloud Management

Manage the whole network locally or from the cloud

160 MHz Channel

Double the data at peak transmission times on a single stream with HE160

Enhanced Security

With guest networks, Captive Portal, and WPA3 encryption

Seamless Roaming

Uninterrupted streaming when moving between APs

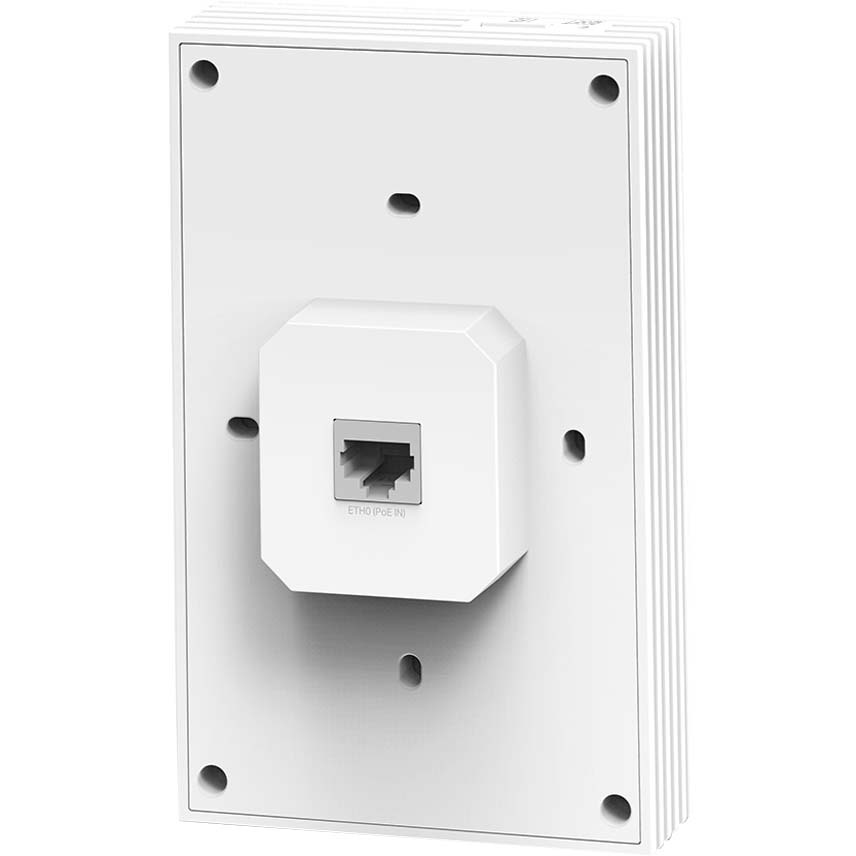

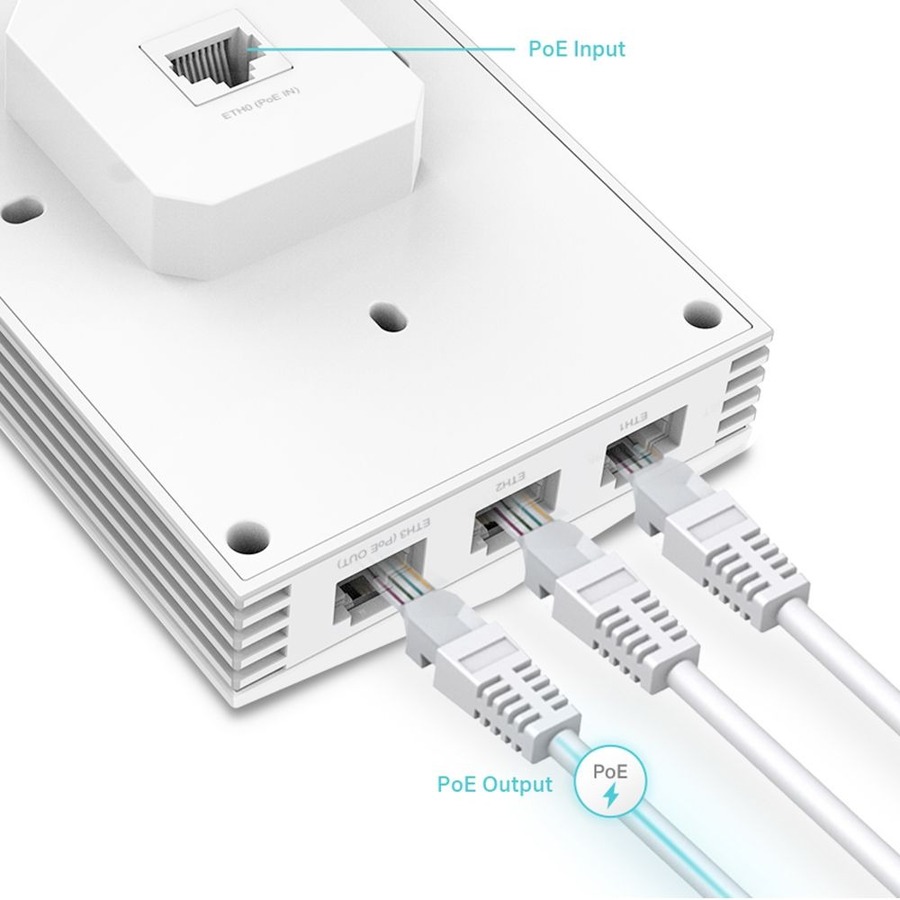

Four Gigabit Ports

Three downlink gigabit ports, one with PoE pass-through

802.3af/at PoE Support

Flexible and convenient deployment

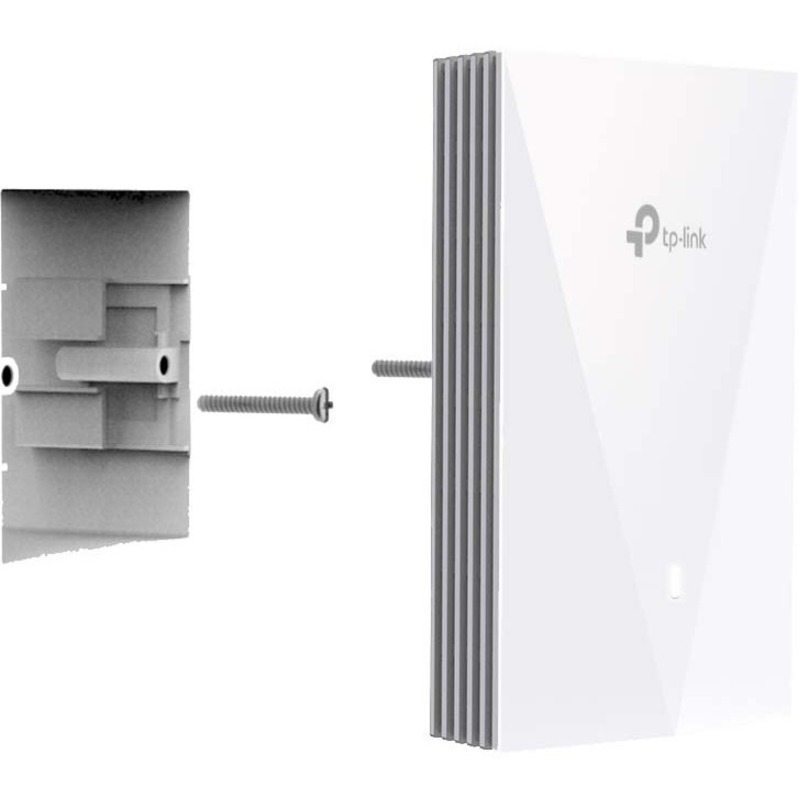

Quick, Simplified Installation

Compatible with 86 mm & EU & US standard junction box

Dedicated Complete, Private WiFi Network in Each Room | Hospitality

Room-by-room connection with elegant appearance

Dormitory

Stable wireless and wired connections

Apartment

Private and secure network access for every family

Villa

Whole-home WiFi coverage with seamless roaming

Meeting Room

Faster streaming, downloading, video conferencing, and everything to satisfy your needs

Lightning-Fast AX3000 WiFi 6 Speeds

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.

Better User Experience with High-Performance WiFi 6 Connectivity

The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.

More than Speed, Security Matters

Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

Secure Guest Network with Up to 16 SSIDs

Guest networks provide enhanced security. Different SSIDs also enable flexible access management.

Boost Business with Facebook WiFi and SMS Login

Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page.

General Information
Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	EAP655-WALL
Manufacturer Website Address	http://www.tp-link.com/us
Brand Name	TP-Link
Product Model	EAP655-WALL
Product Name	EAP655-WALL AX3000 Wall Plate WiFi 6 Access Point
Product Type	Wireless Access Point
Technical Information
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
Network Band	Dual Band
Frequency Band	5 GHz
Frequency Band	2.40 GHz
Total Number of Antennas	2
Indoor/Outdoor	Outdoor
Wireless Transmission Speed	2.91 Gbit/s
Beamforming Technology	Yes
Data Encryption	Yes
Encryption Standard	WPA3-PSK
Encryption Standard	WPA2-PSK
Encryption Standard	WPA3-ENT
Encryption Standard	WPA-PSK
Encryption Standard	WPA2-ENT
Encryption Standard	WPA-ENT
Interfaces/Ports
Ethernet Technology	Gigabit Ethernet
Number of Network (RJ-45) Ports	4
PoE (RJ-45) Port	Yes
PoE PD Port	Yes
Power Description
Power Consumption	12.60 W
Physical Characteristics
Form Factor	Wall Plate
Height	5.6"
Width	3.4"
Depth	1.7"
Miscellaneous
Package Contents	EAP655-WALL AX3000 Wall Plate WiFi 6 Access Point Installation Guide Mounting Kits
Additional Information	Legal Disclaimer: Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	5 Year
