ATEN
ATEN VE814AR-ATA HDMI HDBASET VE814A RECEIVER W/DUAL OUTPUTS W/O ETHERNET PORT
Mfg Part Number: VE814AR-ATA , Item #: 4763762
, PO and Wire.

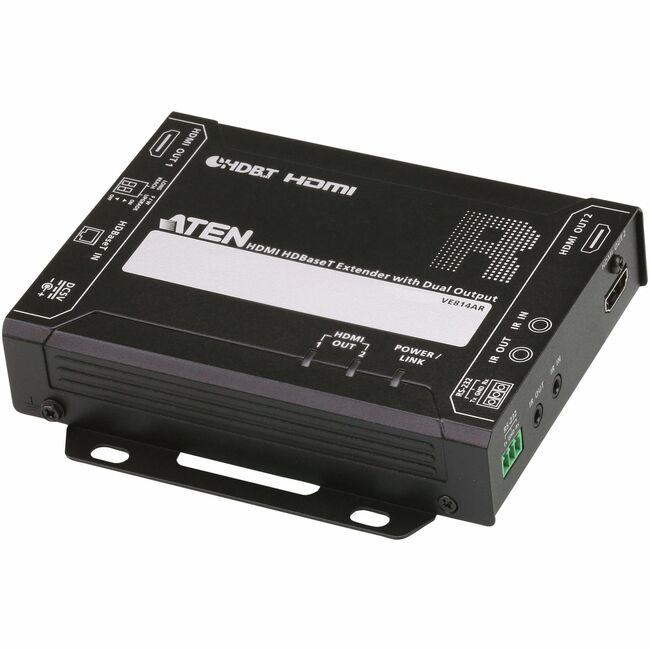

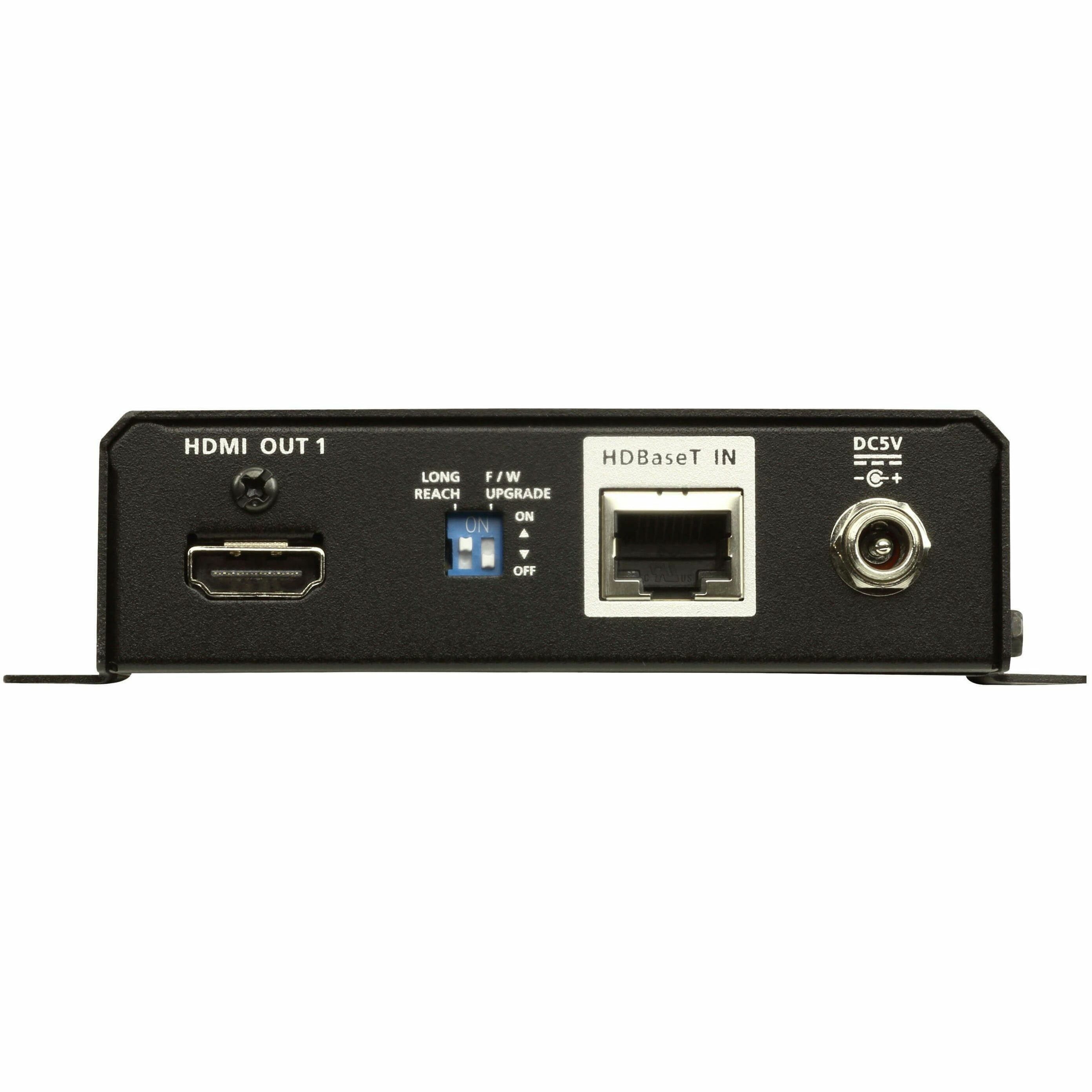

ATEN VE814AR is an HDBaseT Video Receiver that is capable of receiving HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN2L-2910 Cat 6 cable.This HDCP 2.2-compliant receiver meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

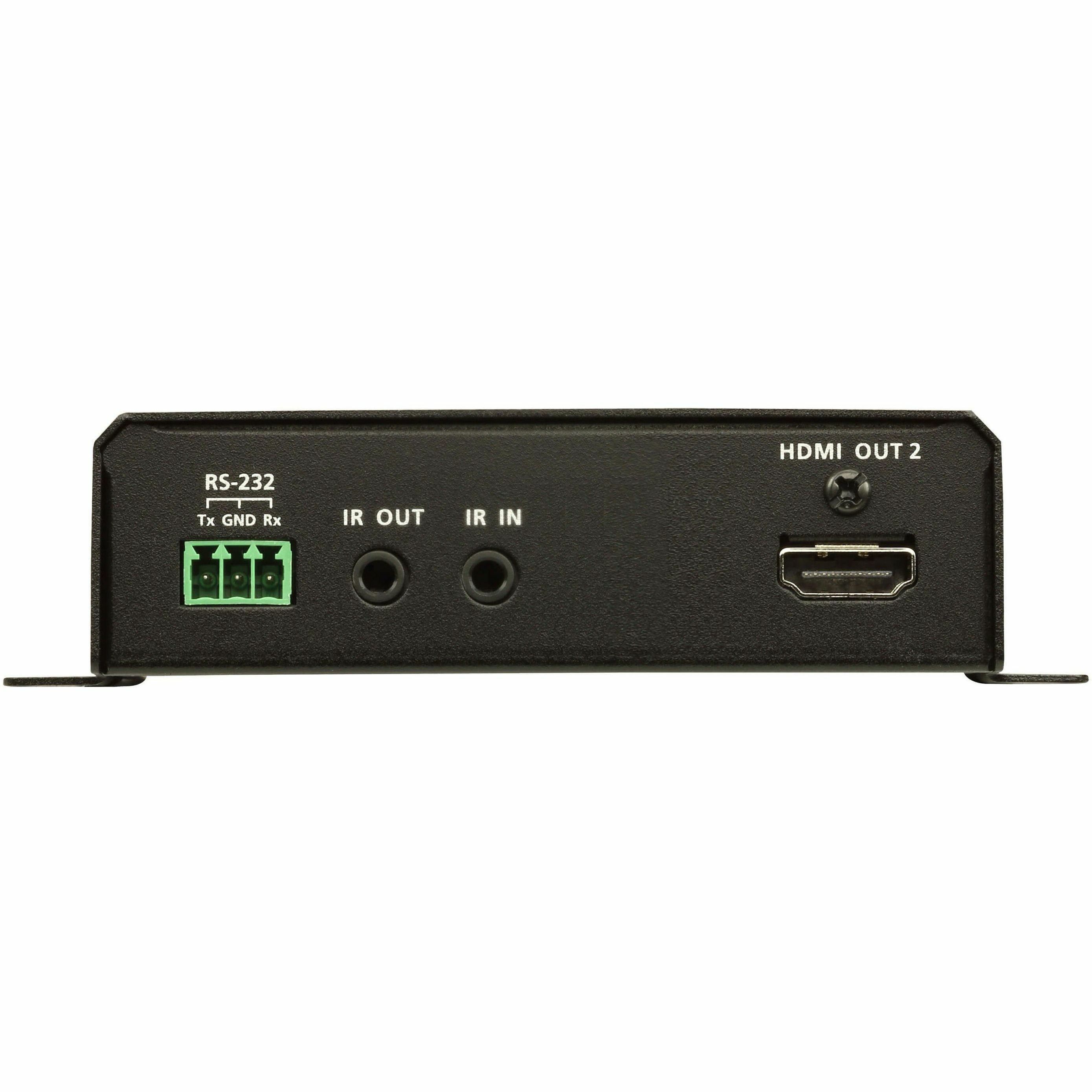

The VE814AR supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AR is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
| General Information | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE814ARATA |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Model | VE814AR-ATA |
| Product Name | HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A) |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 492.13 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Outputs | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a |
| Physical Characteristics | |
| Receiver Height | 1.14" |
| Receiver Width | 3.98" |
| Receiver Depth | 5.35" |
| Form Factor | Rack-mountable |
| Receiver Weight (Approximate) | 1.04 lb |
| Miscellaneous | |
| Package Contents |
|
