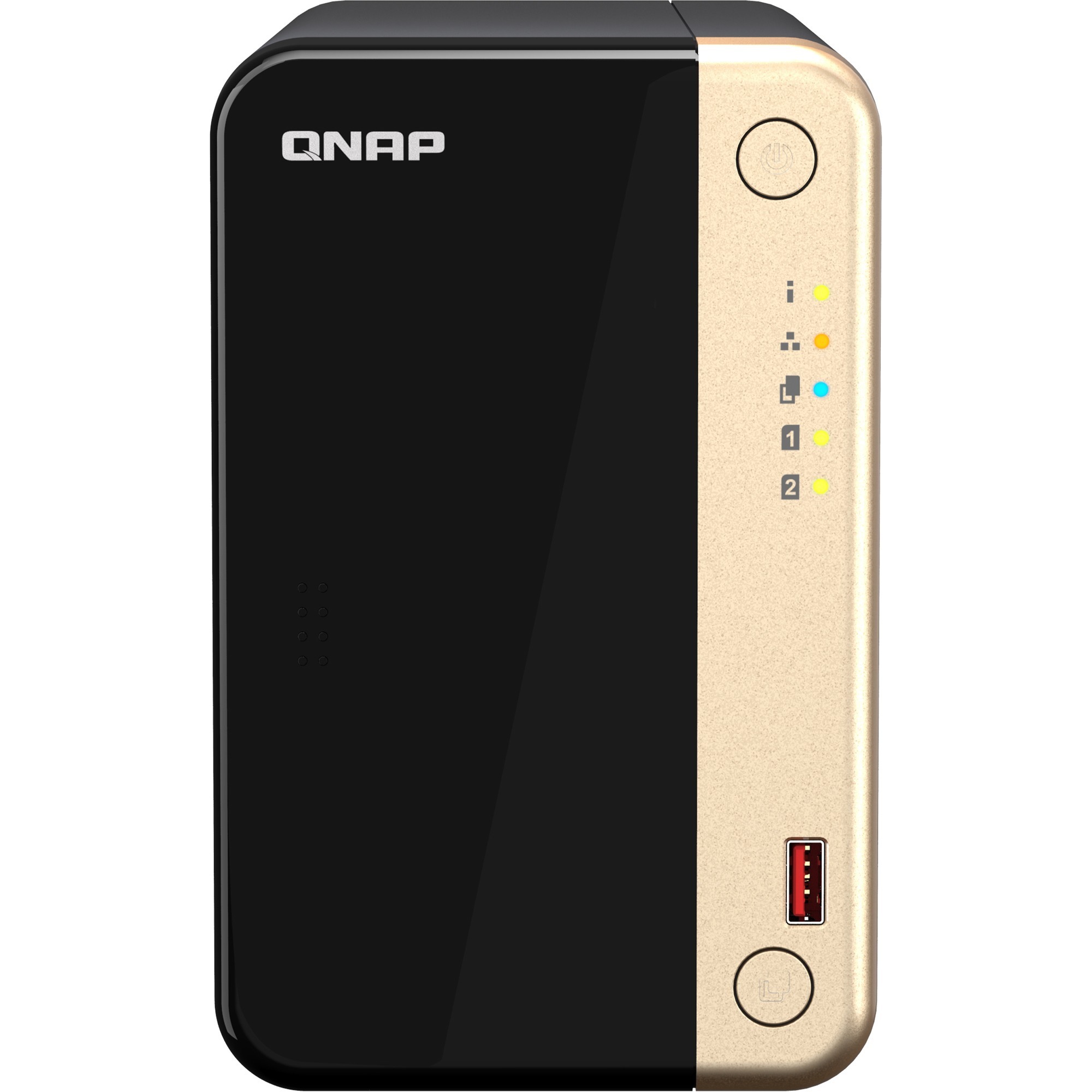

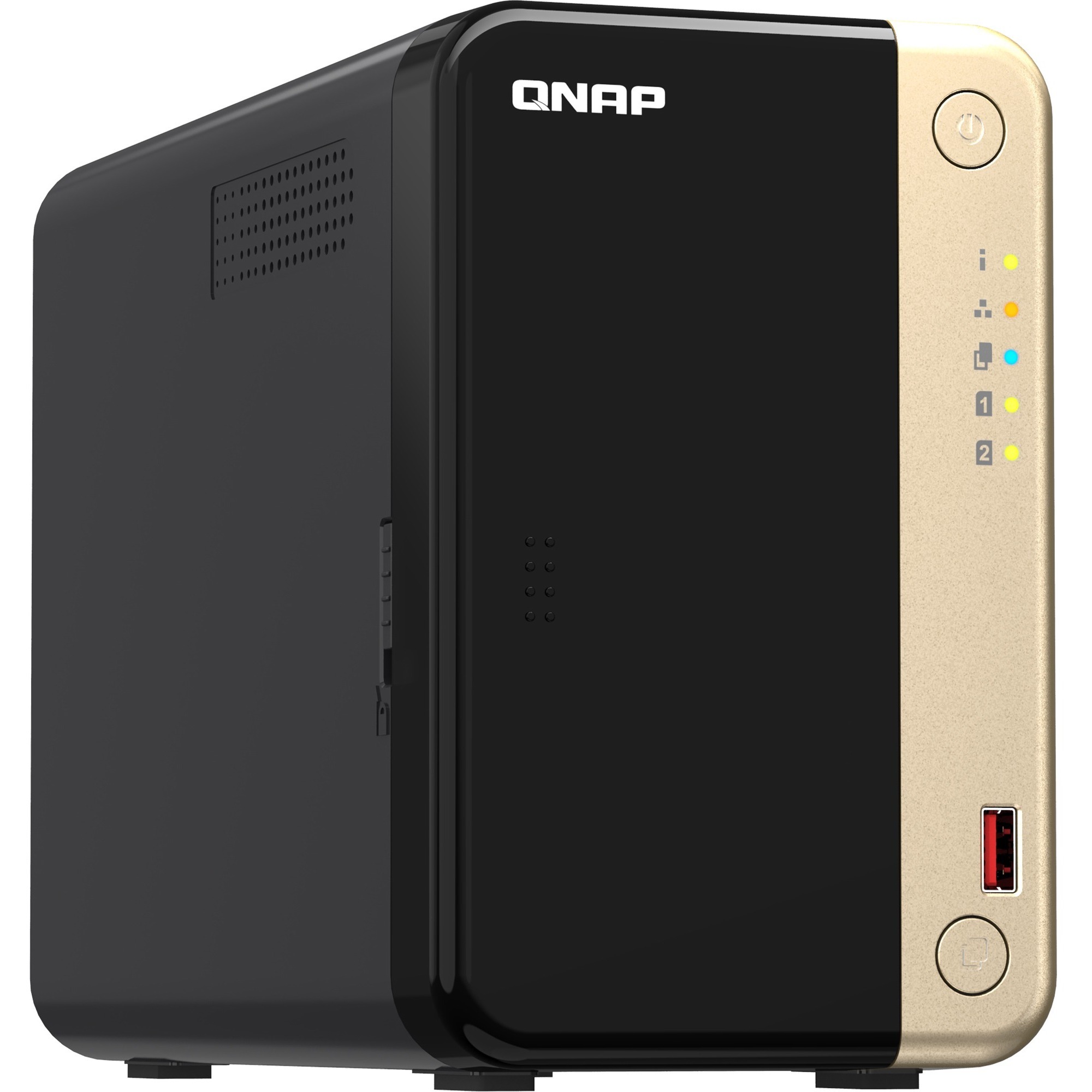

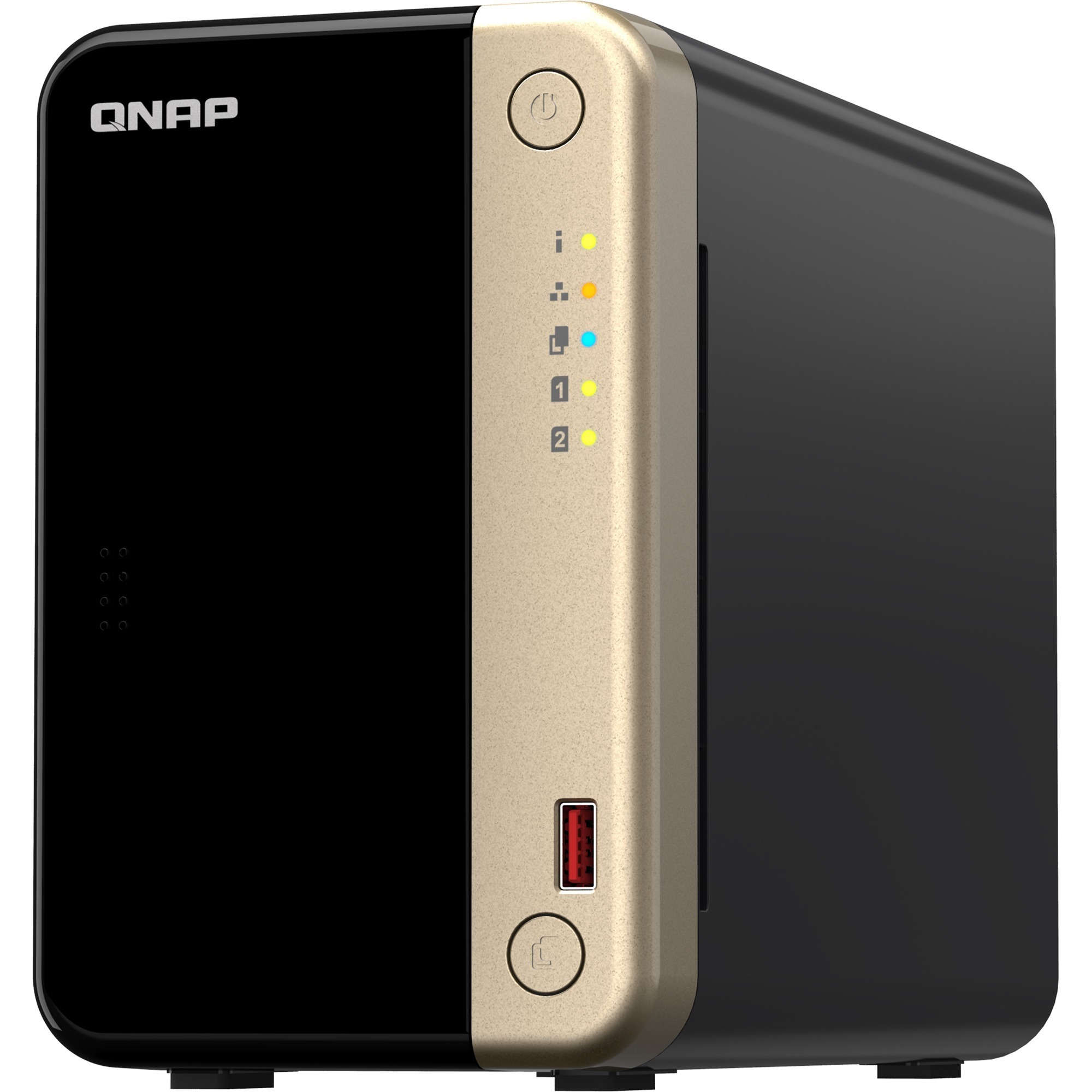

QNAP TS-264-8G-US INTEL 4C/4T 2.9GHZ WITH 8GB DDR4 2X2.5GBE 2XM.2 2280

TS-264 | Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and virtualization applications

Powered by an Intel® Celeron® N5095, quad-core processor (burst up to 2.9GHz), the TS-264 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-264 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-264 comes with 8 GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

2.5GbE port

Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

M.2 SSD caching

Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

PCIe expandability

Install a PCIe Gen3 x2 card to expand the core functionality of the TS-264, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

License-free virtualized environment

Host multiple containerized apps to run a wide range of applications and services.

Drives Auto-Tiering

Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

4K HDMI

4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.

Quad-core high performance and up to 8 GB RAM

The TS-264 is powered by an Intel Celeron N5095 quad-core processor and supports up to 8 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Accelerate AI-powered image recognition and caching with TPU and PCIe expansion

The TS-264 has two M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage

The TS-264 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-264 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.

General Information
Manufacturer	QNAP Systems
Manufacturer Part Number	TS-264-8G-US
Manufacturer Website Address	http://www.qnap.com
Brand Name	QNAP
Product Line	Turbo NAS
Product Series	TS-x62
Product Model	TS-264-8G
Product Name	Turbo NAS TS-264-8G SAN/NAS Storage System
Product Type	SAN/NAS Storage System
Storage
Number of Hard Drives Supported	2
Number of Hard Drives Installed	0
Number of Solid State Drive Supported	2
Number of Solid State Drive Installed	0
Flash Memory Capacity	4 GB
Processor & Chipset
Number of Processors Installed	1
Processor Manufacturer	Intel
Processor Type	Celeron
Processor Model	N5095
Processor Core	Quad-core (4 Core)
Memory
Standard Memory	8 GB
Memory Technology	DDR4 SDRAM
Network & Communication
Ethernet Technology	2.5 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays	2
Number of 2.5"/3.5" Bays	2
Total Number of Expansion Slots	1.0
Expansion Slot Type	PCI Express 3.0 x2
Controllers
Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0, 1, JBOD

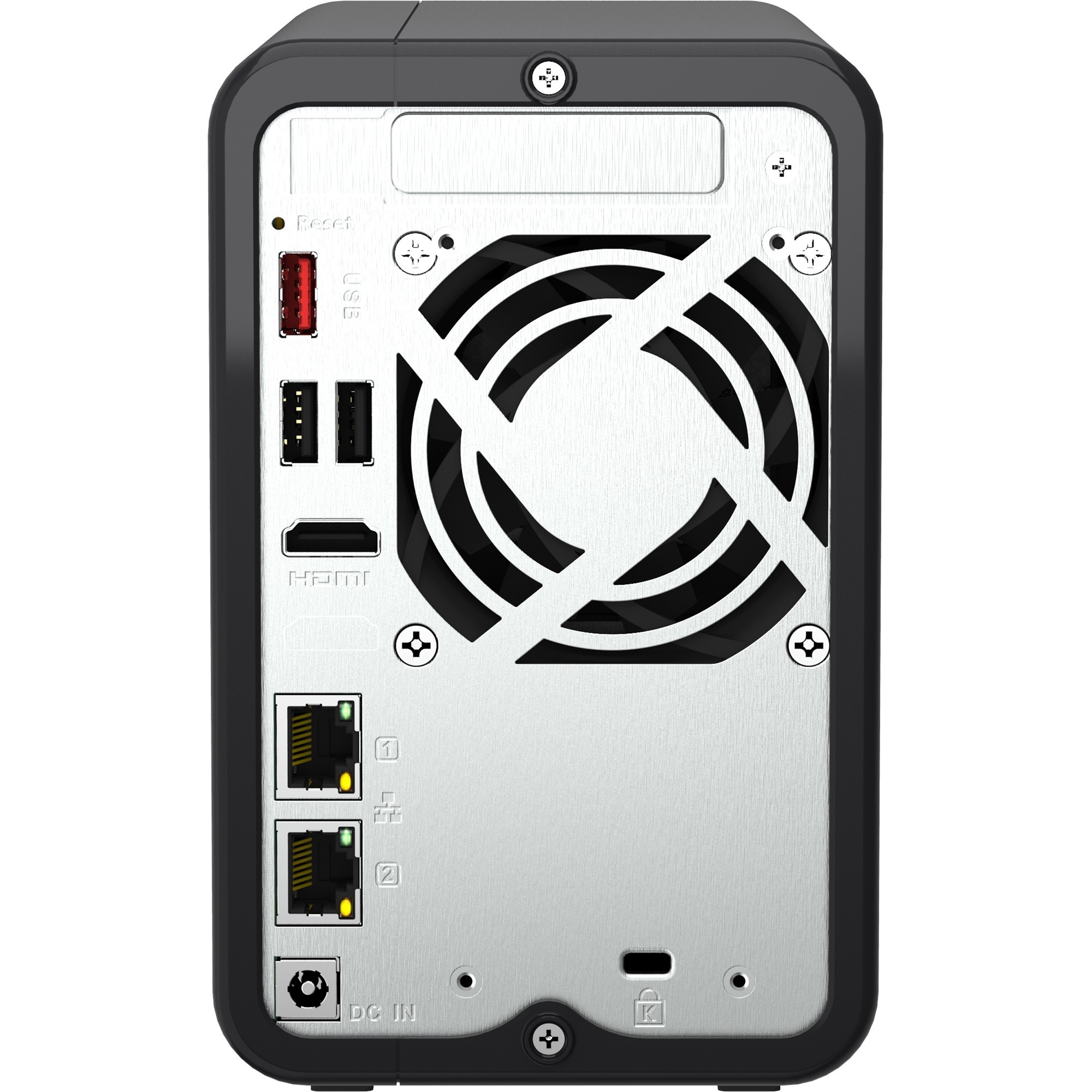

Interfaces/Ports
HDMI	Yes
Total Number of USB Ports	4
Number of USB 2.0 Ports	2
Number of USB 3.2 Gen 2 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
Software
Operating System	QTS 5.0.1
Management & Protocols
Protocols	SSH
Protocols	Telnet
Protocols	FTPS
Protocols	IPv4
Protocols	SNMPv3
Protocols	LDAP
Protocols	SFTP
Protocols	iSCSI
Protocols	FTP
Protocols	DHCP
Protocols	IPv6
Protocols	NFSv4
Protocols	FXP
Protocols	HTTP
Protocols	PPTP
Protocols	SSL/TLS
Protocols	SNMP
Protocols	DDNS
Protocols	L2TP
Protocols	SNMPv2
Protocols	DNS
Protocols	WEBDAV
Protocols	HTTPS
Protocols	TFTP
Protocols	NFSv3
Protocols	AFP
Protocols	CIFS/SMB
Power Description
Maximum Power Supply Wattage	65 W
Physical Characteristics
Height	6.6"
Width	4.1"
Depth	8.9"
Form Factor	Tower
Weight (Approximate)	3.42 lb
Miscellaneous
Package Contents	Turbo NAS TS-264-8G SAN/NAS Storage System 1 x Ethernet Cable 1 x Power Cord 36 x Flat head screw (for 3.5" HDD) 36 x Flat head screw (for 2.5" HDD) AC Adapter
Warranty
Limited Warranty	3 Year
Additional Warranty Information	The TS-264 is backed by a 3-year warranty at no additional cost.
