QNAP
QNAP QSW-M2106-4C-US 6X2.5GBE 1G/100M PORTS & 4X10G SFP NBASE-T
Mfg Part Number: QSW-M2106-4C-US , Item #: 4761367
, PO and Wire.

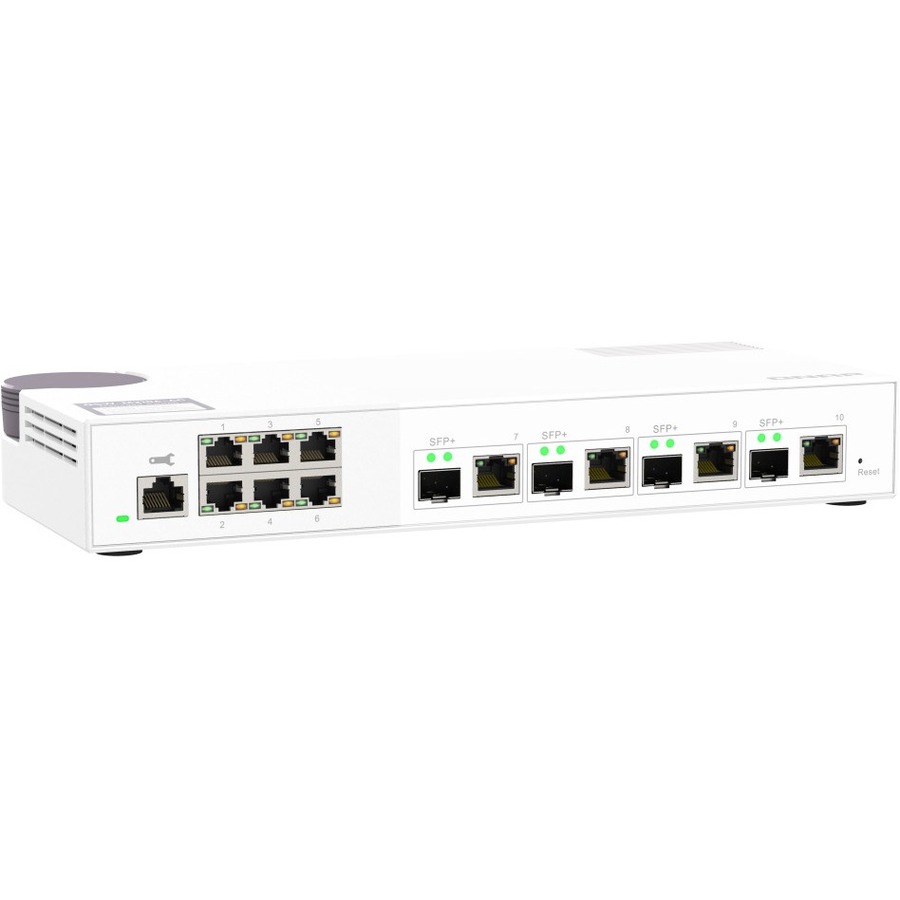

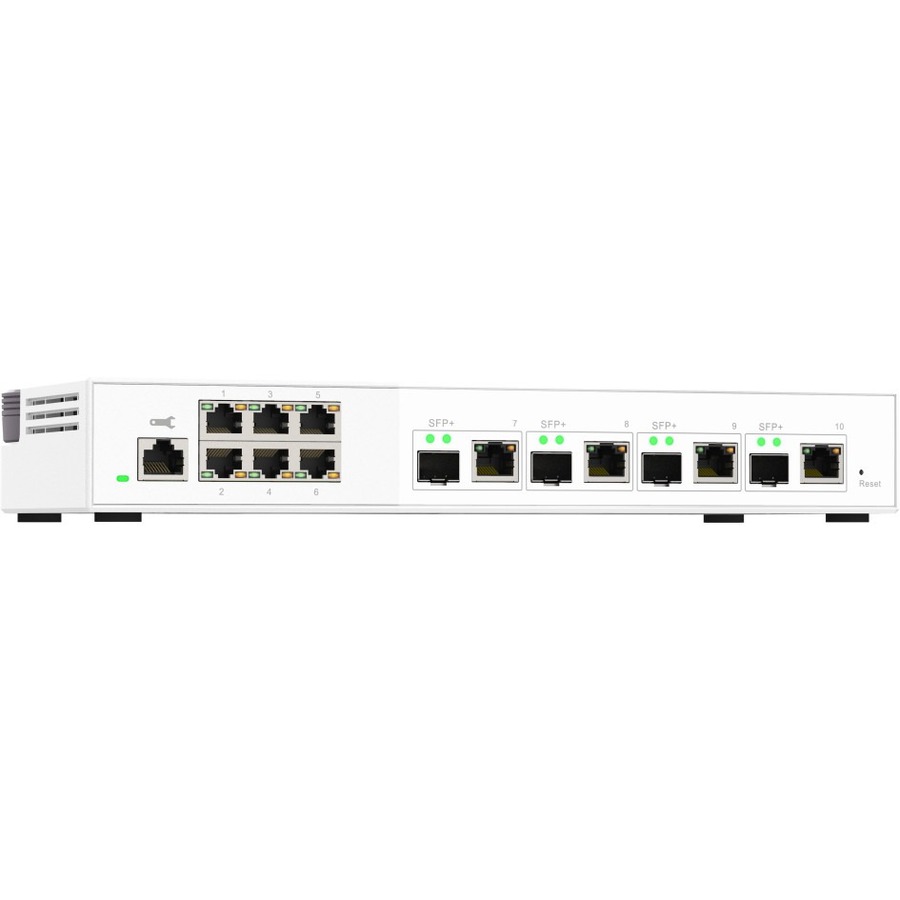

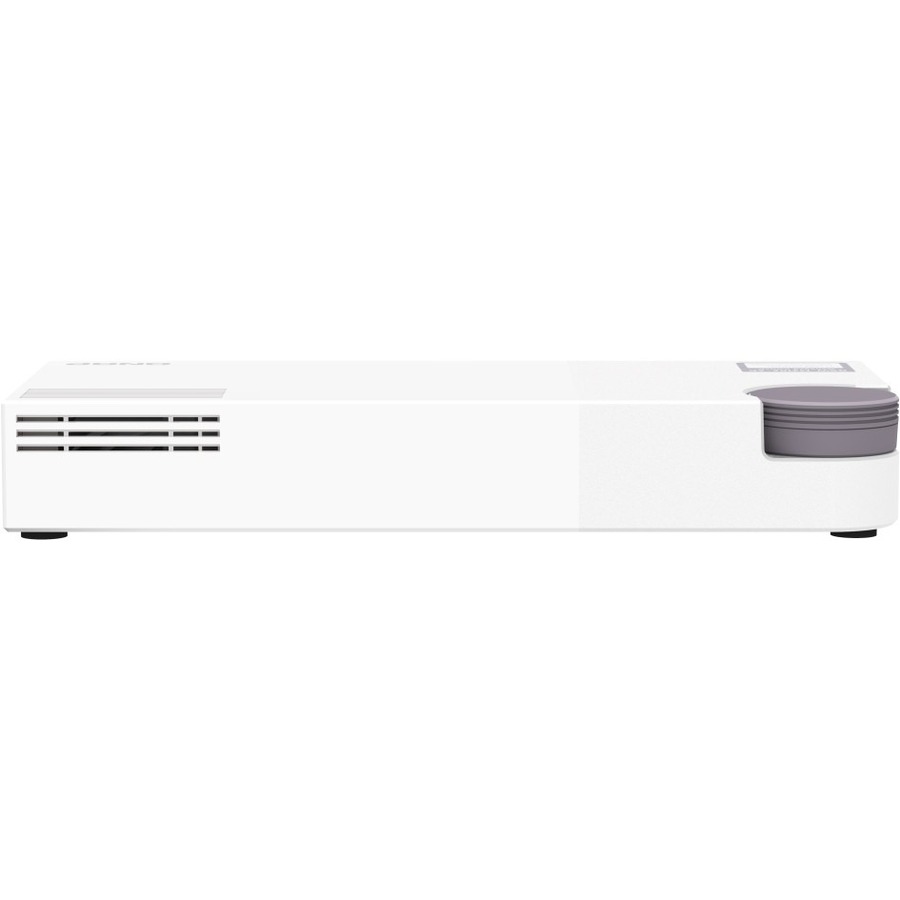

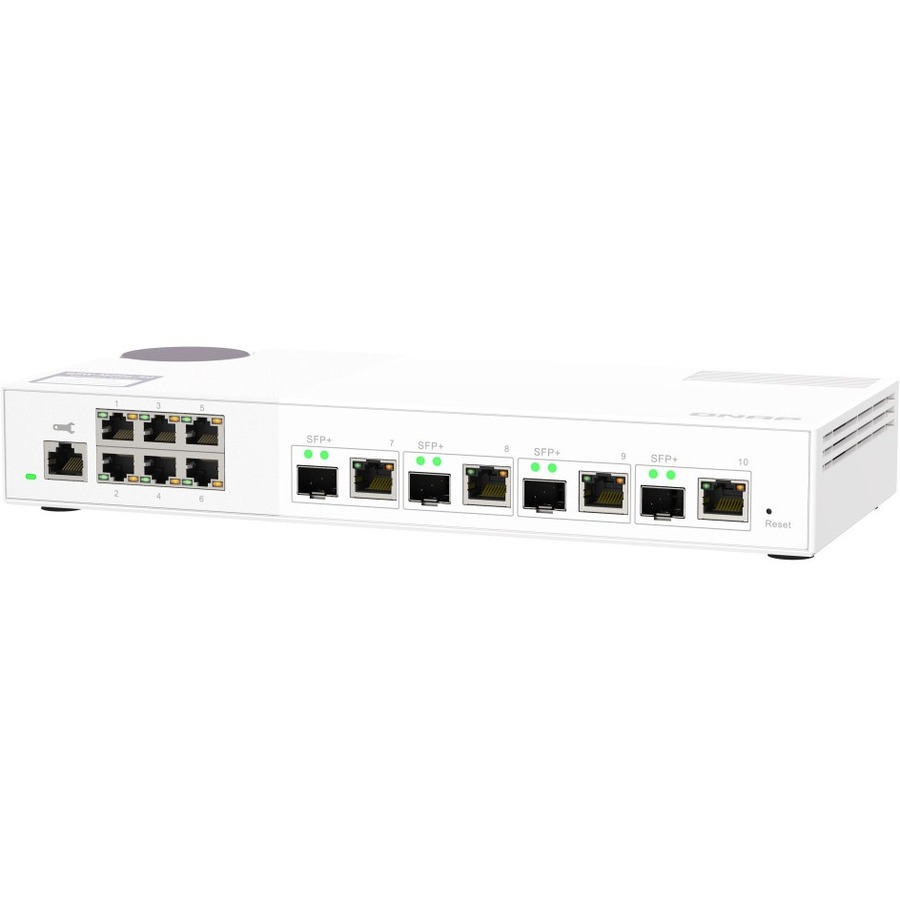

The QSW-M2106-4C is a Layer 2 Web Managed Switch with four 10GbE SFP+/RJ45 combo ports and six 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2106-4C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. With high performance, user-friendly management, and a desktop form factor, the QSW-M2106-4C enables cost-effective upgrading to 2.5GbE or 10GbE networking while optimizing bandwidth and ensuring secure network maintenance.
10GbE connectivity
Includes four 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) for high-speed networks.
2.5GbE connectivity
Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.
User-friendly management interface
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
RSTP
One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
Online firmware update
QSS can be updated with just one click, helping IT staff ensure their network security.
| General Information | |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | QSW-M2106-4C-US |
| Manufacturer Website Address | http://www.qnap.com |
| Brand Name | QNAP |
| Product Model | QSW-M2106-4C |
| Product Name | 10GbE and 2.5GbE Layer 2 Web Managed Switch for SMB Network Deployment |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 6 |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 6 x 2.5 Gigabit Ethernet Port |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Combo Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T |
| Network Technology | 2.5GBase-T |
| Network Technology | 10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.3ae |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.1ad |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source | Power Adapter |
| Power Consumption | 36 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.7" |
| Width | 11.4" |
| Depth | 5" |
| Weight (Approximate) | 5.60 lb |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 2 Year |
