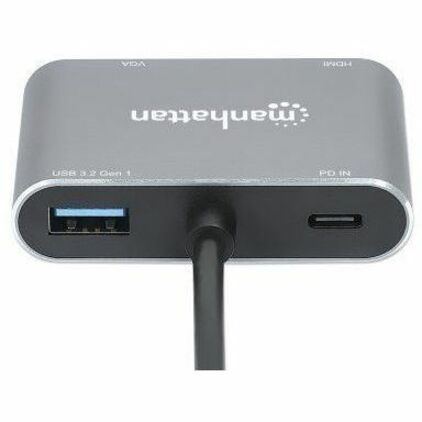

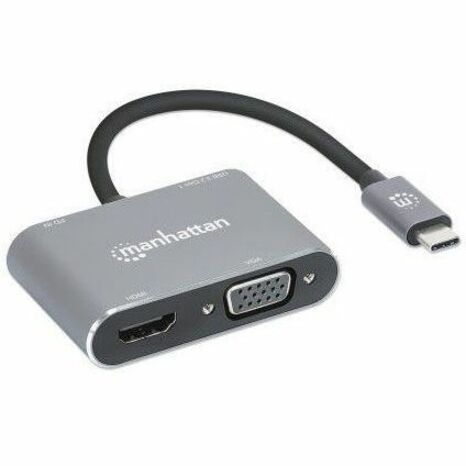

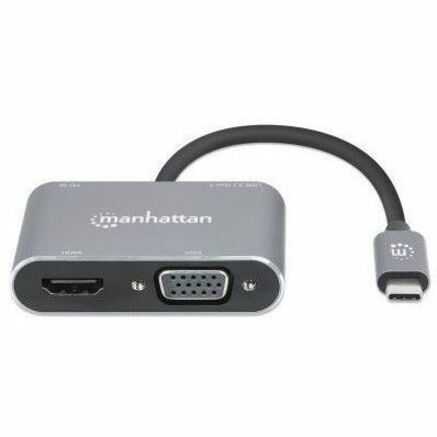

MANHATTAN 130691 USB-C TO HDMI/VGA 4-IN-1 DOCKING CONVERTER WITH POWER DELIVERY

USB-C to HDMI and VGA Adapter to connect a laptop, MacBook^® or PC to a dual-display setup - including USB-A peripheral and PD charging port

The USB-C to HDMI & VGA 4-in-1 Docking Converter with Power Delivery establishes a fast, simple and convenient link between newer USB Type-C equipped media sources (laptop, PC, MacBook^®, Chromebook™, computer, tablet, etc.) and existing HDMI and VGA displays (monitors, TVs and projectors). You'll enjoy resolutions up to 4K@30Hz on the HDMI connection, up to 1080p@60Hz on the VGA connection, or up to 1080p@60Hz on each display of a dual-display setup. Create a mini-workstation by adding any USB 3.2 Gen 1 (formerly USB 3.0) peripheral such as a mouse, keyboard, hub, external memory device and more with the integrated USB-A port. This multiport Docking Converter is easy and quick to install. No complicated configuration or setup is required to enhance the functionality of your USB-C device. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and orderly.

Up to 87 W charging power with USB-C Power Delivery (PD)

The included USB-C PD port lets you charge your notebook with power up to 87 W while simultaneously charging your other mobile devices, such as smartphones or tablets, through the USB-A port. The Power Delivery function also provides faster charging than standard chargers since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.

Take your phone to the big screen

Connect any Android 9 and later smartphone that supports video output over USB-C DP Alt Mode to enjoy your apps and media even more. Watch a video on your monitor or flip through the slides of your presentation - all from your phone.

A Multiport Adapter that's made to go where you go

The very compact aluminum housing makes this USB-C to HDMI & VGA Docking Converter the perfect travel companion. With a footprint of only 62 x 40 x 15 mm (2.44 x 1.73 x 0.59 in.), it's small enough to fit in an outer notebook bag pocket, so you can create a mini-workstation for your laptop wherever you're going.

General Information
Manufacturer	IC INTRACOM
Manufacturer Part Number	130691
Manufacturer Website Address	http://www.icintracom.com
Brand Name	Manhattan
Product Name	USB-C to HDMI & VGA 4-in-1 Docking Converter with Power Delivery
Product Type	Docking Station
Technical Information
Connectivity Technology	Wired
Device Supported	TV/Monitor/Projector/Notebook/Keyboard/Mouse/Smartphone/Tablet/Desktop PC
Number of Displays Supported	2
Screen Mode Supported	4K
Screen Mode Supported	Full HD
Supported Resolutions	3840 x 2160
Supported Resolutions	1920 x 1080
Maximum Data Transfer Rate	640 MB/s
Interfaces/Ports
Host Interface	USB Type C
Total Number of USB Ports	3
Number of USB 3.2 Gen 1 Type-A Ports	1
Number of USB Type-A Ports	1
Number of USB Type-C Ports	2
USB Type-A	Yes
USB Type-C	Yes
USB Type-C Detail	1 x USB-C 24-pin, male, 1 x USB-C 24-pin, female
VGA	Yes
DisplayPort	Yes
Number of HDMI Ports	1
HDMI	Yes
HDMI Version	1.4
USB Power Delivery	87W
Software
Operating System Supported	iPadOS
Operating System Supported	ChromeOS
Operating System Supported	Linux
Operating System Supported	Windows 10
Operating System Supported	Windows 11
Operating System Supported	Windows 8.1
Operating System Supported	Windows 7
Operating System Supported	macOS
Operating System Supported	Android
Physical Characteristics
Color Family	Gray
Product Color	Space Gray
Height	0.59"
Width	1.57"
Length	2.4"
Weight (Approximate)	1.48 oz
Miscellaneous
Package Contents	USB-C to HDMI & VGA 4-in-1 Docking Converter with Power Delivery Instructions
Compatibility	Compatible with all USB-C DP-Alt-Mode-supported desktops, notebooks and tablets including Apple MacBook, Chromebook, Pixel and more
Brand Compatibility	Apple
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
