CODE CORP
CODE CORP CR1500-K102-C501 8-FT COILED RS232 CABLE
Mfg Part Number: CR1500-K102-C501 , Item #: 4757260
, PO and Wire.
The Code Reader™ 1500 (CR1500) is a compact, rugged, tethered barcode reader that features a high-performance scan engine,patented dual-fieldoptical platform, and intuitive targeting that makes reading 1D, 2D, and postal barcodes extremely fast and reliable. Initially built forhealthcareandindustrialenvironments, this reader is ready to thrive in other environments just as demanding like retail.

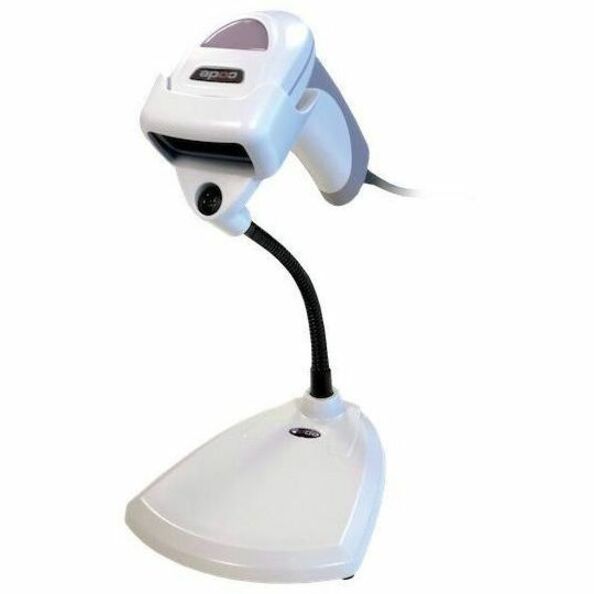

The CR1500 (healthcare version in light grey) is built with aCodeShield® Level 3 disinfectant-readyhousing. It is PVC-free, andIP54rated, protecting the components of the CR1500 against harsh chemical cleaning agents, dust, and water ingress. The robust housing is even built to withstand multiple drops to concrete.
The CR1500 (industrial/retail version in dark gray) is built to overcome the real-world challenges that present in industrial operations. The CR1500 can read poor-quality codes printed on varied surfaces, laser-etched direct part marks during the manufacturing process, or barcodes as small as 2 mils (DPM decoding available via additional licensing).
No matter your system requirements, Code's uniqueJavaScriptplatform provides unlimited customization options to meet your application needs. The compact yet durable 2D scanner has a proprietary microprocessor designed for super-fast image processing and best-in-class decoding. The CR1500 is the barcode reader of choice for all your challenging data collection needs.
All purchases are done through one of our many sales partner companies. Code is happy to help consult with you to determine the best partner for your specific needs, project detail and industry
| General Information | |
| Manufacturer | Code Corporation |
| Manufacturer Part Number | CR1500-K102-C501 |
| Manufacturer Website Address | http://www.codecorp.com |
| Brand Name | Code |
| Product Line | Code Reader 1500 |
| Product Model | CR1500 |
| Product Name | CR1500 Code Reader 1500 |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Barcode Symbology Supported | 1D: BC412, Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Stacked 1D: Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 2D: Aztec Code, Data Matrix, Data Matrix Rectangular Extension, Grid Matrix, Han Xin, Maxicode, Micro QR Code, QR Code, QR Model 1 Proprietary 2D: GoCode® (optional license required) Postal codes: Australian Post, Canada Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Post-Net, Planet, UK Royal Mail, UPU ID-tags |
| Image Sensor Type | CMOS |
| Scan Pattern | Area |
| Scanner Range | Standard Range |
| Scanning Distance | 12.90" |
| Features | Ergonomic Design |
| Features | Data Parser |
| Cable Type Included | Serial |
| Field of View (Horizontal) | 34° |
| Field of View (Vertical) | 50° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 65° |
| Image Formats | PGM |
| Image Formats | JPEG |
| Maximum Ambient Light | 96890 lux |
| Drop Specification | Withstands multiple drops of 6' (1.8 m) to concrete |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil |
| Maximum Element Resolution (Code 39) | 7.5 mil |
| Minimum Element Resolution (DataMatrix) | 5 mil |
| Maximum Element Resolution (DataMatrix) | 20.8 mil |
| Direct Part Marking (DPM) Decoding | Yes |
| Image Sensor Resolution | 1280 x 960 |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Host Interface | Keyboard Wedge |
| Host Interface | Serial |
| Power Description | |
| Input Current | 75 mA |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 131°F (55°C) |
| Storage Temperature | -22°F (-30°C) to 150°F (65.6°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Gray |
| Product Color | Light Gray |
| Product Material | Plastic |
| Durability | Water Resistant |
| Durability | Dust Resistant |
| Height | 5.2" |
| Width | 2" |
| Depth | 3" |
| Weight (Approximate) | 4.10 oz |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP54 |
| Application/Usage | Industrial |
| Application/Usage | Healthcare |
| Application/Usage | Retail |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
