CODE CORP

CODE CORP CR5210-200-C500 6-FT STRAIGHT USB CABLE

Mfg Part Number:  CR5210-200-C500
Image may not reflect the actual item.
Price: $346.07 + Free Shipping
Quantity:
More to Come
Last Updated: Jun 16, 2026
No Sales Tax except these states
, PO and Wire.

Unparalleled reading perfomance for your POS and ID scanning workflows.

Barcode reading needs to be extremely easy, especially at the point of sale. A positive consumer experience is paramount to drive repeat business, and one of the drivers of a good buying experience is speed at checkout. The CR5200 aids in checkout speed by providing fast reading of a variety of barcodes on a variety of media, including consumer packaged goods, driver licenses, loyalty cards, receipts, and even dim smartphone screens. All of this speed comes with hands-free operation so cashiers can quickly present items to the scanner with both hands, in any orientation. No need to lose efficiency picking up the reader to point and shoot...the CR5200 can stay on the counter and still facilitate efficiency at point of sale.

Despite all of this power, the CR5200 has a small footprint to leave space for sale items that might lead to last minute purchases and increased revenue for retailers or quick service restaurants. As an added customer engagement tool, the CR5200 can parse driver license data. Easily capture consumer information for credit applications, loyalty registration, or marketing lists without the need for additional hardware.

Small but powerful, the CR5200 delivers leading performance to keep businesses and their consumers happy.

The CR5200 can expedite your workflow and give your team more confidence when it comes to checkout

More for Your Application

  • High-speed, omnidirectional reading of 1D and 2D barcode symbologies
  • Presentation reader with easy hands-free operation and enhanced motion detection
  • User feedback with LED and audible tone
  • Compact footprint with adjustable reading direction

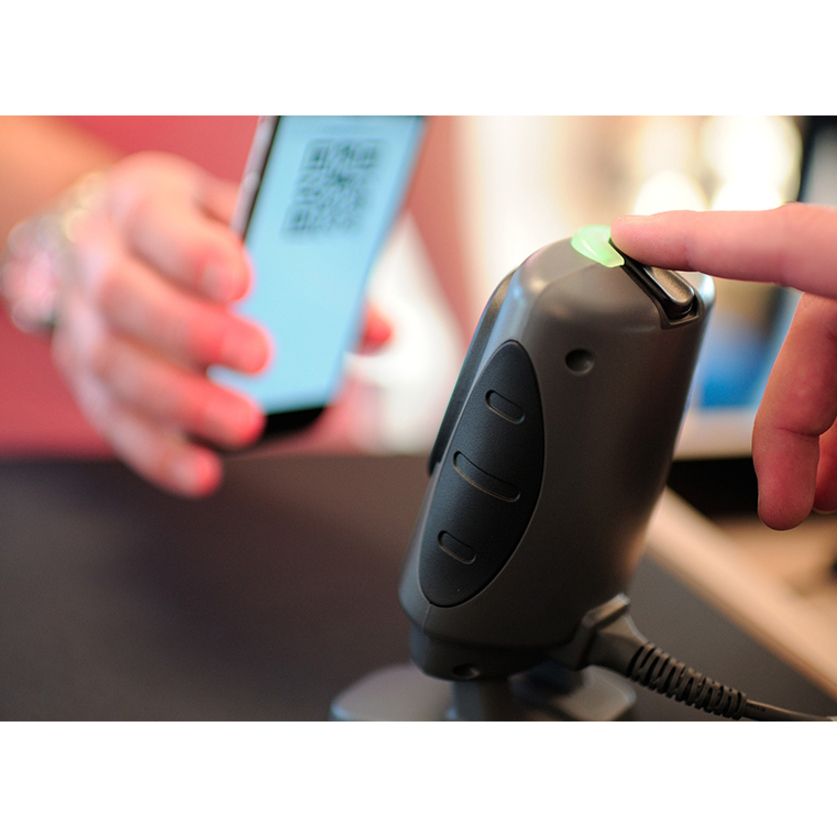

  • Quickly reads barcodes on mobile device screens
  • Data parsing/formatting eases system compatibility

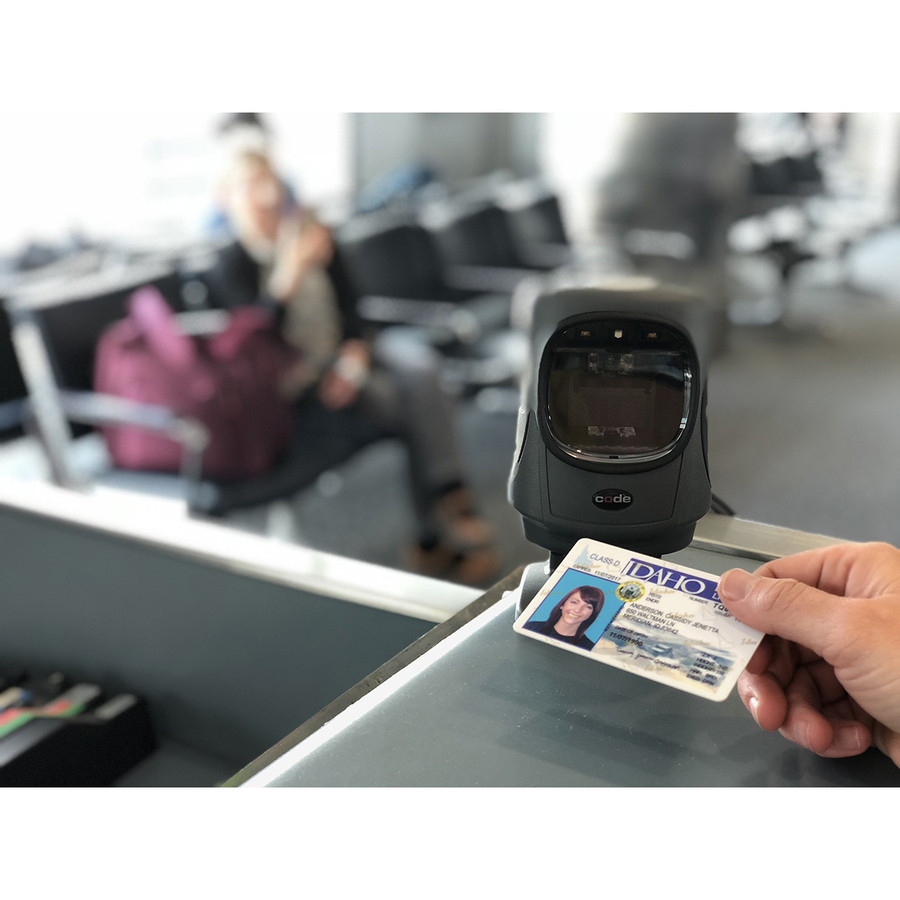

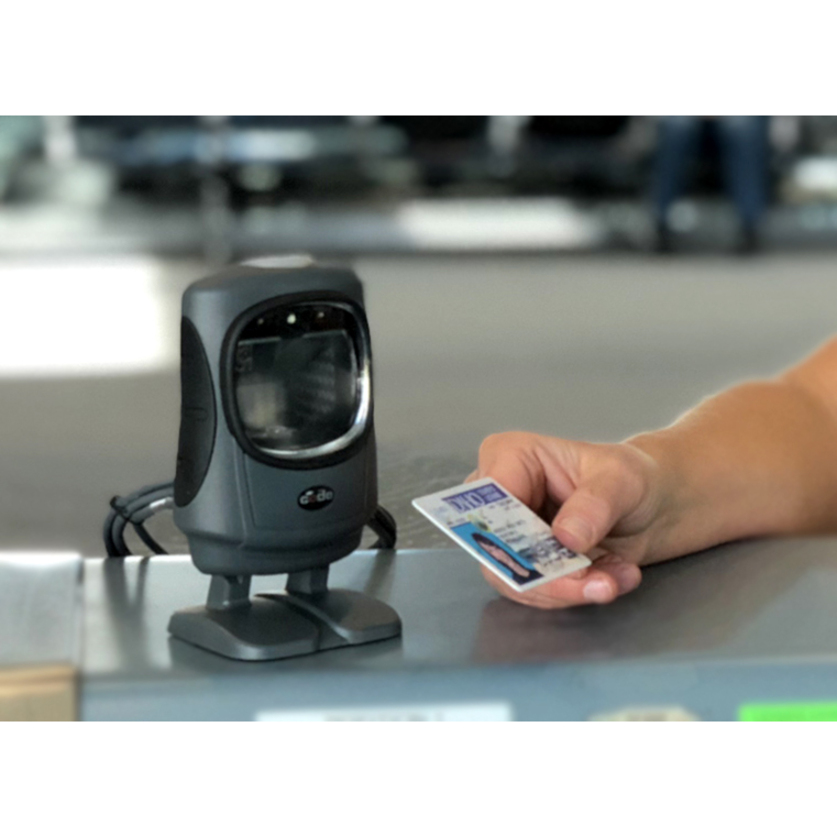

  • Customizable driver license data formatting for loyalty and credit applications
  • Extended read ranges
  • Optional age verification
  • Efficient power consumption
Main Specification
General Information
Manufacturer Code Corporation
Manufacturer Part Number CR5210-200-C500
Manufacturer Website Address http://www.codecorp.com
Brand Name Code
Product Line Code Reader
Product Series CR5000
Product Model CR5200

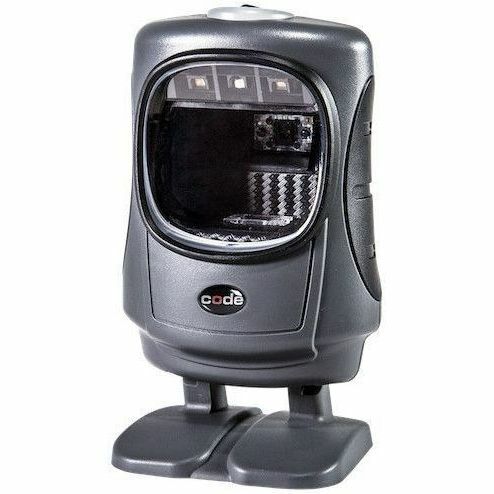

Product Name Code Reader CR5210 Barcode Scanner Kit
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported

1D:

  • BC412, Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Stacked 1D: Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417

2D:

  • Aztec Code, Data Matrix, Data Matrix Rectangular Extension, Grid Matrix, Han Xin, Maxicode, Micro QR Code, QR Code, QR Model 1 Proprietary

2D:

  • GoCode (Optional License Required)
Image Sensor Type Imager
Scan Pattern Omni-directional
Scan Pattern Area
Scanner Range Extended Range
Scanning Distance 8.90"
Features Notification LED
Features Data Parser
Features Data Formatter
Cable Type Included USB
Field of View (Horizontal) 51°
Field of View (Vertical) 39°
Image Formats PGM
Image Formats JPG
Maximum Ambient Light 96890 lux
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 7.5 mil
Minimum Element Resolution (DataMatrix) 5 mil
Maximum Element Resolution (DataMatrix) 20.8 mil
Minimum Element Resolution (PDF417) 5.8 mil
Maximum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 1280 x 960
Interfaces/Ports
Host Interface USB
Host Interface Serial
Environmental Conditions
Operating Temperature -4°F (-20°C) to 131°F (55°C)
Storage Temperature -22°F (-30°C) to 149°F (65°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Hands-free
Color Family Gray
Product Color Dark Gray
Height 6"
Width 3.6"
Depth 2.8"
Weight (Approximate) 11.22 oz
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage Retail
Application/Usage Quick Service Restaurant (QSR)
Application/Usage Picking
Platform Supported iOS
Platform Supported Smartphone
