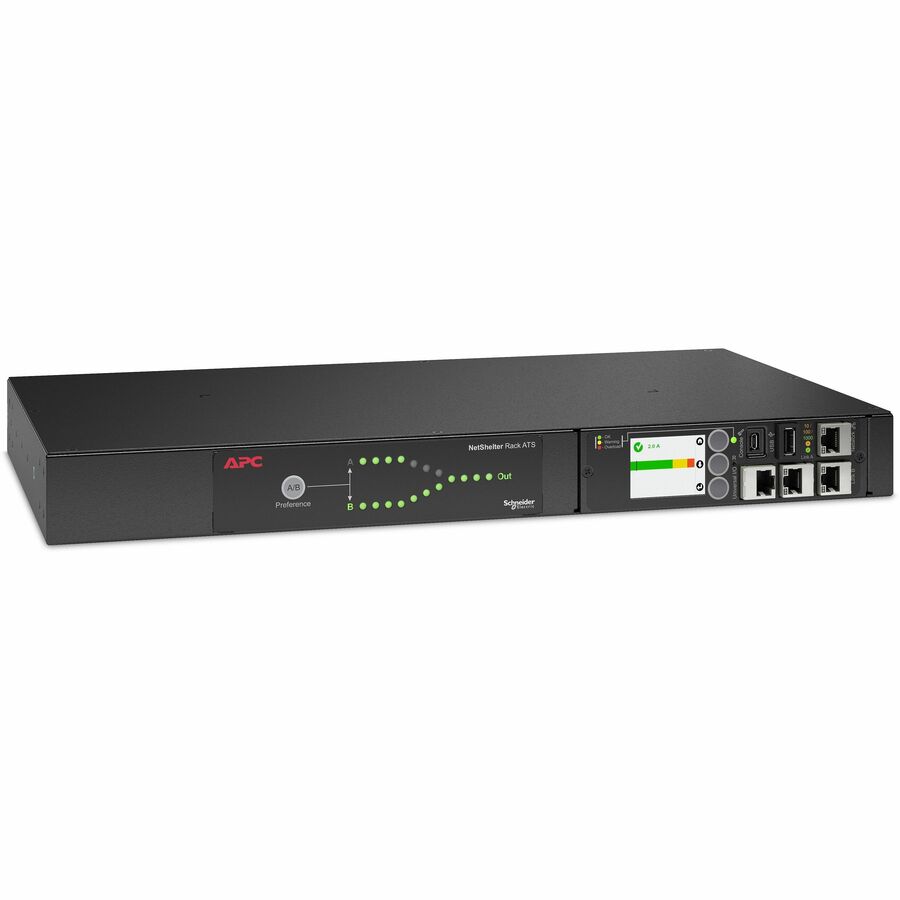

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4430A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4430A is single phase 1U Rack ATS with 20A rated current, 200V/208V rated voltage and 3300VA load capacity. For North America region, the Regulatory Derated Input Current is 16A. It comes with 2 NEMA L6-20P inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP4430A |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC |
| Product Line | NetShelter |
| Product Name | NetShelter Automatic Transfer Switch |
| Product Type | Automatic Transfer Switch |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P 16A (2P + E) |
| Receptacles | 8 x IEC 60320 C13 |
| Receptacles | 1 x IEC 60320 C19 |
| Cord Length | 95.64" |
| Power Description | |
| Input Voltage | 208 V AC |
| Input Voltage | 200 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 200 V AC |
| Current | 20 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Mounting Location | Rear |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Mounting Preference | Horizontal |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17" |
| Depth | 9.3" |
| Weight (Approximate) | 10.65 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | TÜV-C|TÜV-NURTL|VCCI Class A| |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP4430A_ROHS_DECLARATION&p_FileName=AP4430AKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AP4430A_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AP4430A_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712015EN&p_File_name=ENVPEP1712015_EN.pdf |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712015_EN&p_File_name=ENVEOLI1712015_EN.pdf |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| REACH free of SVHC | No |
| SCIP Number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
| Halogen Content Performance | Product contains halogen above thresholds |
| Reach Compliance Date | 12/10/2025 |
| Sustainable Packaging | No |
| Packaging Contains Recycled Cardboard | Yes |
| Minimum Percentage of Recycled Metal Content | 0 |
| Product Contributes Saved Avoided Emissions | No |
| Warranty | |
| Limited Warranty | 2 Year |
