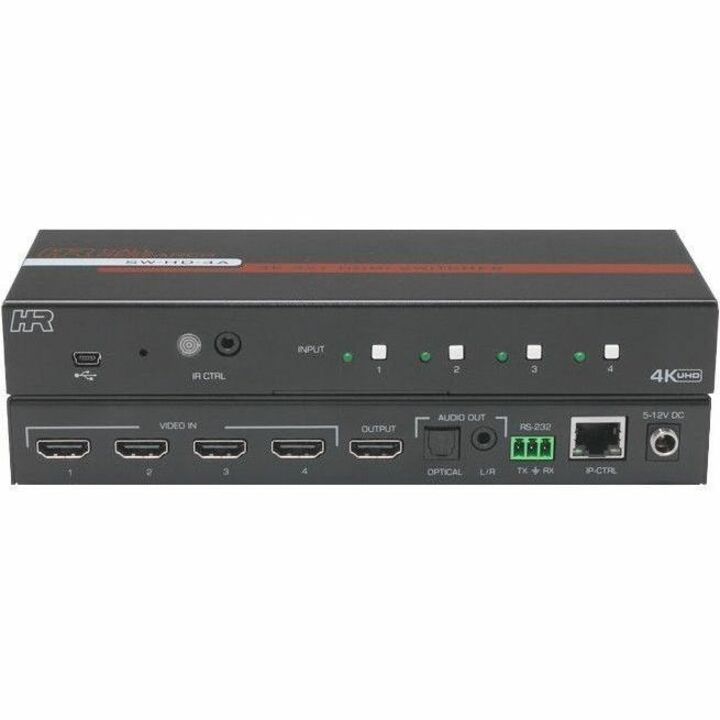

HALL TEC SW-HD-4A 4-PORT HDMI SWITCH W/ CONTROL
Mfg Part Number: SW-HD-4A , Item #: 4750972
, PO and Wire.
The SW-HD-4A is a 4 input HDMI Switch with advanced switching technology enabling fast switching of four HDMI sources to a single HDMI output.
The switcher supports resolutions up to 4K60 with 4:4:4 Chroma Subsampling, 3D, and 36-bit deep color video. Switching can be controlled via front panel buttons, IR remote control, RS-232, Telnet, or a built-in Web GUI.
EDID management is provided, whereby you can select the EDID table for all the inputs from a list of standard EDID's or copy the EDID from the connected display to all inputs. This can be done using the Web GUI or by sending RS-232 commands.
The SW-HD-4A provides a mini-USB port on the front for firmware upgrades. This USB connector also provides 500 mA of power and can be used to power external devices such as Google™ Chromecast or Amazon™ Fire TV.
| General Information | |
| Manufacturer | Hall Technologies |
| Manufacturer Part Number | SW-HD-4A |
| Manufacturer Website Address | http://www.halltechav.com |
| Brand Name | Hall |
| Product Name | 4x1 HDMI Switcher |
| Product Type | Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Number of Displays Supported | 1 |
| Video | |
| Graphics Modes | VGA |
| Graphics Modes | WQXGA |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Height | 8" |
| Width | 3" |
| Depth | 1.2" |
| Weight (Approximate) | 15.20 oz |
