ENGENIUS

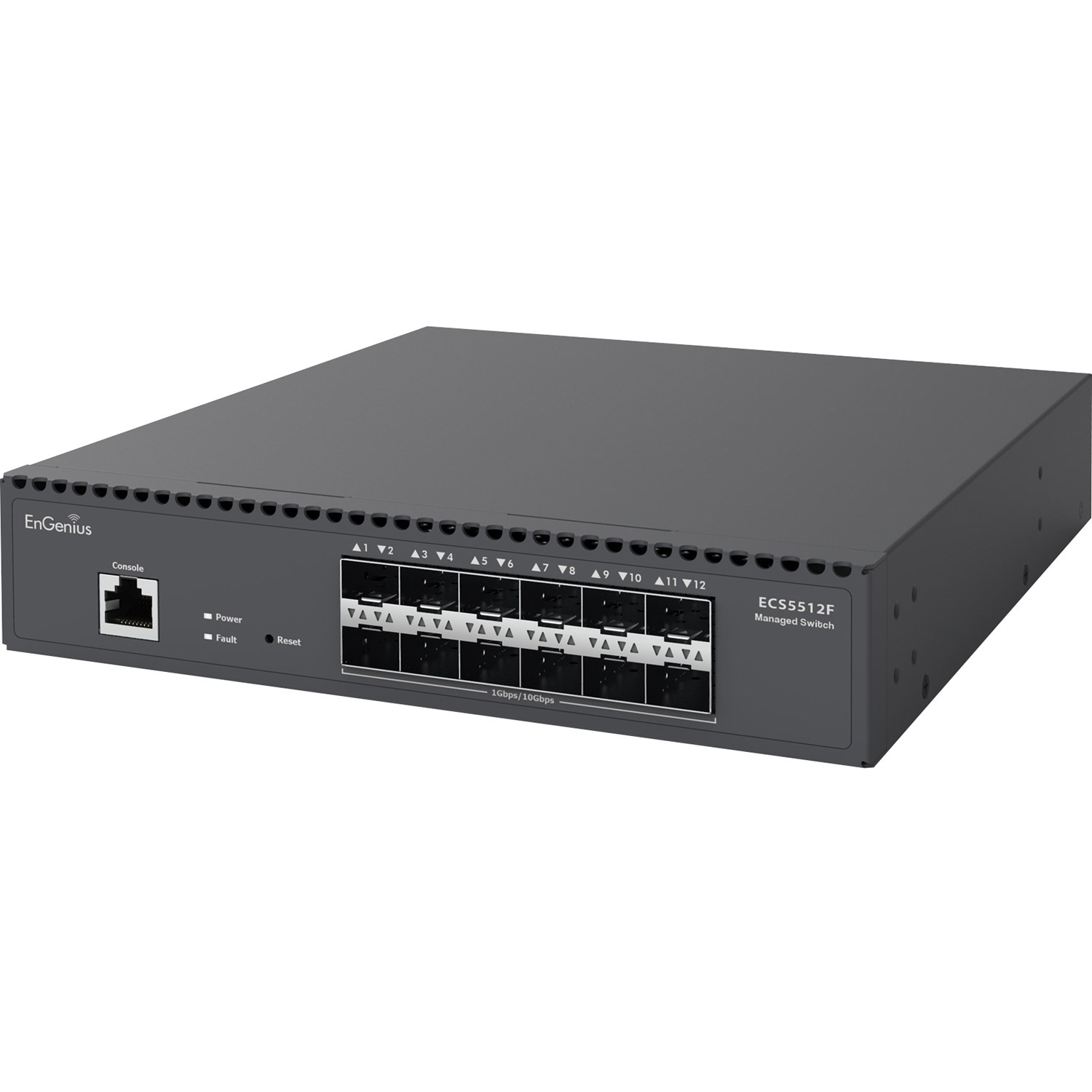

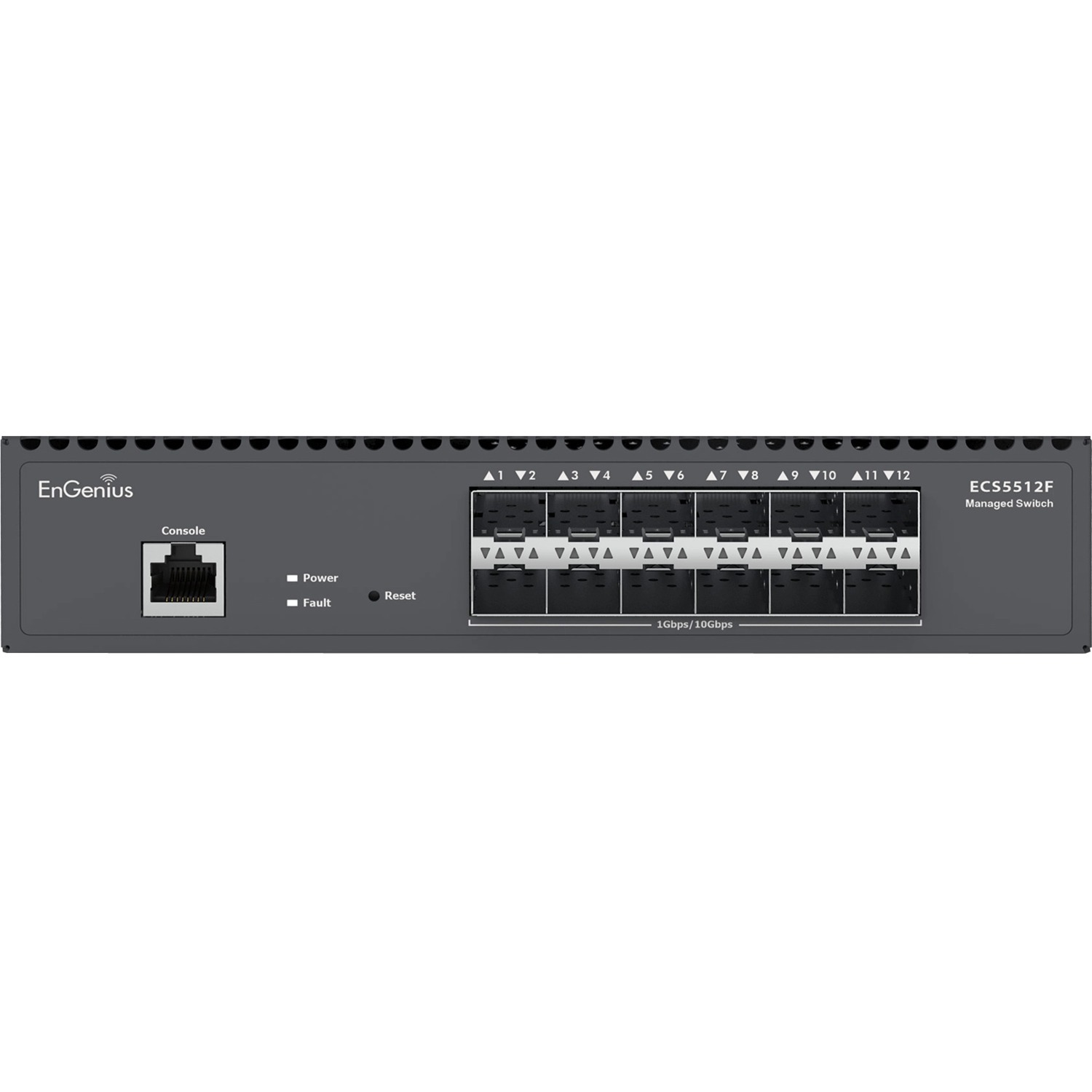

ENGENIUS CLOUD-MANAGED ECS5512F 12-PORT 10G FIBER SFP+ HALF-RACK AGGREGATE SWITC
Mfg Part Number: ECS5512F , Item #: 4750656
Image may not reflect the actual item.
Price: $683.25
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 02, 2025
No Sales Tax except these states
, PO and Wire.
The EnGenius cloud-managed ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch, expandable to two per rack, boosts traffic flow and network performance. Administrators can easily scale from 12 to 24 SFP+ ports on a single rack as network demands increase in large business, multi-dwelling unit, hospitality, and campus environments.
- (12) 10 Gigabit SPF+ Ports
- Full-Featured Layer 2+ Ethernet Switch
- 240 Gbps Switching Capacity

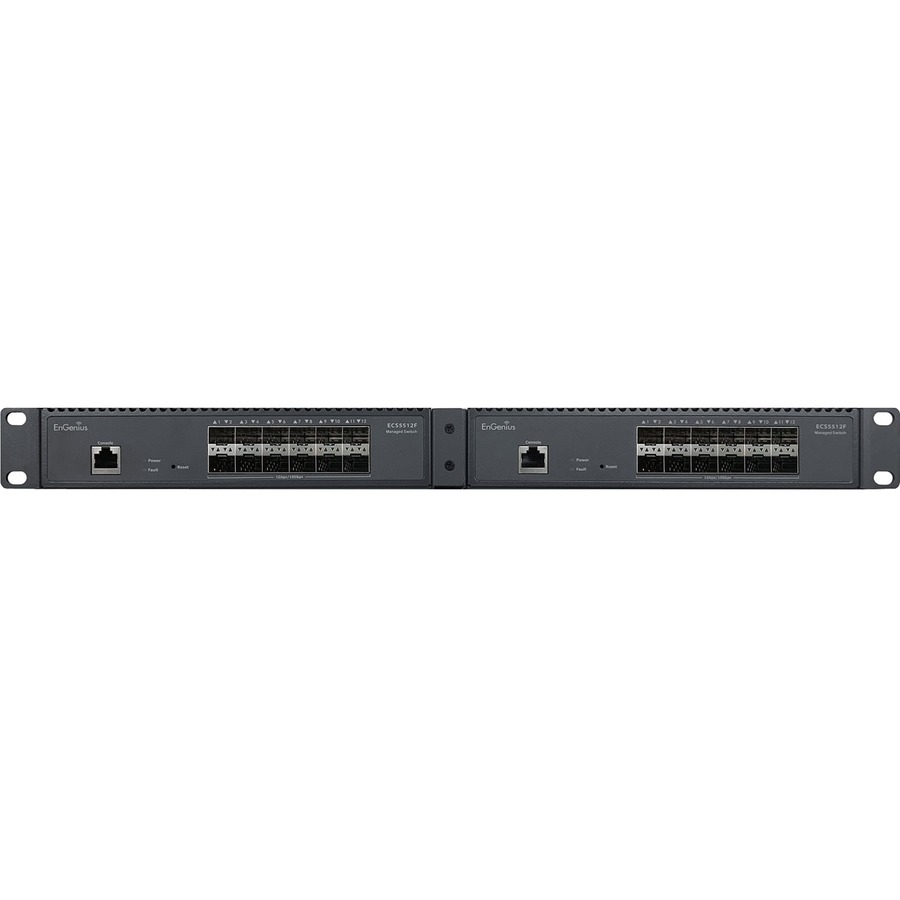

- Half Rack 1U (19") Mount Expandable to Two Switches per Rack
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- Advanced View Displays Network Topology with Devices and Relationships
- Hybrid Switch Supports Multiple Management Options
- Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
Main Specification
| General Information | |
| Manufacturer | EnGenius Technologies, Inc |
| Manufacturer Part Number | ECS5512F |
| Manufacturer Website Address | http://www.engeniustech.com |
| Brand Name | EnGenius |
| Product Series | ECS |
| Product Model | ECS5512F |
| Product Name | Cloud Managed 12-Port 10 Gigabit SFP+ Half-Rack Aggregate Fiber Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Modular | Yes |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 12.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 12 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3bz |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1Q |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Power Source | Power Supply |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 8.3" |
| Depth | 9.1" |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Business |
| Warranty | |
| Limited Warranty | 2 Year |
