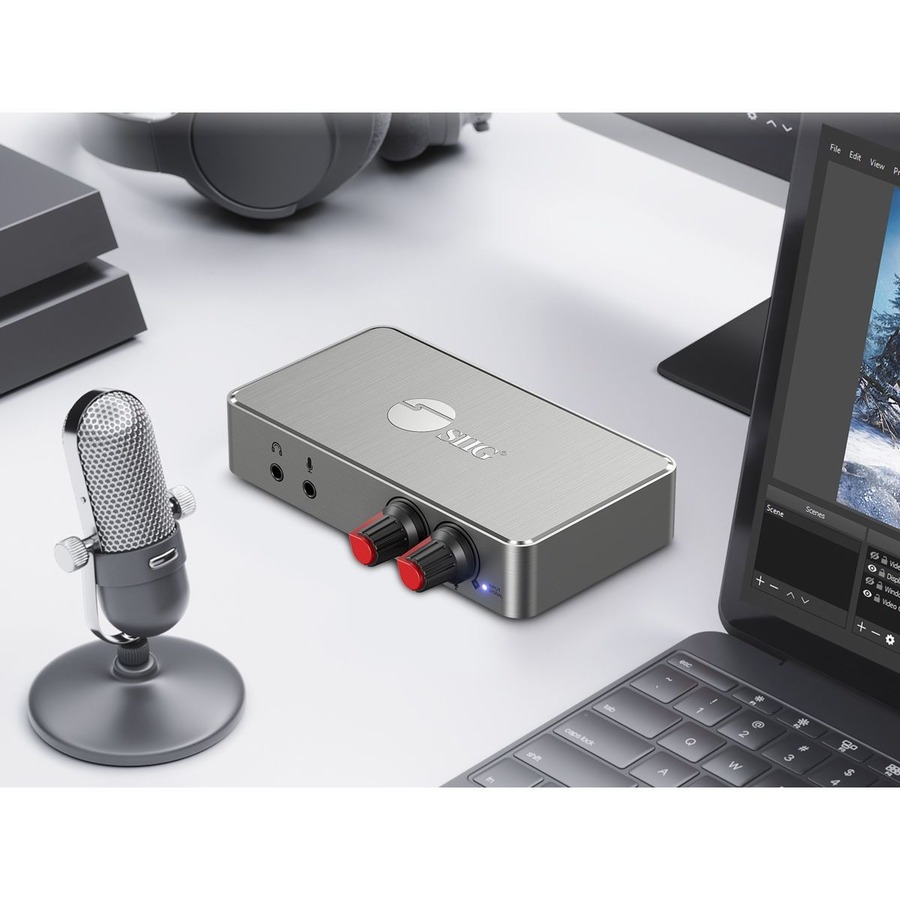

SIIG CE-H27311-S1 4K HDMI VIDEO CAPTURE BOX WITH VOLUME CONTROL & LOOPOUT

Overview

Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K@60Hz resolution, Volume Control, Aluminum Housing, TAA compliant

Features

Easily capture and record 4K HDMI live video with low latency via a USB-C device and adjust the sound directly with the volume knob

4K UHD Resolution
Supports streaming 4K (3840x2160) @60Hz Ultra high-definition video resolution and recording 4K (3840x2160) @30Hz UHD video resolution, ideal for game capture

HDR Convert SDR
This 4K HDMI Video Capture Box supports HDR10 to SDR conversion when a monitor/display without HDR or HDMI source with HDR

USB Record
Stream video via USB-C and supports USB Video Class (UVC) 1.0/1.1/1.5 and up to 5Gbps date transfer

Auto Downscaling
Detects and configures the video resolution automatically according to the capabilities of the connected monitor

Stereo Audio/Control

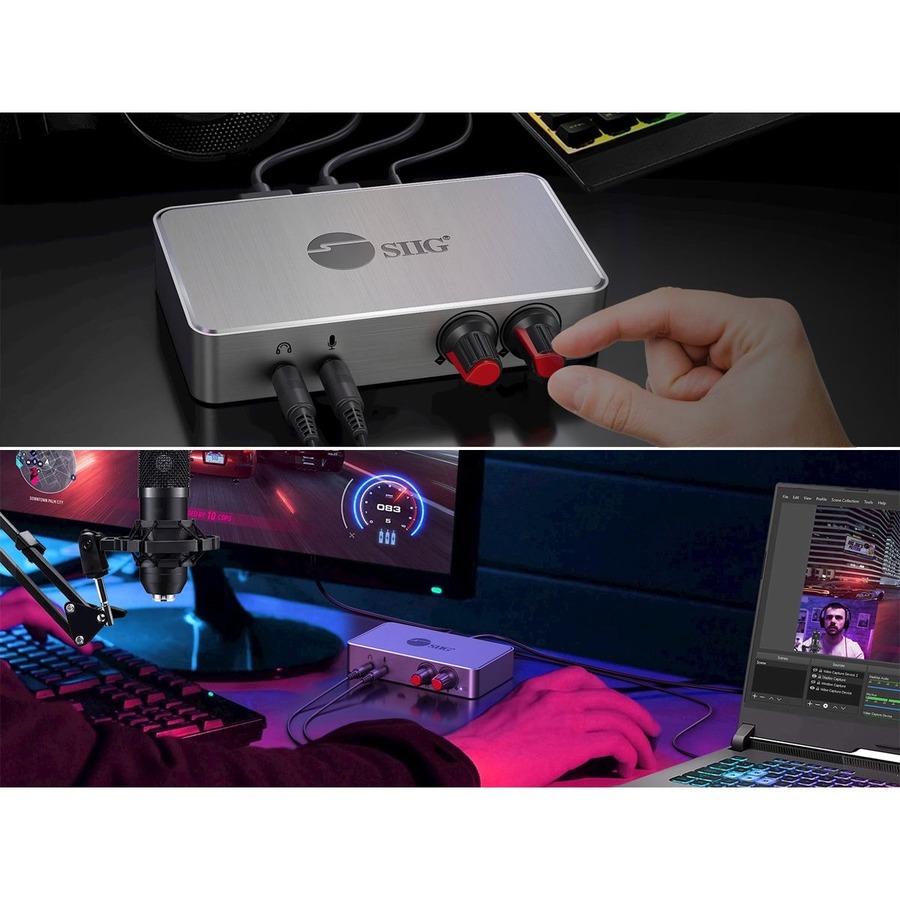

Supports stereo audio embedded and HDMI audio extractor great for adding voice over to your gameplay. Built-in volume control knob to adjust the microphone/headphone volume

Multiple Connectivity Ports

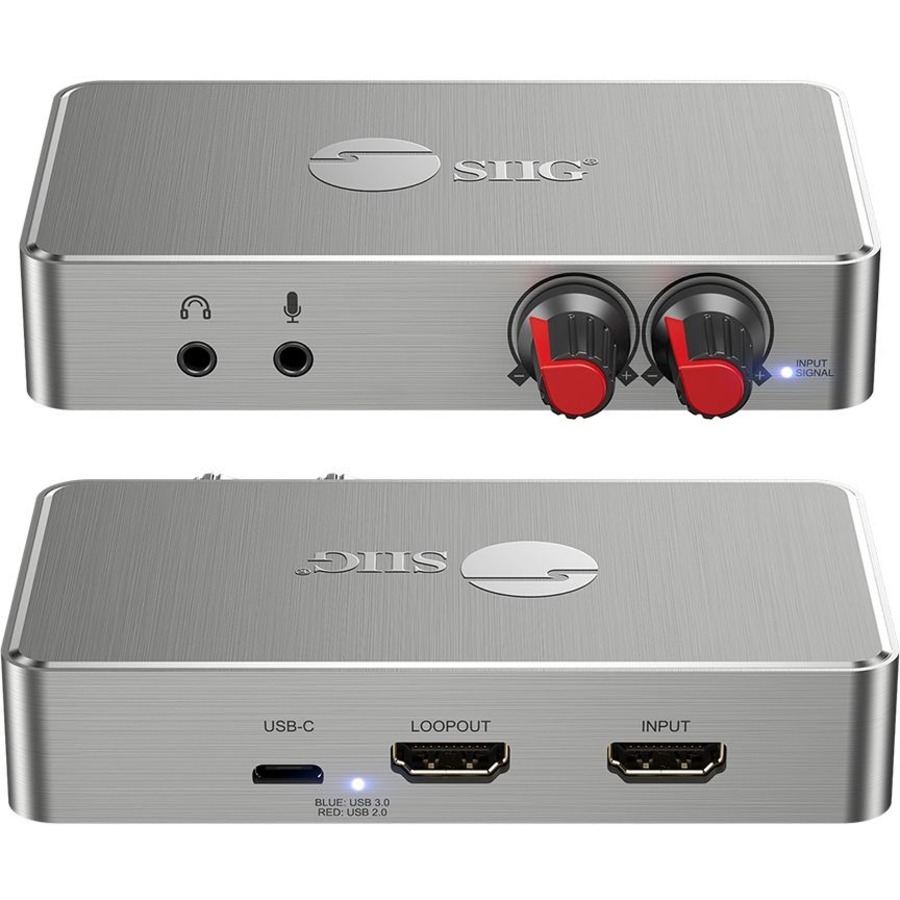

Comes with one HDMI video input port, one HDMI video output port, one USB-C 3.2 Gen 1 output port (Host), one 3.5mm microphone input port, one 3.5mm stereo audio output port, and two audio volume knob

General Information
Manufacturer	SIIG, Inc
Manufacturer Part Number	CE-H27311-S1
Manufacturer Website Address	http://www.siig.com
Brand Name	SIIG
Product Name	4K HDMI Video Capture Box with Volume Control & Loopout
Packaged Quantity	1
Product Type	Video Capturing Device
Technical Information
Functions	Video Recording
Functions	Video Streaming
Functions	Video Capturing
Maximum Resolution	3840 x 2160
Screen Mode Supported	4K
Platform Supported	PC
Platform Supported	Mac
Interfaces/Ports
USB	Yes
HDMI	Yes
Audio Line In	Yes
Audio Line Out	Yes
Software
Operating System Supported	Windows 7
Operating System Supported	Windows 8
Operating System Supported	Linux
Operating System Supported	Windows 11
Operating System Supported	macOS 10.15
Operating System Supported	Mac OS X 11.1 Big Sur
Operating System Supported	Mac OS X 11.0 Big Sur
Operating System Supported	Windows 10
Physical Characteristics
Height	0.9"
Width	2.5"
Length	4.6"
Weight (Approximate)	0.44 lb
Miscellaneous

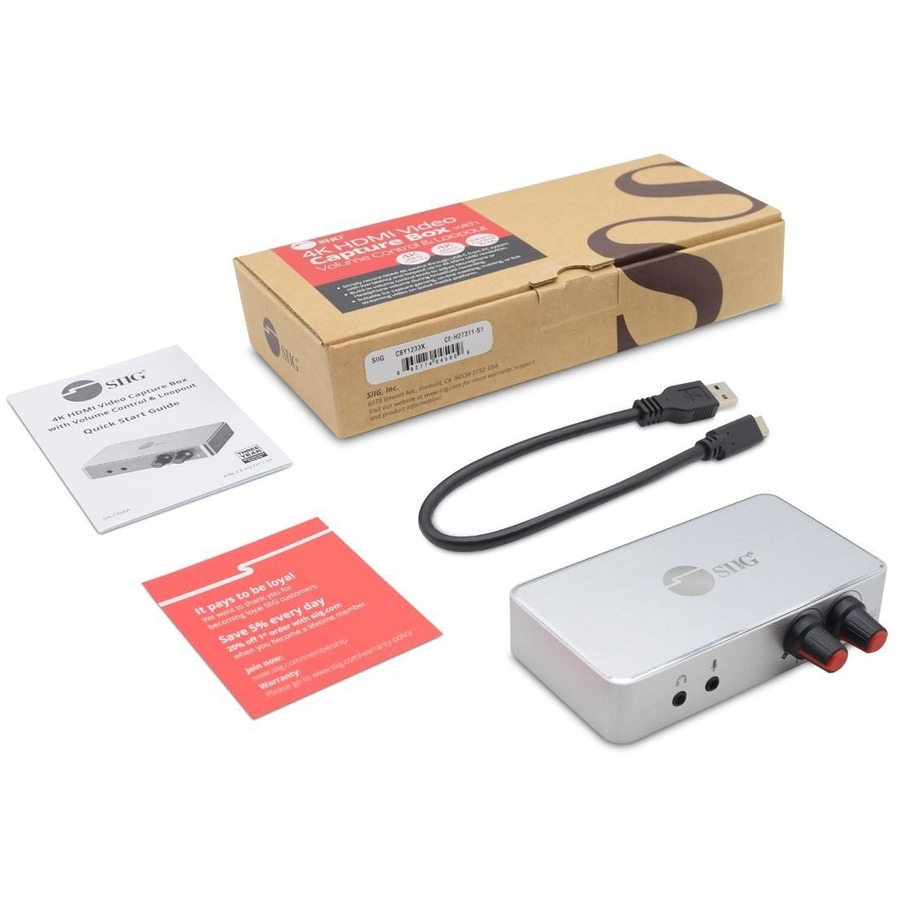

Package Contents	4K HDMI Video Capture Box with Volume Control & Loopout 1 x USB 3.2 Gen 1 Type-C to Type-A Cable, 0.98ft (30cm) 1 x User Reference Guide
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty	3 Year
