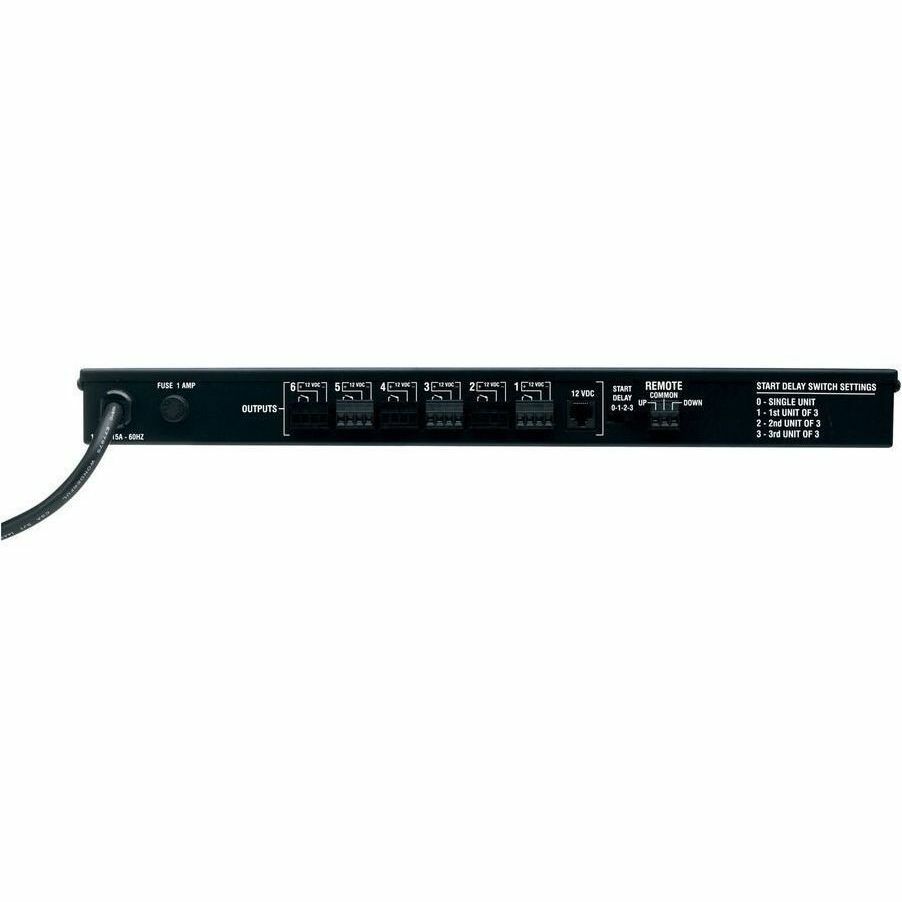

MIDDLE ATLANTIC USC-6R Rackmount 6 Step Universal

The Middle Atlantic USC-6R is a versatile, rackmount sequencer designed to provide six-step sequencing for your AC power distribution system. Whether used with the rackmount USC-6R sequencer, the raceway mount MPR-SEQ, or the stand-alone MPR-SEQ-1C, this device offers seamless integration and control through low voltage switch closures. Sequencing can be initiated locally via the convenient front panel switch or remotely using any momentary contact closure switch (single pole, double throw, center off). Remote switches are also available for added flexibility. This single rackspace unit features an adjustable interval delay selector, allowing you to choose 1, 3, or 6-second intervals between steps. It also includes four different start delay settings, enabling the interconnection of up to three USC-6R units to operate as a single, 18-step sequencer. The USC-6R can provide six-step sequencing to MPR remote power modules and control PDC-915R-6 and PDC-915R-2 units. With adjustable start delay times and sequence intervals, the USC-6R ensures precise and customizable power sequencing for any professional setup.

General Information
Manufacturer	Legrand Group
Manufacturer Part Number	USC6R
Manufacturer Website Address	http://www.legrand.us
Brand Name	Middle Atlantic
Product Series	MPR
Product Model	USC-6R
Product Name	1 Space Sequencing Controller, RLM Series
Product Type	Sequencing Controller
Physical Characteristics
Product Color	Black
Product Material	Powder Coated Steel
Form Factor	Rack-mountable
Height	1.8"
Width	19"
Depth	9"
Miscellaneous
Compatibility	PDC-915R-6 PDC-915R-2
Environmentally Friendly	Yes
Environmental Certification	GREENGUARD
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	Lifetime
