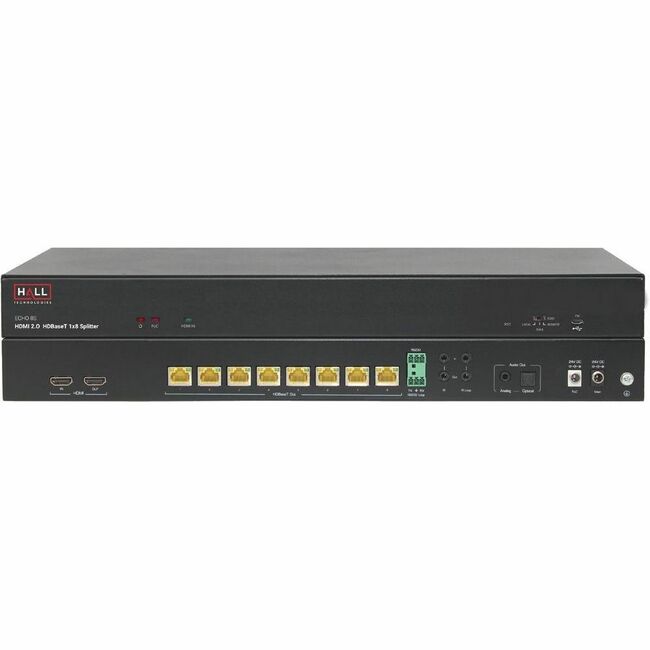

The ECHO-8S is designed to allow a single HDMI 2.0 source to be displayed remotely at up to eight different locations, using HDBaseT™ technology. HDMI resolutions up to 4K UHD (4K@60 4:4:4) can be extended up to 70m, while resolutions up to 1080p can be extended 100m over a single CAT5e or CAT6 cable. ECHO supports HDCP 2.2 and 1.4 content protection, as well as HDR10 High Dynamic Range video.
In addition to HDMI extension, the ECHO-8S also extends RS-232 serial data, and bi-directional IR for control of remote devices. All senders include a local HDMI output, EDID routing control, de-embedded analog audio, and Power over Cable (PoC) to power remote receivers. The ECHO-8S has built-in HDMI splitters to extend a single video to four receivers respectively, and have additional features including RS-232 and IR loop output for daisy-chaining senders, and digital TOSLINK audio de-embedding.
| General Information | |
| Manufacturer | Hall Technologies |
| Manufacturer Part Number | ECHO-8S |
| Manufacturer Website Address | http://www.halltechav.com |
| Brand Name | Hall |
| Product Model | ECHO-8S |
| Product Name | 8 Channel HDBaseT Splitter (Sender) |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| Video | |
| Graphics Modes | 4K UHD |
| Supported Video Modes | 1080p |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 8 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Transmitter Height | 1.72" |
| Transmitter Width | 18.90" |
| Transmitter Depth | 7.46" |
| Transmitter Weight (Approximate) | 10.80 lb |
