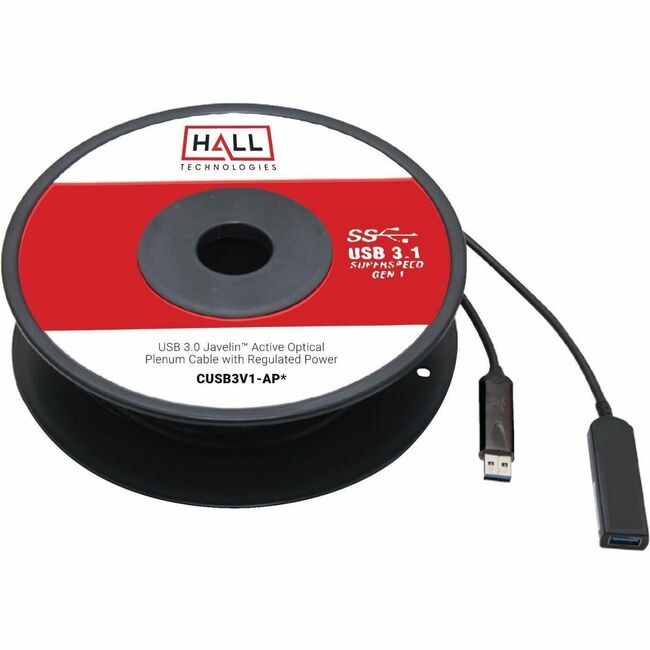

Available in lengths of 15, 30, 50, 75 and 100 meters, CUSB3V1-AP* cables support transparent extension of USB 3.1 Gen1 Super-Speed at data rates of up to 5 Gbps. It is also downward compatible with USB 2.0 or 1.1 devices. An additional 5 volt regulator on the receiver end will boost the power to compensate for power hungry USB cameras.CUSB3V1-AP* cables are compatible with virtually all USB 3.0 and 3.1 Gen1 devices, and are a perfect solution for extending 4K videoconferencing cameras, video capture, docking stations, and other high-speed data communication.
They also work with USB 2.0 or 1.1 devices although this feature is only available for PCs running Windows™ and needs a driver installation. Driver installation is not required for extending purely USB 3.0 devices on any platform (PC, Mac, Linux).The cable is a light-weight hybrid of fiber and copper, and is plenum rated to ensure compliance with modern building codes. The small cable ends can be easily pulled through most conduit, and no additional power is required, making the CUSB3V1-AP* a true plug-and-play solution.
| General Information | |
| Manufacturer | Hall Technologies |
| Manufacturer Part Number | CUSB3V1AP50 |
| Manufacturer Website Address | http://www.halltechav.com |
| Brand Name | Hall |
| Product Line | Javelin |
| Product Name | USB 3.0 Javelin Active Optical Plenum Cable with Regulated Power |
| Product Type | Data Transfer Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Length | 164.04 ft |
| Connector Type on First End | USB 3.1 (Gen 1) Type A - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x USB 3.1 (Gen 1 ) Type A - Male |
| Connector Type on Second End | USB 3.1 (Gen 1) Type A - Female |
| Connector Gender on Second End | Female |
| Connector on Second End Details | 1 x USB 3.1 (Gen 1 ) Type A - Female |
| Jacket Type | CMP |
| Jacket Type | Plenum |
| Device Supported | USB Device |
| Device Supported | USB Camera |
| Device Supported | PC |
| Device Supported | Docking Station |
| Device Supported | Video Conferencing Camera |
| Data Transfer Rate | 5 Gbit/s |
| Features | EMI/EMC Shield |
| Features | Plug & Play |
| Features | Strain Relief |
| Features | Bendable |
| Features | AOC Technology |
| Features | Flexible |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 8 lb |
