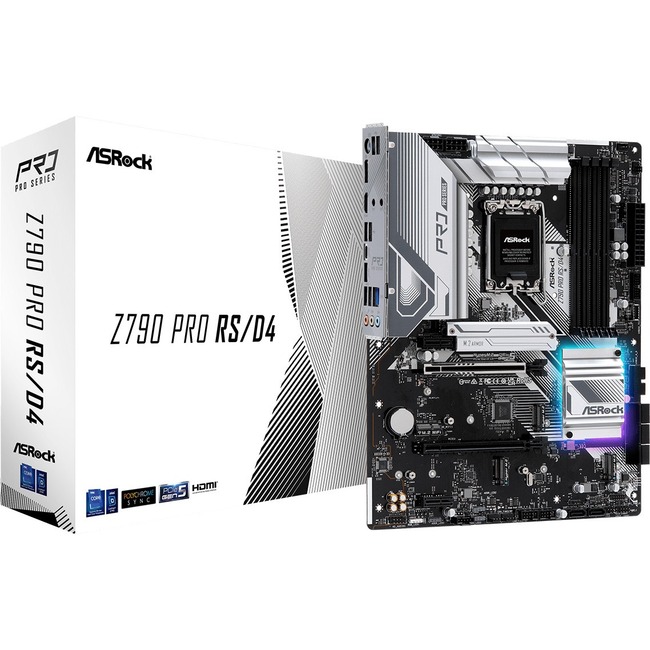

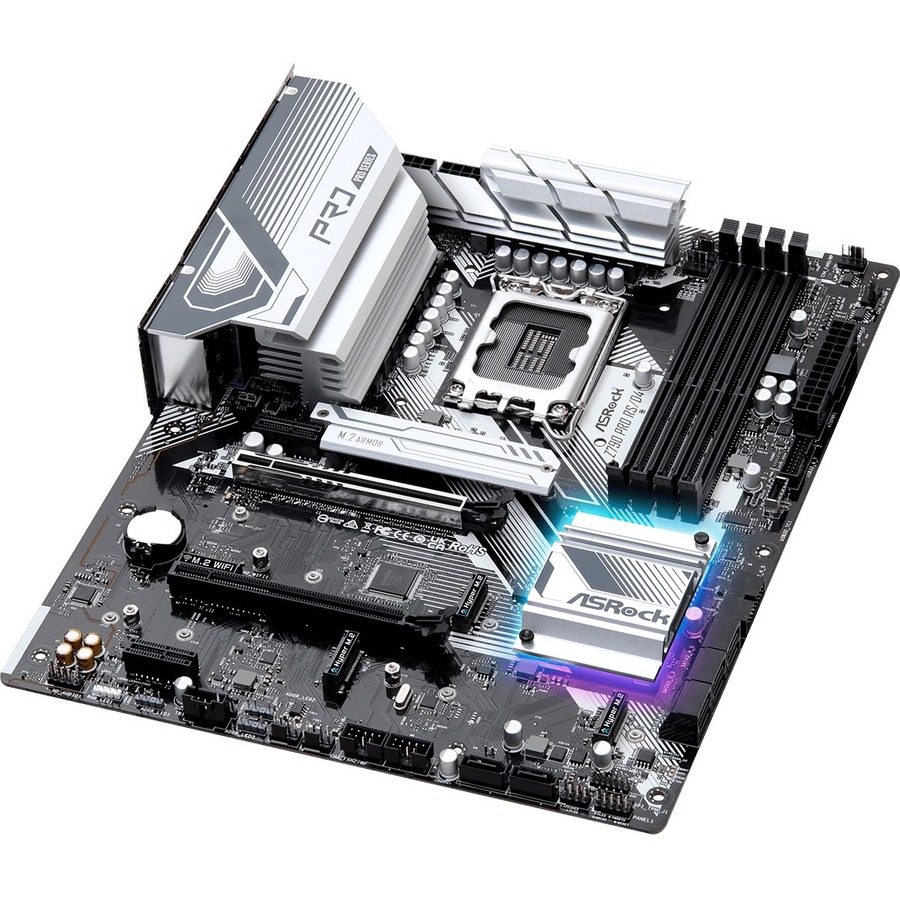

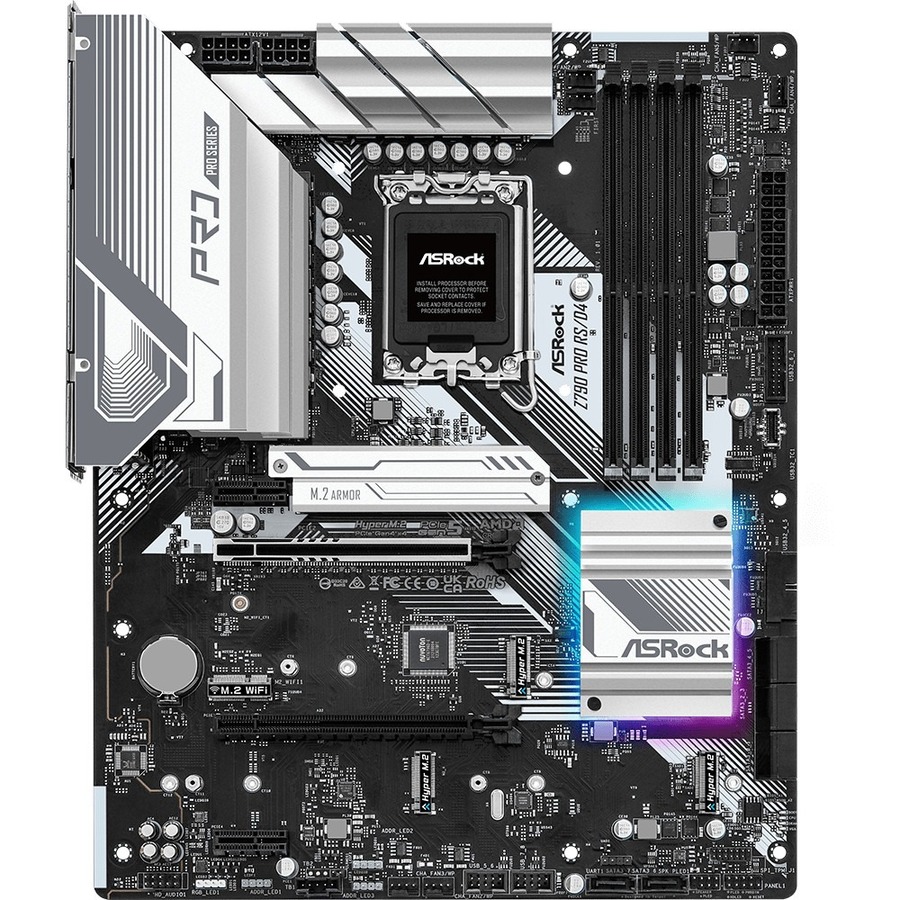

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming - with style and speed!
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Reinforced Steel Slot [PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
? Extra anchor points
? Stronger latch
? Ensure signal stability
? Make sure heavy graphics cards to be well-installed.
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
General Information | |
Manufacturer | ASRock, Inc |
Manufacturer Part Number | Z790 PRO RS/D4 |
Manufacturer Website Address | http://www.asrock.com |
Brand Name | ASRock |
Product Series | PRO |
Product Model | Z790 PRO RS/D4 |
Product Name | Z790 PRO RS/D4 Gaming Desktop Motherboard |
Product Type | Gaming Desktop Motherboard |
Processor & Chipset | |
Chipset Manufacturer | Intel |
Chipset Model | Z790 |
Total Processor Supported | 1 |
Processor Socket | Socket LGA-1700 |
Processor Generation Supported | 12th Gen |
Processor Generation Supported | 13th Gen |
Processor Supported | Core |
Multi GPU Supported | CrossFire |
Memory | |
Number of Memory Slots | 4 |
Memory Form Factor | UDIMM |
Memory Form Factor | DIMM |
Maximum Memory Supported | 128 GB |
Memory Technology | DDR4 SDRAM |
Memory Speed Supported | 5333 MHz |
I/O Controller | |
Controller Type | Serial ATA/600 |
RAID Supported | Yes |
RAID Levels | 0 |
RAID Levels | 10 |
RAID Levels | 5 |
RAID Levels | 1 |
Video | |
Onboard Video | CPU Dependent Video |
Audio | |
Audio Channels | 7.1 |
Network & Communication | |
Gigabit Ethernet | Yes |
2.5Gigabit Ethernet | Yes |
I/O Expansions | |
Total Number of Expansion Slots | 4 |
PCI Express Standard | PCI Express 5.0 |
PCI Express Standard | PCI Express 3.0 |
PCI Express Standard | PCI Express 4.0 |
Total Number of PCI Express Slots | 4 |
Number of PCI Express x1 Slots | 2 |
Number of PCI Express x16 Slots | 2 |

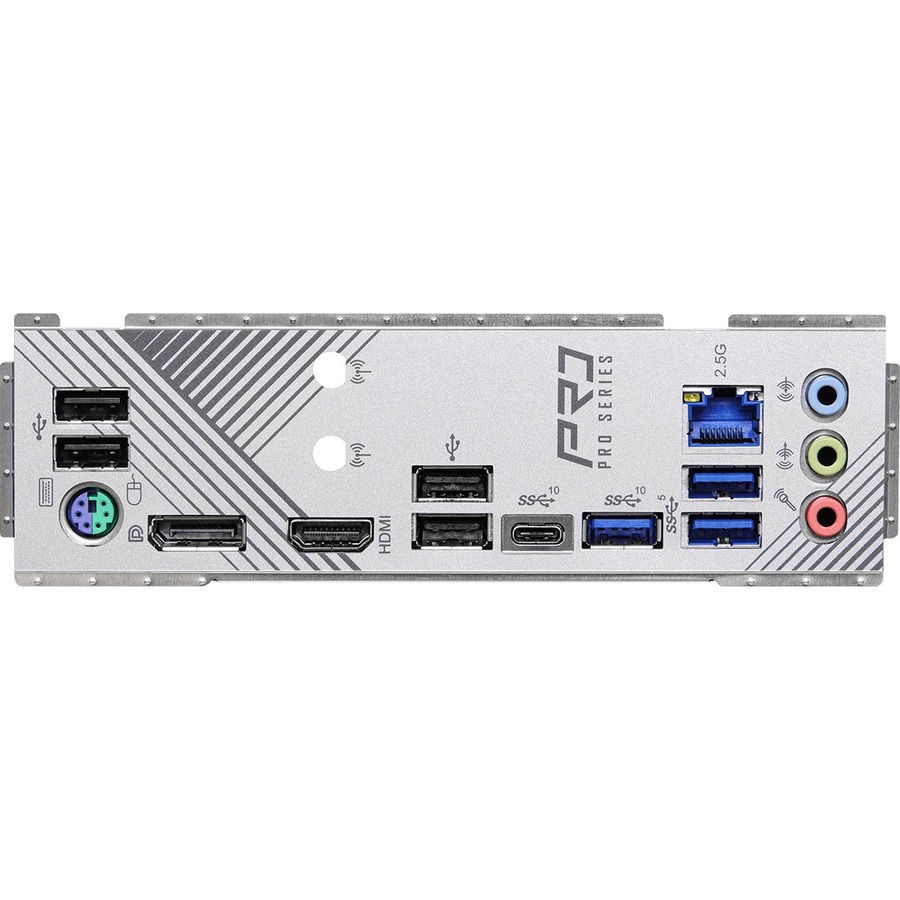

Interfaces/Ports | |
Total Number of USB Ports | 8 |
Number of USB 2.0 Ports | 4 |
Number of USB 3.2 Gen 1 Ports | 2 |
Number of USB 3.2 Gen 2 Type-A Ports | 1 |
Number of USB 3.2 Gen 2 Type-C Ports | 1 |
HDMI | Yes |
HDMI Version | 2.1 |
DisplayPort | Yes |
Number of Network (RJ-45) Ports | 1 |
Thunderbolt | Yes |
Number of Thunderbolt 4 Ports | 1 |
Onboard Interfaces | |
Number of SATA Interfaces | 8 |
Number of M.2 Interfaces | 4 |
Total Number of Onboard USB Ports | 9 |
Number of Onboard USB 2.0 Ports | 4 |
Physical Characteristics | |
Form Factor | ATX |
Width | 12" |
Depth | 9.6" |
