ASROCK
ASRock MB Z790 PG Riptide Z790 LGA1700 Max128GB DDR5 ATX Retail
Mfg Part Number: Z790 PG RIPTIDE , Item #: 4746934
, PO and Wire.
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea's double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
Optimized VRM Design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
DDR5 XMP & EXPO Support
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6800MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Reinforced Steel Slot [PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
? Extra anchor points
? Stronger latch
? Ensure signal stability
? Make sure heavy graphics cards to be well-installed.
| General Information | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | Z790 PG RIPTIDE |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | Z790 PG RIPTIDE |
| Product Name | Z790 PG RIPTIDE Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Generation Supported | 13th Gen |
| Processor Supported | Core |
| Multi GPU Supported | CrossFire |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 3600 MHz |
| Memory Speed Supported | 6000 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 1 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| I/O Expansions | |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |

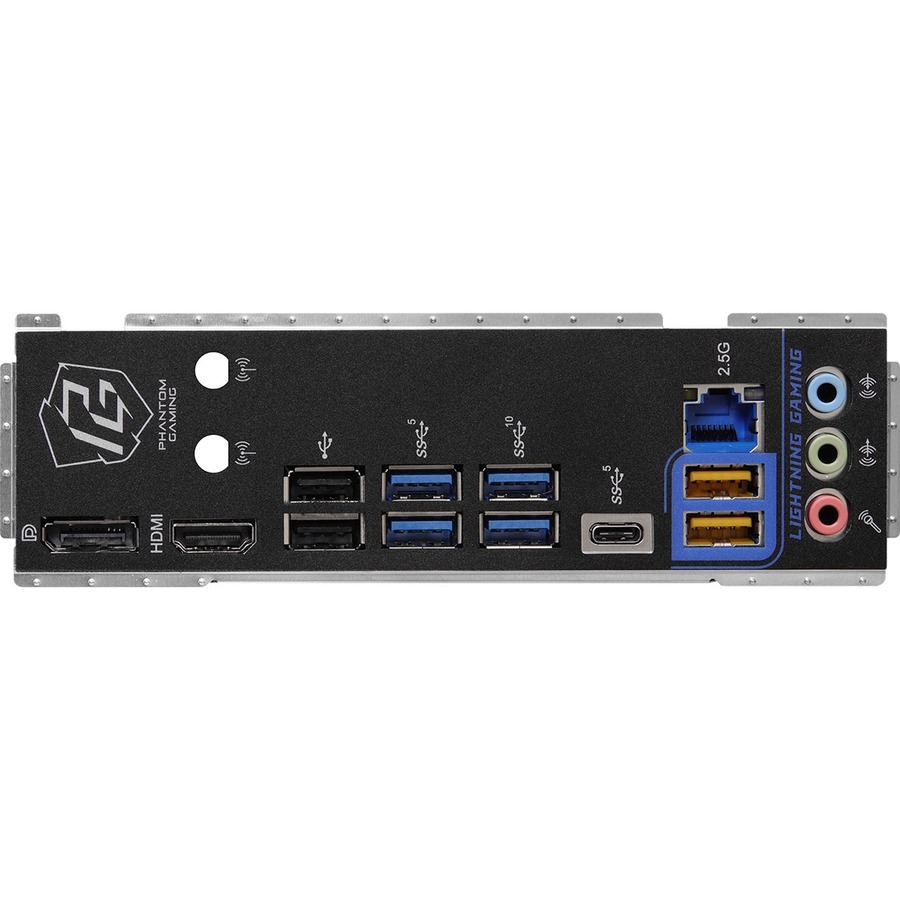

| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Number of M.2 Interfaces | 5 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
