ASUS

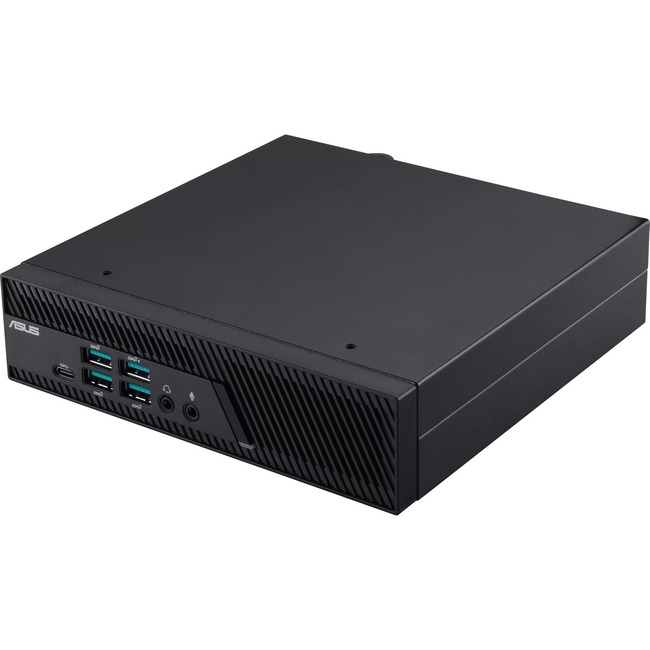

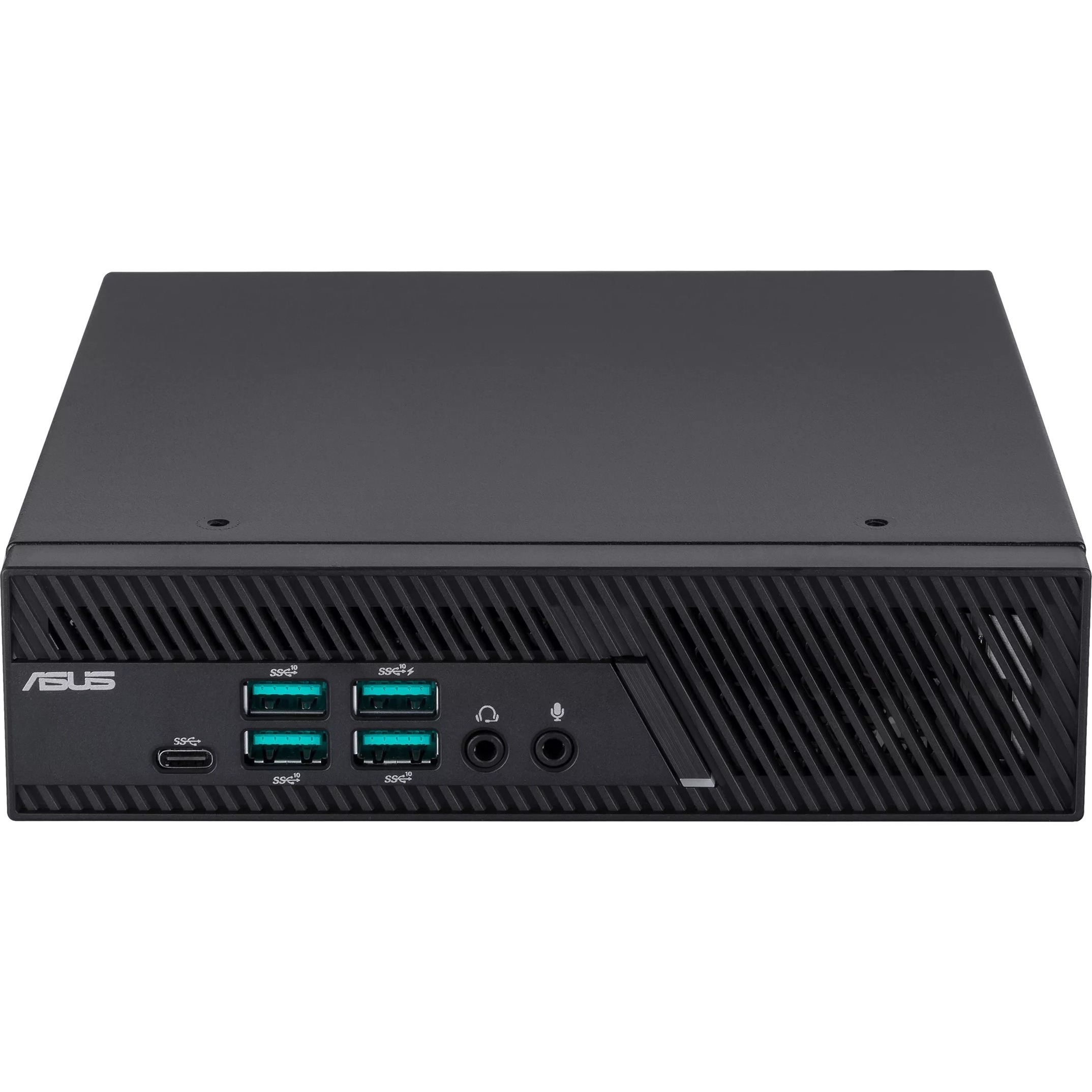

ASUS PB62-SYS5820XTD-O PB62 MINI PC SYSTEM I5-11400 DDR4 8GB RAM M.2 PCIE 256GB SSD
Mfg Part Number: PB62-SYS5820XTD-O , Item #: 4746412
, PO and Wire.
Solid reliability for your business

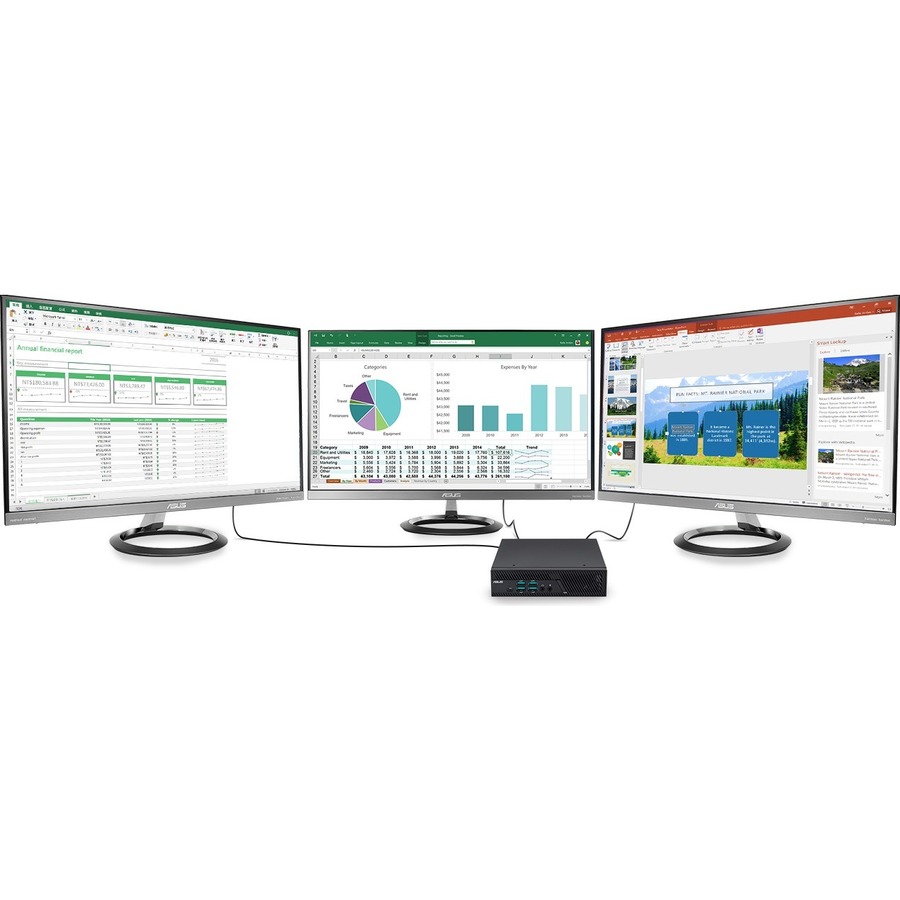

ASUS Mini PC PB62 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest 11th Gen Intel® Core™ processors, PB62 delivers desktop-grade performance in a compact size, with support for Intel® Optane™ technology for enhanced storage speed and increased business productivity. To cater to diverse demands, PB62 supports a 35- or 65-watt CPU - so it's easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB62 is perfect for almost any business scenario. It's also tested to the latest MIL-STD-810H military standard to ensure it's ready for harsh environments.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PB62-SYS5820XTD-O |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Series | PB62 |
| Product Model | PB62-SYS5820XTD-O |
| Product Name | PB62-SYS5820XTD-O Desktop Computer |
| Package Type | Retail |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 11th Gen |
| Processor Model | i5-11400 |
| Processor Speed | 2.60 GHz |
| Maximum Turbo Speed | 4.40 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B560 |
| Memory | |
| Standard Memory | 8 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| Storage | |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe 3.0 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |

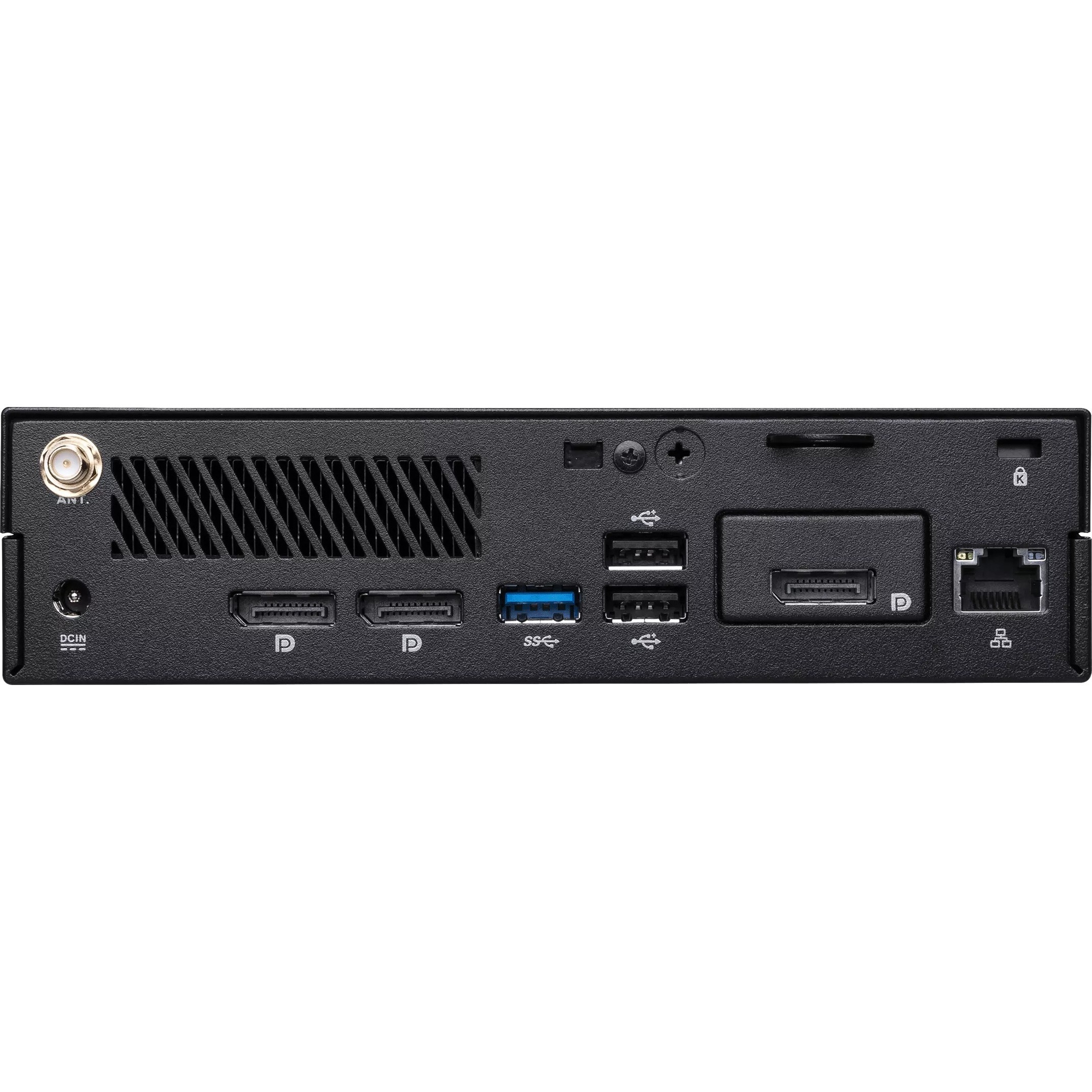

| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports (Rear) | 2 |
| Number of USB 3.2 Gen 1 Ports | 1 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen1 Type-C |
| Number Of Ethernet Ports | 1 |
| Number of DisplayPort Outputs (Rear) | 2 |
| DisplayPort (Rear) | Yes |
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 1.7" |
| Width | 6.9" |
| Depth | 6.9" |
| Weight (Approximate) | 2.87 lb |
| Miscellaneous | |
| Features | Security Slot |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
