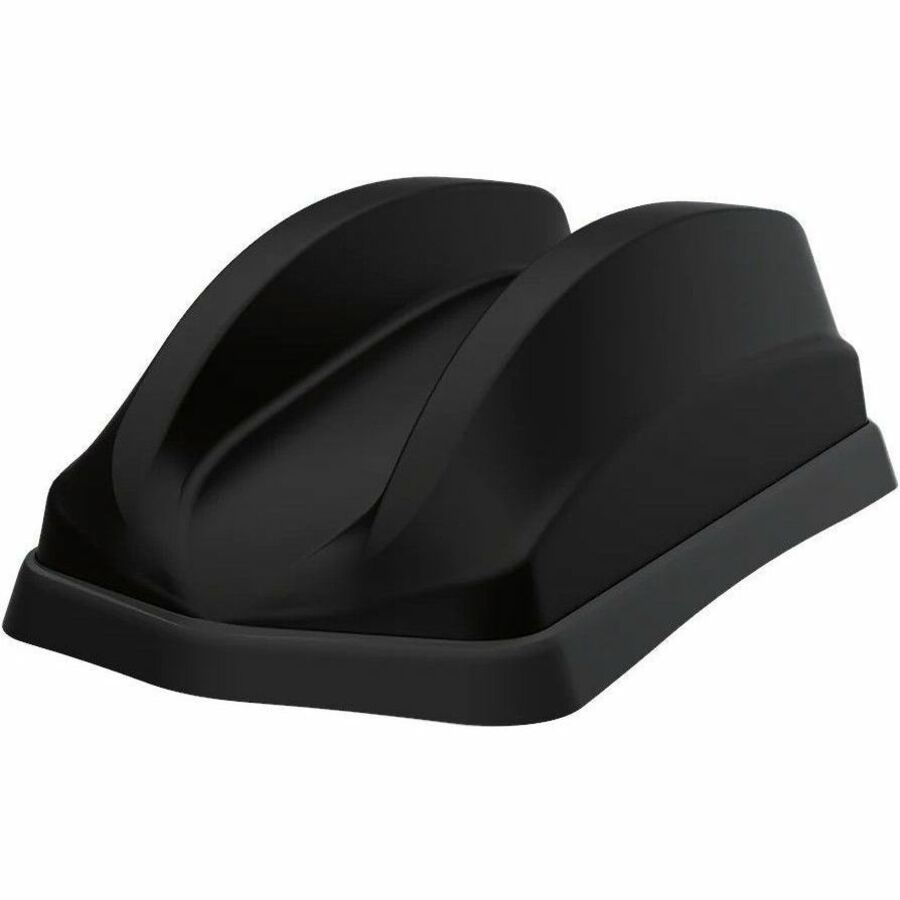

The GPS[X]D4[X]-6-60[-X] | GPSD4-6-60 | Dual-Sharkee is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing.
The housing contains a 4×4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), up to 6×6 MiMo dual-band WiFi, which supports WiFi 6e. It can include up to 4x active antennas for GPS/GLONASS/Galileo/BeiDou each with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.

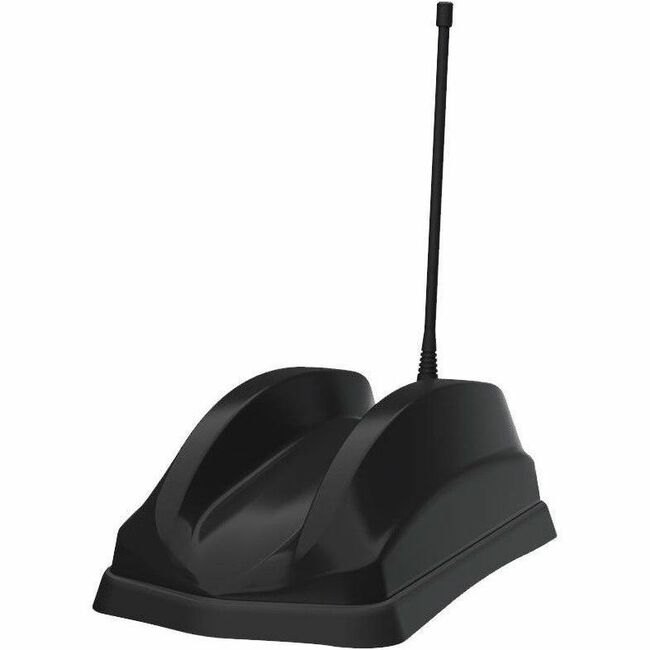

In addition, there is an integral stud mount for an external antenna whip. A blanking cap is supplied for when this whip position is not required.
The antenna should be installed on a metal panel when a comms whip is used, but if a whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.
The shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost-effective, efficient and robust antenna is essential. Requiring only a single-hole mounting, the antenna reduces vehicle damage, installation time, cost and visual impact whilst protecting a vehicle's resale value.
General Information | |
Manufacturer | Panorama Antennas Ltd |
Manufacturer Part Number | GPIN2712 |
Manufacturer Website Address | http://www.panorama-antennas.com |
Brand Name | Panorama Antennas |
Product Series | GPS[X]D4[X]-6-60[-X] |
Product Name | GPS[X]D4[X]-6-60 Antenna |
Product Type | Antenna |
Technical Information | |
Directivity | Omni-directional |
Operating Frequency Range | 1559MHz - 1612MHz |
Antenna Gain | 26 dB |
Interfaces/Ports | |
Connector Type | SMA |
Physical Characteristics | |
Product Color | Black |
Height | 3.23" |
Width | 5.59" |
Depth | 9.96" |
Form Factor | Magnetic Mount |
Form Factor | Panel Mount |
Miscellaneous | |
Application/Usage | Cellular Network |
Application/Usage | GPS |
