OMRON

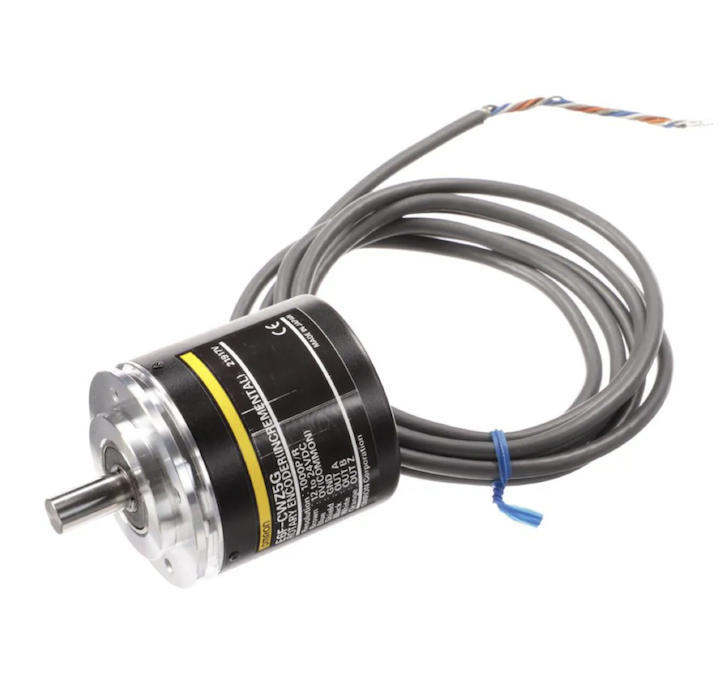

OMRON E6F-CWZ5G 1000P/R 2M Encoders Increm Rotary Enc 1000PR
Mfg Part Number: E6F-CWZ5G 1000P/R 2M , Item #: 4744767
Image may not reflect the actual item.
Price: $1,941.58
Quantity:
In Stock: 4
Last Updated: May 11, 2026
No Sales Tax except these states
, PO and Wire.
Power supply voltage. 12 VDC −10% to 24 VDC +15%, ripple (p-p): 5% max
Current consumption*1. 100 mA max.
Output configuration. Complementary outputs*2
Output capacity. Output voltage: VH = Vcc −3 V min. (Io = 30 mA), VL = 2 V max. (Io = −30 mA) Output current: ±30 mA
Maximum response fre- quency. 83 kHz
