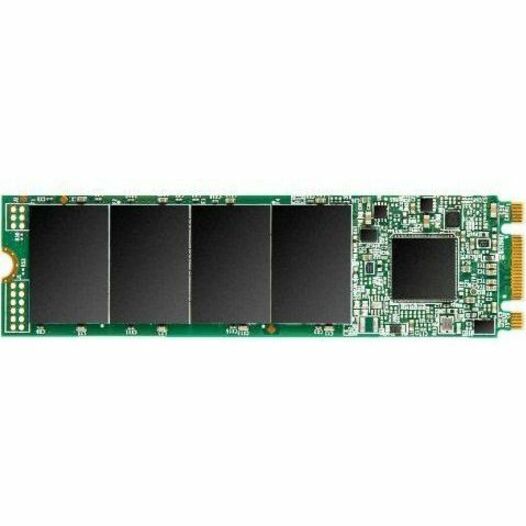

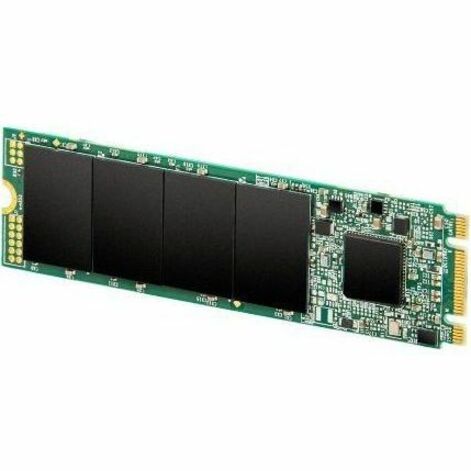

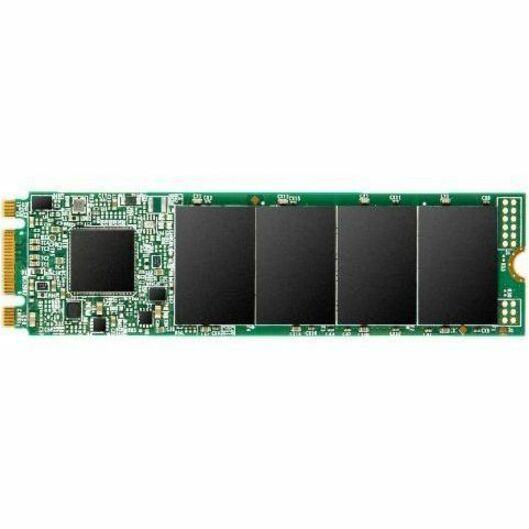

M.2 SSD 825S
Transcend's SATA III 6Gb/s M.2 SSD 825S comes with a small form factor and high-quality 3D NAND flash, upgrading your Ultrabooks and laptops in a snap. The SSD is designed with multiple firmware optimization technologies like SLC caching and LDPC ECC mechanism, which enhance the storage reliability and prolong the drive lifespan. A great difference can be made with a small upgrade.
Unparalleled performance
Featuring the M.2 standard (80mm), the mainstream SATA III 6Gb/s interface and a powerful controller, Transcend's M.2 SSD 825S reaches incredible read and write speeds of up to 550MB/s and 500MB/s, providing 1.5 times faster boot time than conventional hard drives.
Designed for slim devices
The height of the M.2 SSD 825S is only 80mm, ideal for Ultrabooks and lightweight notebooks. Thinner and lighter than normal hard drives, the M.2 SSD 825S gives your computer a much needed boost while saving space!
Respond fast
Dedicated to maximizing high-performance computing, the M.2 SSD 825S features 4k random file read and write speeds of up to 80,000 IOPS. It delivers incredibly short loading times and almost instant response for heavy graphics and multimedia applications.
Store more in less space
Built with high-quality 3D NAND flash, the M.2 SSD 825S unleashes up to 2TB of capacity for your computer, adding more storage space and enhancing computing efficiency.
Remarkable reliability
Despite its extra-small dimensions, the M.2 SSD 825S contains advanced features that allow the data to be stored more reliably and for the SSD to have a longer lifespan.
RAID engine and LDPC coding
Detects and corrects transfer errors to prevent data corruption
Garbage Collection
Relocates existing data to release memory blocks
Wear-leveling
Distributes data evenly across memory cells to prolong SSD's lifespan
Built-in SLC caching technology
Saves loading times and boosts system responsiveness
DevSleep
Intelligently shuts down SATA interface when not in use to prolong device's battery life
SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast with no errors. It determines the condition and optimizing the performance of your drive.
Guaranteed quality
Transcend's solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability.
| General Information | |
| Manufacturer | Transcend Information, Inc |
| Manufacturer Part Number | TS2TMTS825S |
| Manufacturer Website Address | http://www.transcend-info.com |
| Brand Name | Transcend |
| Product Model | TS2TMTS825S |
| Product Name | SATA III M.2 SSDs |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 2 TB |
| Platform Supported | Linux |
| Platform Supported | PC |
| Drive Performance | |
| Maximum Read Transfer Rate | 550 MB/s |
| Maximum Write Transfer Rate | 460 MB/s |
| Random 4KB Read | 55000IOPS |
| Random 4KB Write | 80000IOPS |
| Endurance (DWPD) | 0.3 |
| Endurance (TBW) | 720 TB |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | M.2 2280 |
| Height | 0.1" |
| Width | 0.9" |
| Depth | 3.1" |
| Weight (Approximate) | 0.32 oz |
| Miscellaneous | |
| Operating System Compatibility | Linux |
| Operating System Compatibility | Windows |
| Device Supported | Notebook |
| Device Supported | Storage Array |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
