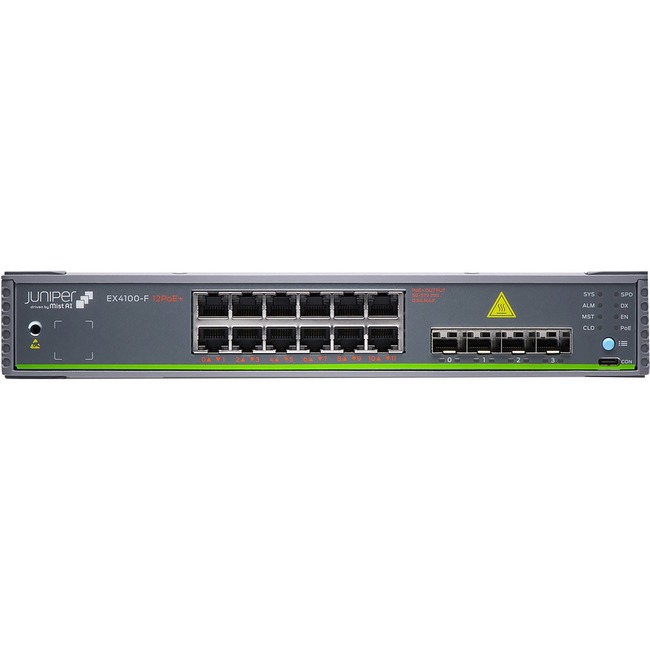

MIST SYSTEMS EX4100-F-12P EX4100-F 12-PORT FANLESS 10/100 1000BASET POE+ 2X 1G/2.5G/10GBASET

The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4100-F include:

• Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
• Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
• Standards-based microsegmentation using group-based policies (GBPs)
• Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
• 10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100-F enables multiple deployments. As scaling requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100-F switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100-F line consists of the following models:

• The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
• The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
• The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
• The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
• The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
• The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.

General Information
Manufacturer	Juniper Networks, Inc
Manufacturer Part Number	EX4100-F-12P
Manufacturer Website Address	http://www.juniper.net
Brand Name	Juniper
Product Series	EX4100-F
Product Model	EX4100-F-12P
Product Name	EX4100-F-12P Ethernet Switch
Product Type	Ethernet Switch
Technical Information
Features	Fanless
Interfaces/Ports
Total Number of Network Ports	12
Uplink Port	Yes
Modular	Yes
Stack Port	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	12 x Gigabit Ethernet PoE+
Port/Expansion Slot Details	4 x 10 Gigabit Ethernet Stack
Port/Expansion Slot Details	2 x 10 Gigabit Ethernet Uplink
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Ethernet Technology	10 Gigabit Ethernet
Ethernet Technology	Gigabit Ethernet
Network Technology	10GBase-X
Network Technology	10GBase-T
Network Technology	10/100/1000Base-T
I/O Expansions
Total Number of Expansion Slots	4.0
Expansion Slot Type	SFP+
Number of SFP+ Slots	4
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.3ax
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.1x
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.3af
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.3at
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.1ak
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.3ah
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.11ax
Networking Standards	IEEE 802.3ad
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	300 W
Power Source	Power Adapter
Power Consumption	80 W
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Wall Mountable
Form Factor	Rack-mountable
Form Factor	DIN Rail Mountable
Height	1.8"
Width	10.6"
Depth	9.7"
Weight (Approximate)	6.61 lb
Miscellaneous
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	Lifetime
