Axis

Axis 02415-001 P4705-PLVE

Mfg Part Number:  02415-001
Image may not reflect the actual item.
Price: $943.96
Quantity:
In Stock: 95
Last Updated: Apr 27, 2024
No Sales Tax except these states
, PO and Wire.

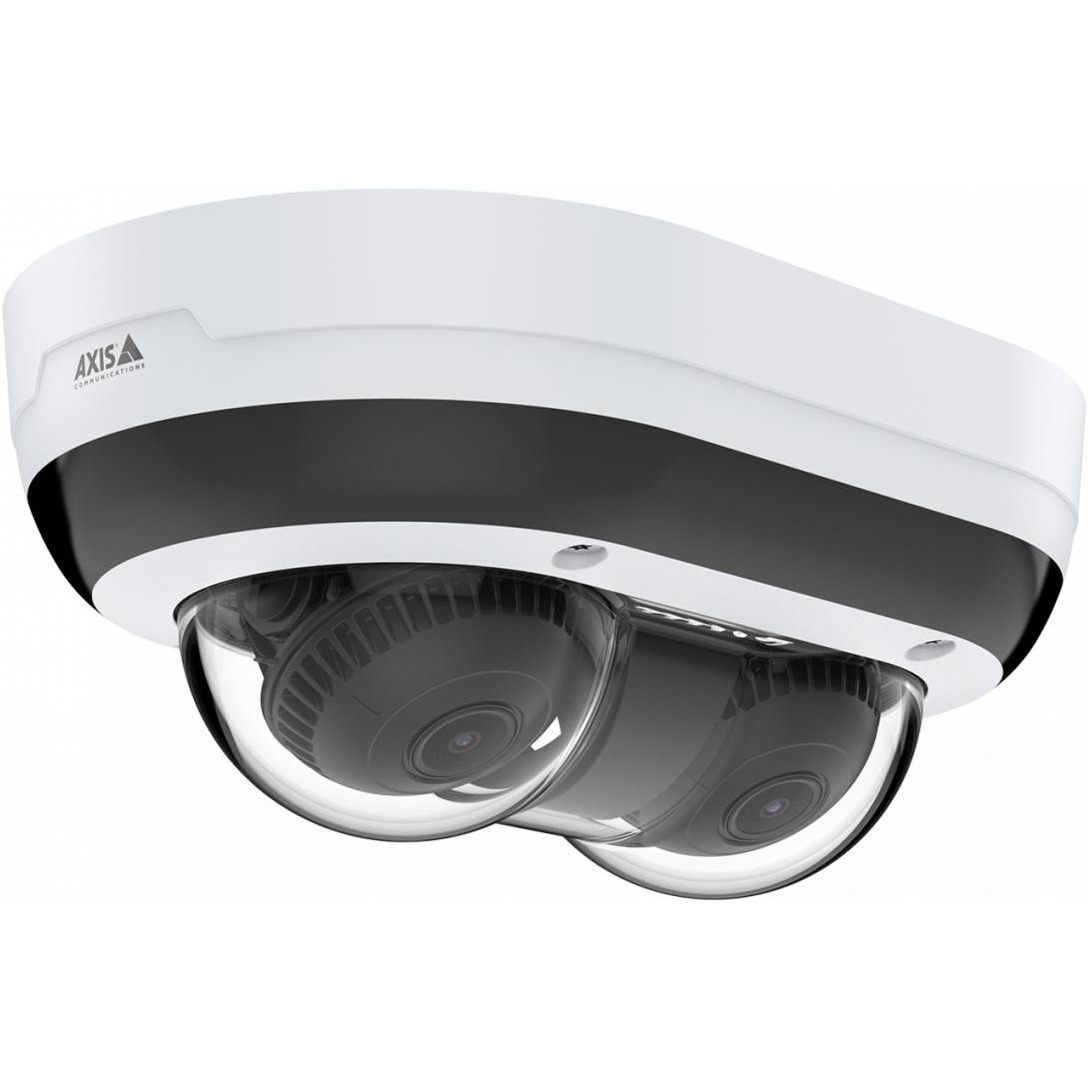

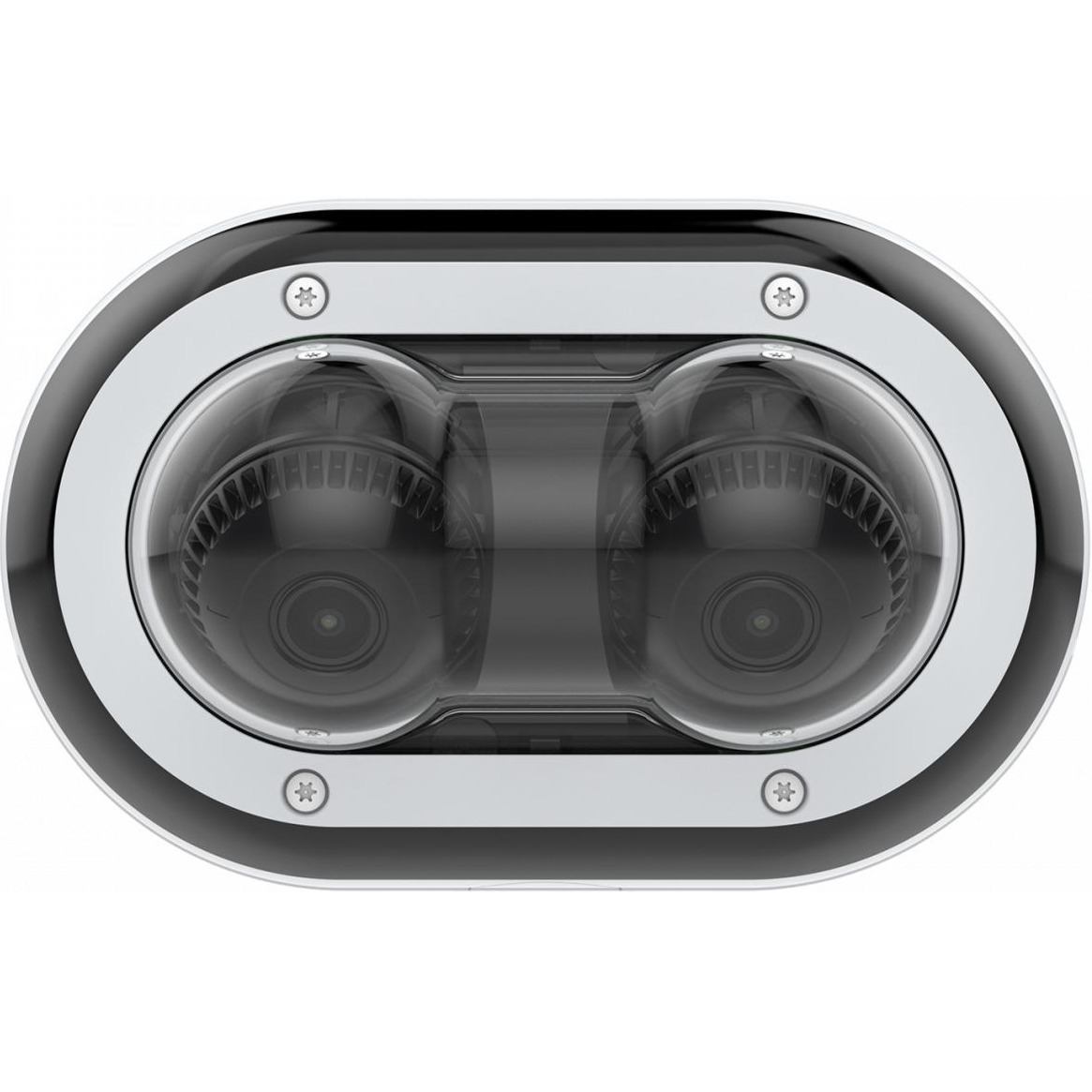

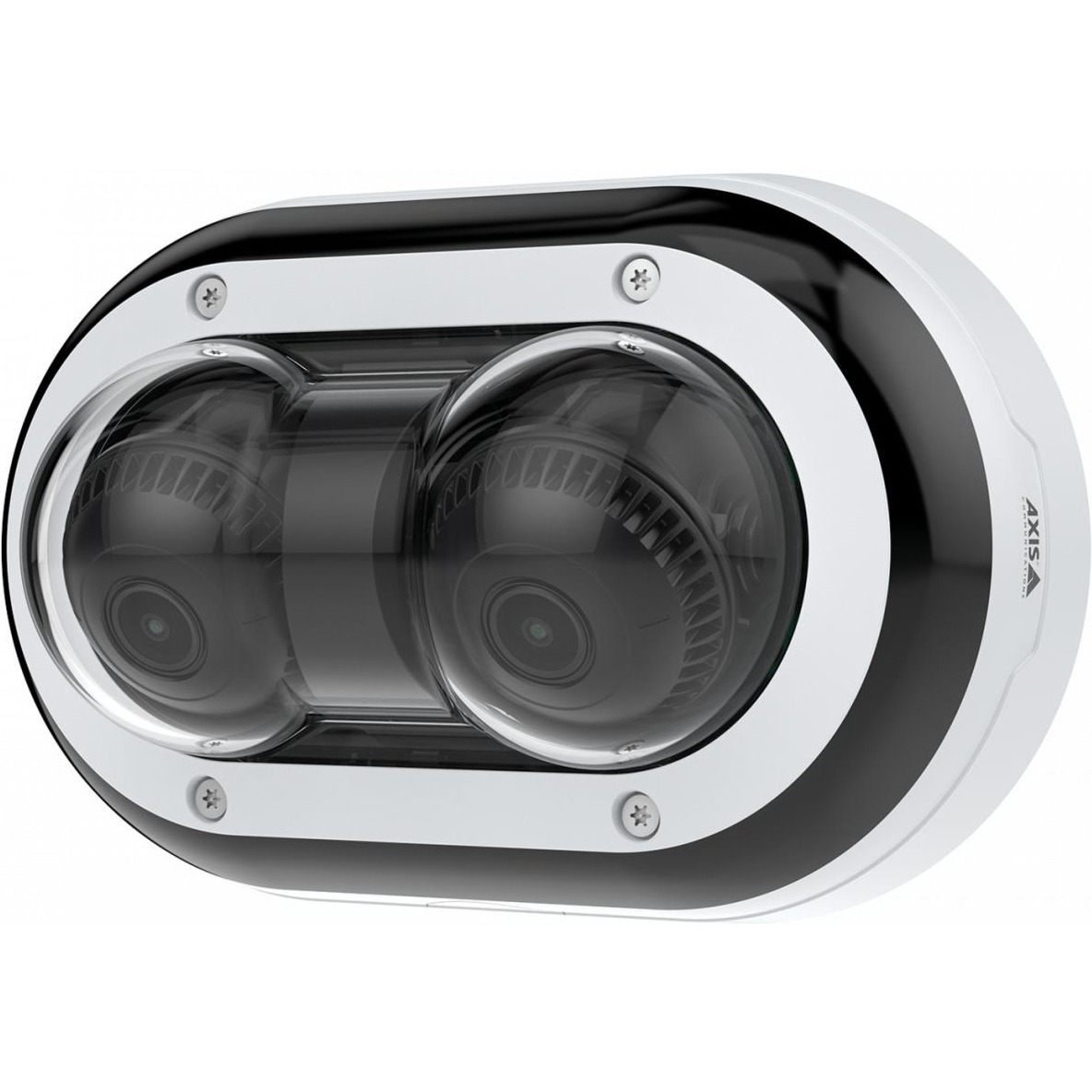

This dual-sensor, multidirectional camera delivers excellent image quality even in challenging light conditions. Built on ARTPEC-8, it offers support for advanced analytics based on deep learning on the edge.

See it all - 24/7

AXIS P4705-PLVE includes 360° IR illumination with individually controllable LEDs so you'll enjoy clear images even in low light or complete darkness as well as undistorted colors during the day. Featuring AXIS Lightfinder you get color images recorded in near darkness. And Forensic WDR ensures clarity when there's both dark and light areas in the scene. It offers two 2 MP channels and a frame rate of 30 fps letting you capture both wide angle and zoomed-in, detailed views. And, thanks to 2.5x zoom it delivers wide views and you can zoom in for all the details. Furthermore, audio input allows you to listen in to transactions or incidents.

Brilliant design

This compact, multidirectional camera is perfect when you need to see in two directions simultaneously. It offers flexible positioning of both varifocal camera heads and each head can be controlled individually so you can monitor scenes in two directions in wide or zoomed-in views. The camera's sensors can also be twisted, allowing two camera heads to be positioned closer together. This is the perfect setup for straight hallways or at the corners of an intersection where it can look in both directions simultaneously.

Deep learning on the edge

Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS P4705-PLVE can detect and classify humans, vehicles, and types of vehicles all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Cost-efficient installation

With two camera heads in one camera, AXIS P4705-PLVE offers cost-effective installation. That's because there's only one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. Including an optional IP66/IP67 rated weather shield, this high performance camera is ideal for outdoor wall mounting. It offers edge storage for added storage capability and reliability. And, thanks to remote zoom and focus capabilities it eliminates the need for hands-on fine tuning and ensures fast and accurate installation. Furthermore, Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements.

Main Specification
General Information
Manufacturer Axis Communications
Manufacturer Part Number 02415-001
Manufacturer Website Address http://www.axis.com
Brand Name AXIS
Product Line Panoramic
Product Series P47
Product Model P4705-PLVE
Product Name AXIS P4705-PLVE Panoramic Camera
Product Type Network Camera
Technical Information
HD Recording Yes
Recording Formats Full HD
Night Vision Yes
Night Vision Distance 49.21 ft
Night Vision Type Infrared
Display & Graphics
Image Sensor Type RGB CMOS
Color Supported Color
Field of View Horizontal field of view: 107°-39° Vertical field of view: 55°-22° Diagonal field of view: 131°-45°
Effective Camera Resolution 2 Megapixel
Number of Sensors 2
Video
Video Formats H.264H (MPEG-4 Part 10/AVC)
Video Formats H.264H
Video Formats H.264
Video Formats H.264M (MPEG-4 Part 10/AVC)
Video Formats Zipstream
Video Formats H.265 (MPEG-H Part 2/HEVC)
Video Formats H.265
Video Formats Motion JPEG
Video Formats H.264B
Video Formats H.264B (MPEG-4 Part 10/AVC)
Video Formats H.264M
Maximum Video Resolution 1920 x 1080
Maximum Frame Rate 60 fps
Lens
Lens Type Varifocal
Minimum Focal Length 3.26 mm
Maximum Focal Length 8.12 mm
Lens Included Yes
Minimum Aperture f/3.2
Maximum Aperture f/1.9
Optical Zoom 2.5x
Exposure
Shortest Shutter Speed 1/20000 Second
Longest Shutter Speed 1.5 Second
Network & Communication
Connectivity Technology Wired
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Power Source Type PoE
Physical Characteristics
Product Color White
Product Color Black
Mount Type Conduit Mount
Mount Type Gang Box Mount
Mount Type Junction Box Mount
Mount Type Tripod Mount
Mount Type Wall Mount
Height 3.5"
Width 5.2"
Length 8.2"
Weight (Approximate) 2.15 lb
Environmental Conditions
Minimum Operating Temperature -22°F (-30°C)
Maximum Operating Temperature 122°F (50°C)
Operating Humidity 100%
Miscellaneous
Features Video Management System
Features HTTPS Encryption
Features Privacy Masking
Features Human Detection
Features Motion Detection
Features Day/Night
Features Password Protection
Features Vehicle Detection
Features SD Card Local Storage
Features Wide Dynamic Range
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Ingress Protection Rating IP67
Ingress Protection Rating IP66
Warranty
Limited Warranty 5 Year
