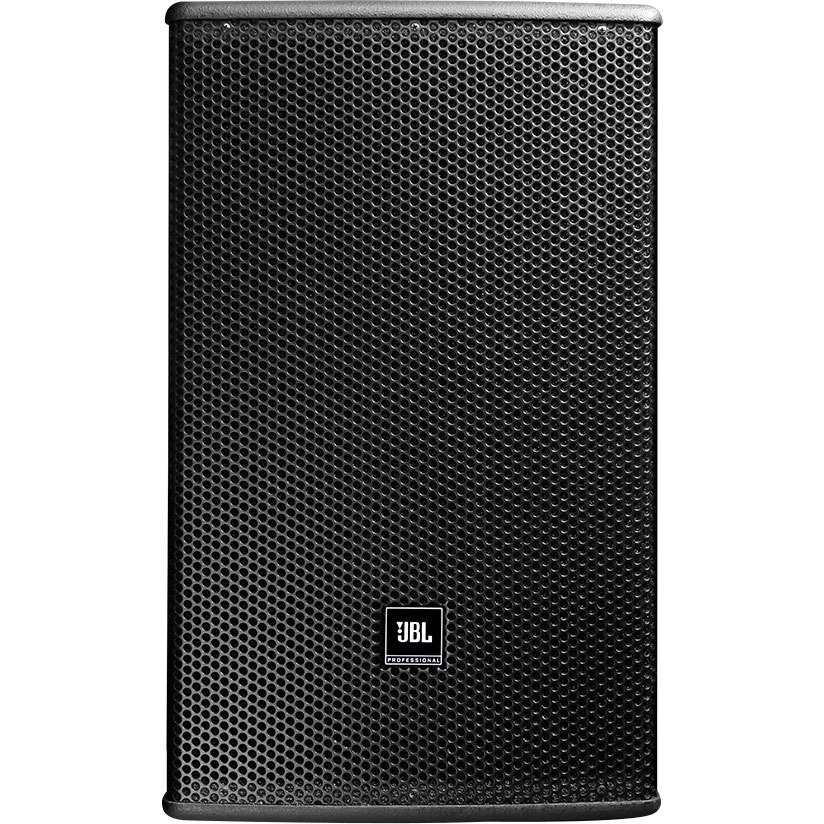

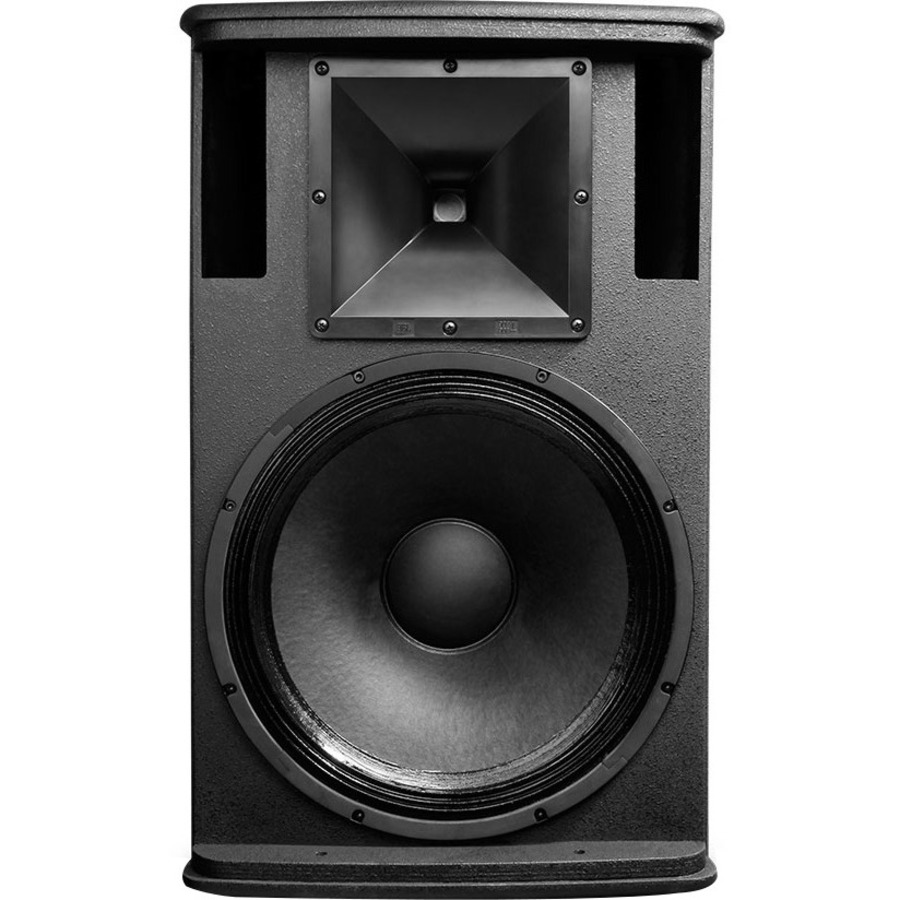

AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High slope passive crossovers minimize band overlap and well-controlled offaxis response.

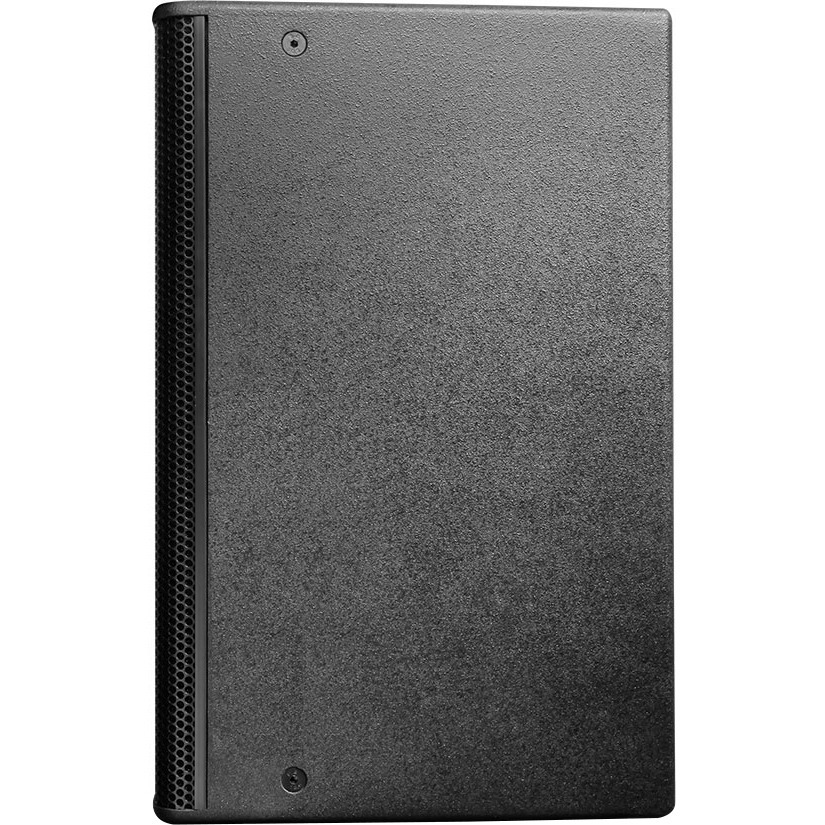

The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.
AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
General Information | |
Manufacturer | Harman International Industries, Inc |
Manufacturer Part Number | AC599-WH |
Manufacturer Website Address | http://www.harman.com |
Brand Name | JBL Professional |
Product Model | AC599 |
Product Name | 2-Way Full-Range Loudspeaker System with 1 x 15" LF |
Product Type | Speaker |
Technical Information | |
Crossover Type | 2-way |
RMS Output Power | 250 W |
PMPO Output Power | 1000 W |
Woofer Driver Size | 15.12" |
Tweeter Driver Size | 0.98" |
Minimum Frequency Response | 75 Hz |
Maximum Frequency Response | 18 kHz |
Impedance | 8 Ohm |
Sensitivity | 98 dB |
Physical Characteristics | |
Product Color | White |
Form Factor | Wall Mountable |
Miscellaneous | |
Application/Usage | Hospitality |
Application/Usage | House of Worship |
Application/Usage | Multi Media Space |
Application/Usage | Club |
Application/Usage | Retail |
Application/Usage | Educational Facility |
Application/Usage | Presentation Room |
Application/Usage | Bar |
