Designed for Intel Alder Lake
The Alpine 17 CO is exclusively compatible with Socket LGA1700 and LGA1851 with Intel's Alder Lake CPUs.
Designed for Continuous Operation
The premium quality of the two ball bearings allows 24/7 continuous operation without compromising performance. Contamination and high temperatures affect this bearing much less than ordinary plain or magnetic bearings. Therefore, the double ball bearing is the perfect choice in working environments where you want to ensure continuous operation with a low failure rate.
Easy and Tool-Free Installation

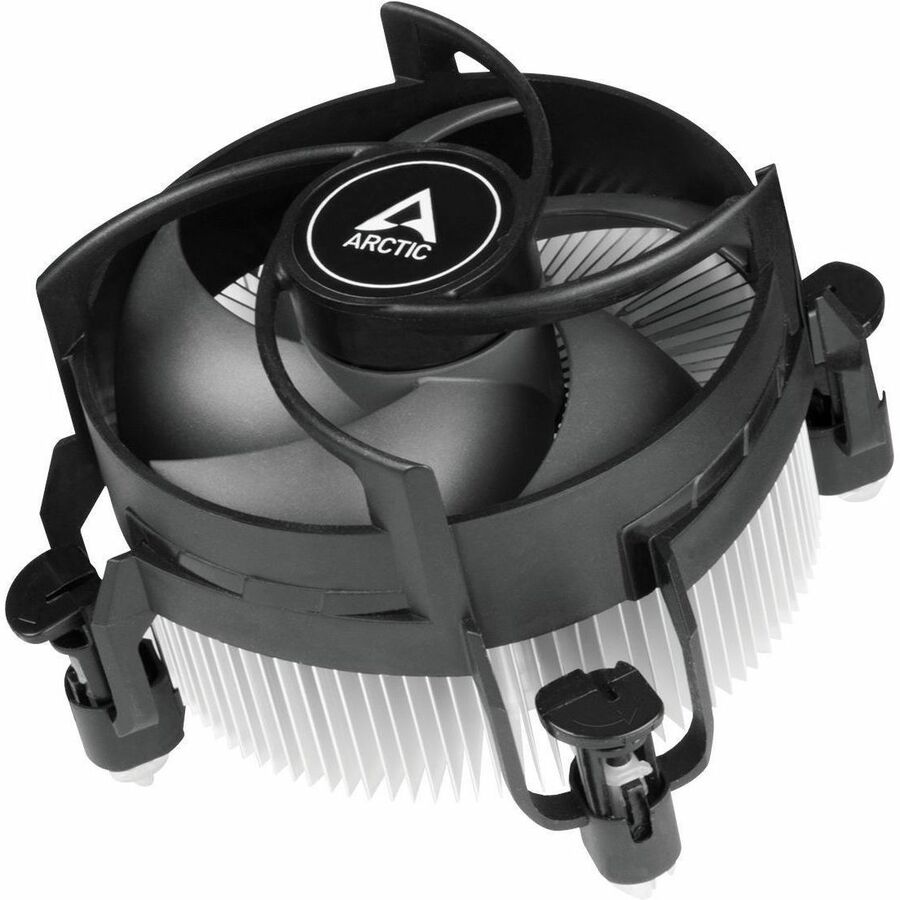

With the MX-4 already pre-applied, the Alpine 17 CO can be mounted directly. Thanks to the push pins, installation is a breeze. Additional tools are not needed to mount the cooler.
Full Control With Wide rpm Range

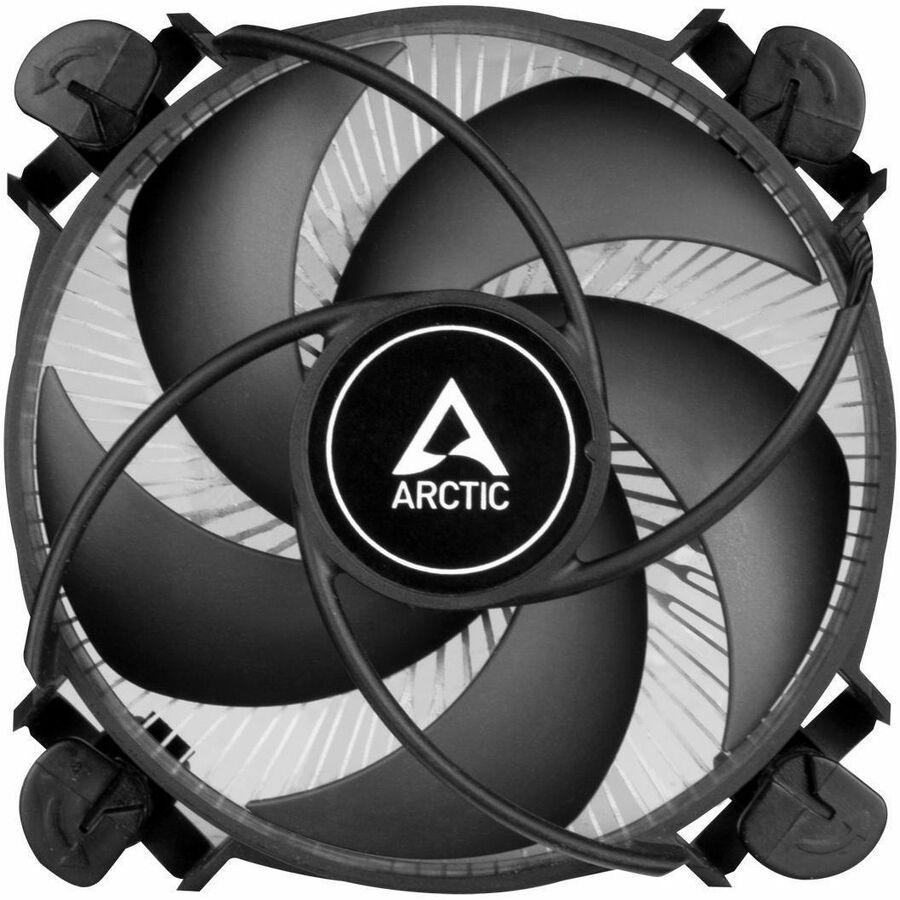

The Alpine 17 CO features a very wide PWM-controlled speed range. This reduces noise to the minimum while also guaranteeing the highest cooling performance.
Improved Cooling Performance Through Innovative Heat Sink Design

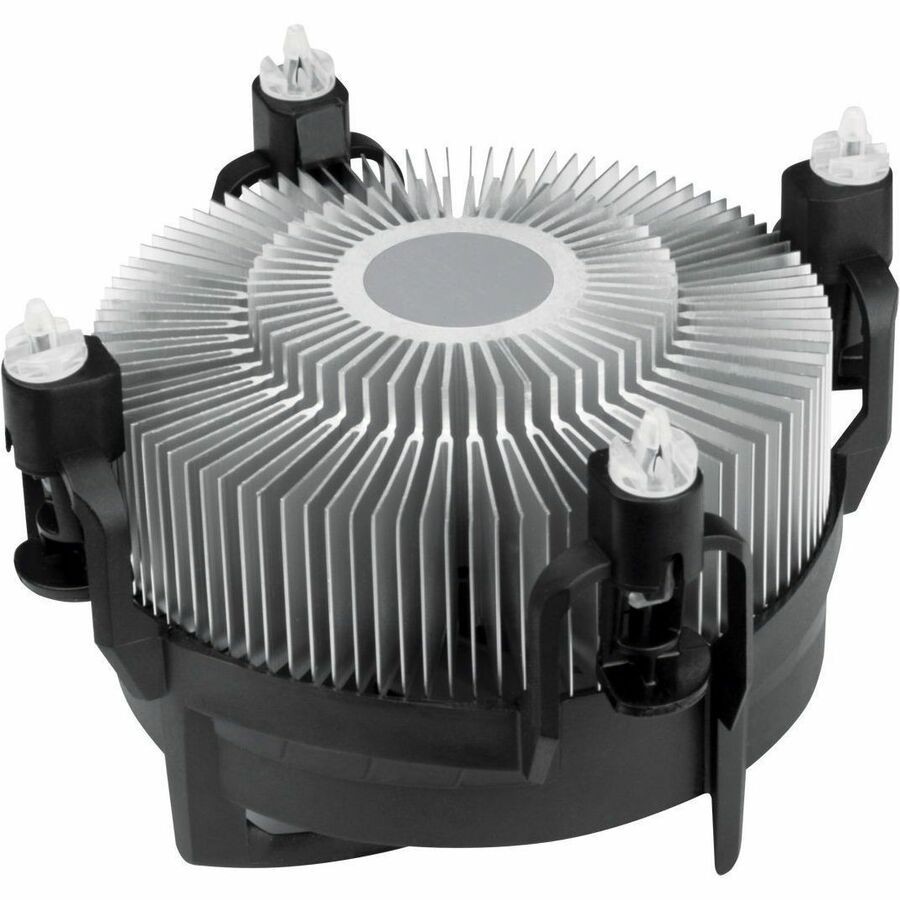

The extra fine cooling fins of the new Alpine are fanned out in a Y-shape. The high thermal conductivity of the aluminum is fully retained in the type of extrusion used. This novel production process makes it possible to produce a high-performance yet very compact radial heat sink. This results in an increase in the surface area of the heat sink, optimization of the airflow, and thus an increase in cooling performance.
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the Alpine 17 CO.
| General Information | |
| Manufacturer | Arctic Cooling |
| Manufacturer Part Number | ACALP00041A |
| Manufacturer Website Address | http://www.arctic-cooling.com |
| Brand Name | Arctic |
| Product Line | Alpine 17 CO |
| Product Name | Alpine 17 CO Cooling Fan/Heatsink |
| Product Type | Cooling Fan/Heatsink |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Fan Speed (Min) | 250 rpm |
| Fan Speed (Max) | 2700 rpm |
| Noise Levels (A-Weighted) | 24.4 dB(A) |
| Heatsink Information | |
| Compatible Intel Socket | Socket LGA-1851 |
| Compatible Intel Socket | LGA-1700 |
| Interfaces/Ports | |
| Connectors | 4-Pin |
| Power Description | |
| Rated Current | 90 mA |
| Physical Characteristics | |
| Heatsink Material | Aluminum |
| Material Details | Fin Material: Aluminum |
| Maximum Fan Diameter | 3.62" |
| Heatsink Height | 1.29" |
| Height | 3.1" |
| Width | 3.7" |
| Weight (Approximate) | 10.16 oz |
| Miscellaneous | |
| Application/Usage | CPU |
| Application/Usage | Processor |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 6 Year |
