ARCTIC COOLING
ARCTIC COOLING ACFAN00202A F12 SILENT (BLACK)
Mfg Part Number: ACFAN00202A , Item #: 4732561
, PO and Wire.
GREATER EFFICIENCY - LESS NOISE AT HIGHER AIRFLOW
At low fan speed, the motor noise is key. A motor developed in Germany with a new alloy/lubricant combination reduced friction and noise.
Our impeller is not just quiet but moves at a given fan speed more air than any other product.
LONG SERVICE LIFE

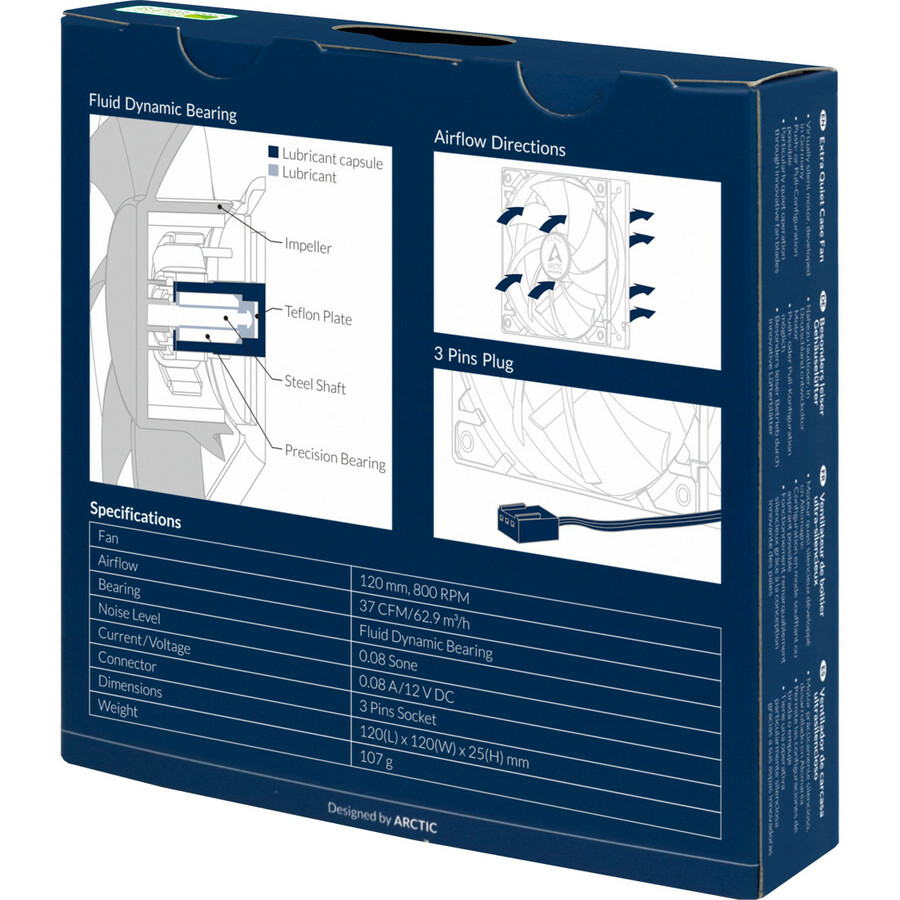

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

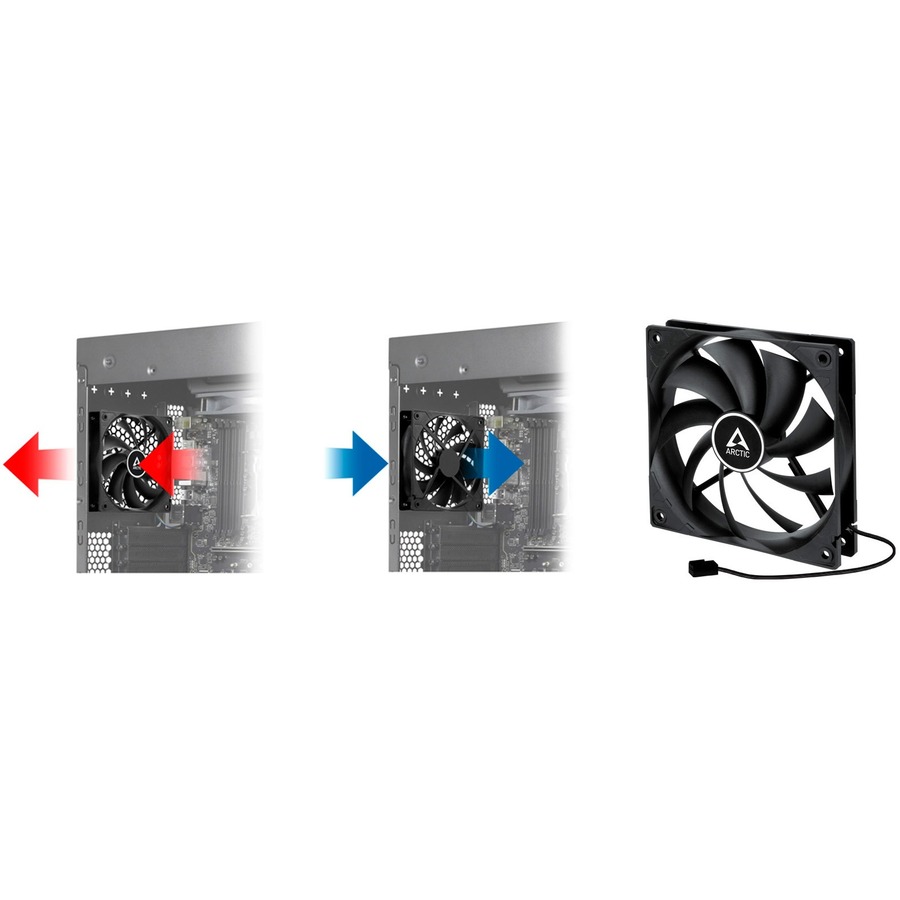

DIFFERENT INSTALLATION
- Exhaust hot air out of the case
- Intake cool air into the case
- 3-pin connector for mainboard and power supply that also works with 4-pin headers.
| General Information | |
| Manufacturer | Arctic Cooling |
| Manufacturer Part Number | ACFAN00202A |
| Manufacturer Website Address | http://www.arctic-cooling.com |
| Brand Name | Arctic |
| Product Line | F12 Silent |
| Product Name | Extra Quiet Case Fan |
| Product Type | Cooling Fan |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Speed (Max) | 800 rpm |
| Maximum Airflow | 37 CFM |
| Interfaces/Ports | |
| Connectors | 3-Pin-Connector |
| Physical Characteristics | |
| Height | 4.7" |
| Width | 4.7" |
| Weight (Approximate) | 3.77 oz |
| Miscellaneous | |
| Application/Usage | Power Supply |
| Application/Usage | Motherboard |
| Application/Usage | Case |
