LIAN LI

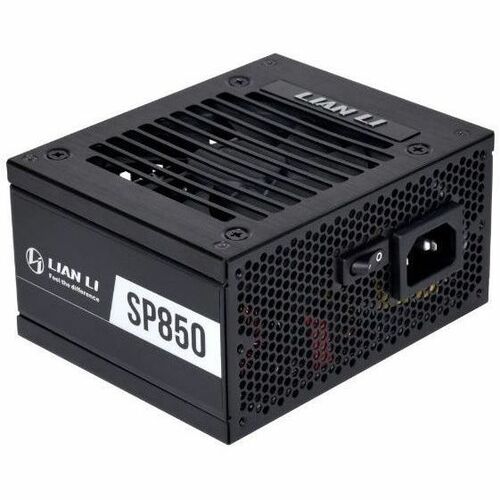

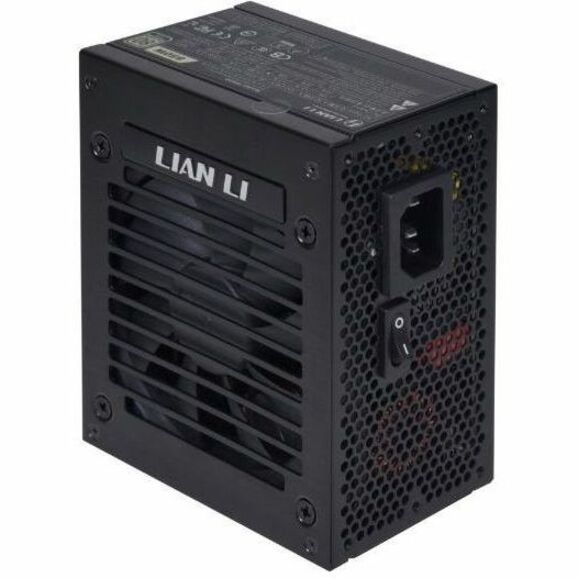

SP850 BLACK Lian Li SP850 - power supply - 850 Watt
Mfg Part Number: SP850 BLACK , Item #: 4730830
, PO and Wire.
SP850 Performance SFX Form Factor Power Supply
The SP850 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.
AVAILABLE IN TWO COLORS
The fully modular small PSU is offered in a sleek black aluminum housing, or in a completely white design.
- Black
- White
80 PLUS GOLD CERTIFICATE
SP850 achieves 91.55% efficiency 115VAC at 50% load, which edges close to the 80PLUS PLATINIUM a requirement at 92% efficiency 115VAC at 50%, ensuring less power wastage.
SP850 COMPOSITION
- Aesthetic - Aluminum Housing
- Silent - Zero RPM mode
- Powerful - 850 Watts
- Perfect Size - SFX Form
- Practical - Fully Modular Design
- Longevity - Japanese Electrolytic Capacitors
COOLING IN SILENCE
To achieve minimal acoustic levels, the SP850 features a 92mm hydraulic bearing fan that operates at zero RPM mode until the PSU reaches 40% load or once the ambient temperature reaches 60°C.
JAPANESE ELECTROLYTIC CAPACITORS
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability.
UPGRADE 12VHPWR CABLE
The new PCIe 5.0 12+4-pin cable is 16 AWG size to transfer 600W and doesn't need the use of an adaptor for the latest GPUs.
NOTES FOR THE USE OF CABLE
- Make sure that all components (inluding GPU/ CPU/RAM...) shouldn't exceed the waltage of the PSU.
- All connectors shall be insert tightly.
- Do not bend the cable near the connector.

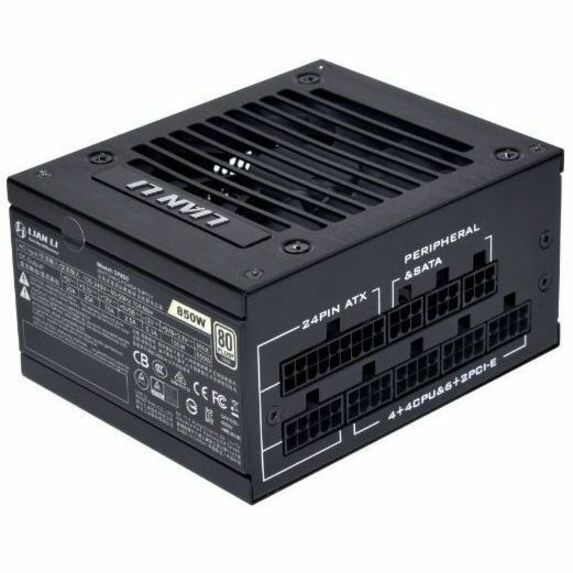

FULLY MODULAR BRAIDED CABLES
All necessary braided cables are included right out of the box, ensuring reduced cable clutter and a better aesthetic.
- Motherboard Connector x1
- CPU / ATX12V Connector x2
- 1 x 8 PIN PCIe Connector
- 2 x 8 PIN PCIe Connector x1
- SATA Connector x2
- Peripheral Connector x1
- 12VHPWR Connector x1
MULTI POWER CORD TYPES | SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Over Voltage Protection), OTP (Over Temperature Protection) and inrush current limiter that make the PSU operating in stable condition.
| General Information | |
| Manufacturer | Lian Li Industrial Co., Ltd |
| Manufacturer Part Number | SP850 BLACK |
| Manufacturer Website Address | http://www.lian-li.com |
| Brand Name | Lian Li |
| Product Model | SP850 BLACK |
| Product Name | SP850 BLACK 850W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 93.5% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Diameter | 92 mm |
| Protection Type | Over Power |
| Protection Type | Short Circuit |
| Protection Type | Under Voltage |
| Protection Type | Over Temperature |
| Protection Type | Over Current |
| Protection Type | Over Voltage |
| Modular | Yes |
| Power Description | |
| Output Power | 850 W |
| Input Frequency | 60Hz |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 4 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 3 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | SFX |
| Form Factor | Internal |
| Height | 4.9" |
| Width | 2.5" |
| Depth | 3.9" |
| Miscellaneous | |
| Country of Origin | China |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
