EXTREME

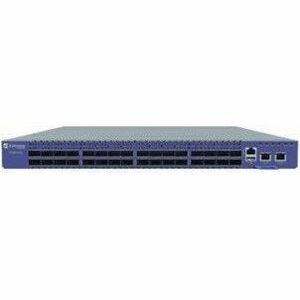

EXTREME 7720-32C-AC-F 7720-32C FRONT BACK AIR FLOW 32X40/100G
Mfg Part Number: 7720-32C-AC-F , Item #: 4729094
, PO and Wire.
Universal Aggregation/Core Switch Platform
The Extreme 7720 are purpose-built switches designed for high-performance aggregation and core applications. As a universal hardware platform, the 7720 provides end-to-end secure network segmentation, in addition to advanced policy capabilities, with a user-selectable choice of Extreme's flagship switch operating systems. This makes the 7720 a uniquely flexible platform that can be deployed in a variety of aggregation and core environments. The Extreme 7720 network hardware platform enables organizations to design networks that accommodate a variety of applications and east-west traffic patterns. With its high-density scale-out architecture, leading power efficiency, and airflow options, the 7720 platform delivers a cost-effective solution that optimizes power, cooling, and equipment room space, wherever your network operating center might be.
| General Information | |
| Manufacturer | Extreme Networks, Inc |
| Manufacturer Part Number | 772032CACF |
| Manufacturer Website Address | http://www.extremenetworks.com |
| Brand Name | Extreme Networks |
| Product Model | 7720-32C |
| Product Name | 7720-32C With Front-to-Back Airflow |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 2 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 2 x 100 Gigabit Ethernet Network |
| Port/Expansion Slot Details | 32 x 100 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 100GBase-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 32.0 |
| Expansion Slot Type | QSFP28 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3ba |
| Networking Standards | IEEE 802.3by |
| Networking Standards | IEEE 802.3ae |
| Networking Standards | IEEE 802.3bm |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 405 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 22.4" |
| Weight (Approximate) | 16.30 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Network |
| Application/Usage | Business |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
