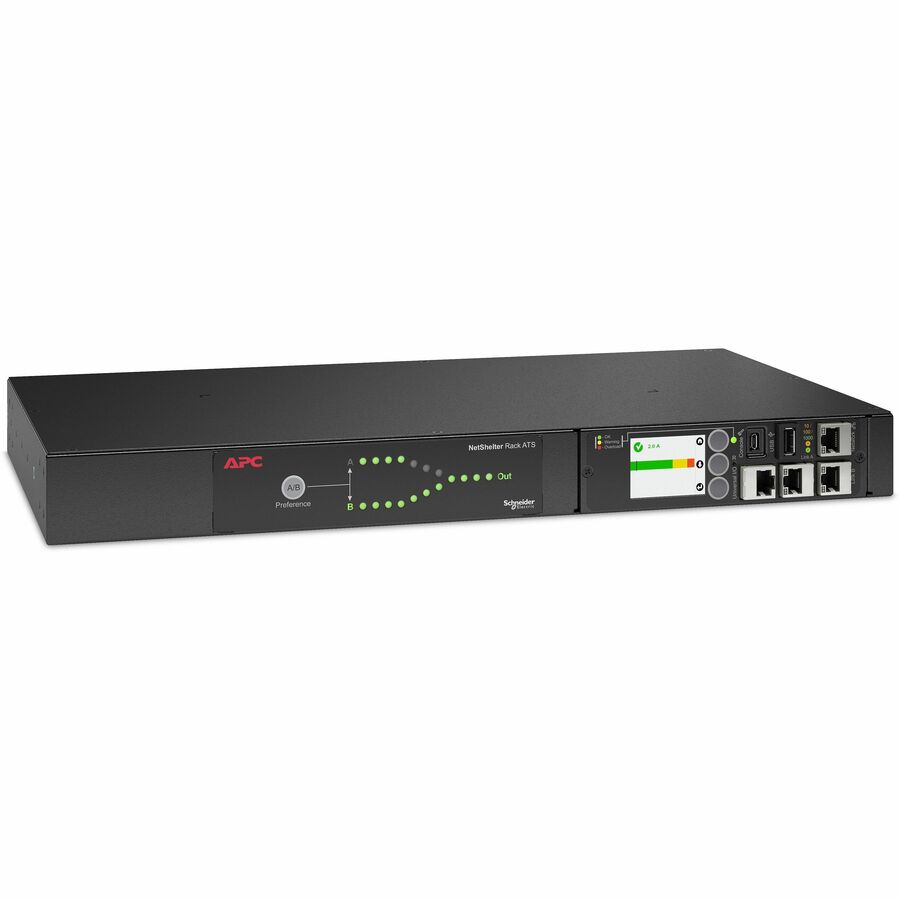

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10A rated current, 230V rated voltage and 2000VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP4421A |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC |
| Product Line | NetShelter |
| Product Name | NetShelter Automatic Transfer Switch |
| Product Type | Automatic Transfer Switch |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 10A (2P + E) |
| Receptacles | 12 x IEC 60320 C13 |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Current | 10 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| Mounting Preference | Horizontal |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17" |
| Depth | 9.3" |
| Weight (Approximate) | 8.66 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | EN 55022 class A|FCC part 15 class A |
| Product Take Back Program | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP4421A_ROHS_DECLARATION&p_FileName=AP4421AKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AP4421A_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AP4421A_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712015EN&p_File_name=ENVPEP1712015_EN.pdf |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712015_EN&p_File_name=ENVEOLI1712015_EN.pdf |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| REACH free of SVHC | No |
| SCIP Number | 2596f23e-8f37-45ab-8e70-ca58eb98cd8c |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
| Halogen Content Performance | Product contains halogen above thresholds |
| Reach Compliance Date | 2/1/2026 |
| Sustainable Packaging | No |
| Packaging Contains Recycled Cardboard | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
