High-resolution pan-tilt-zoom camera with a 360° fisheye lens and built-in IR LEDs for panoramic, around-the-clock surveillance.

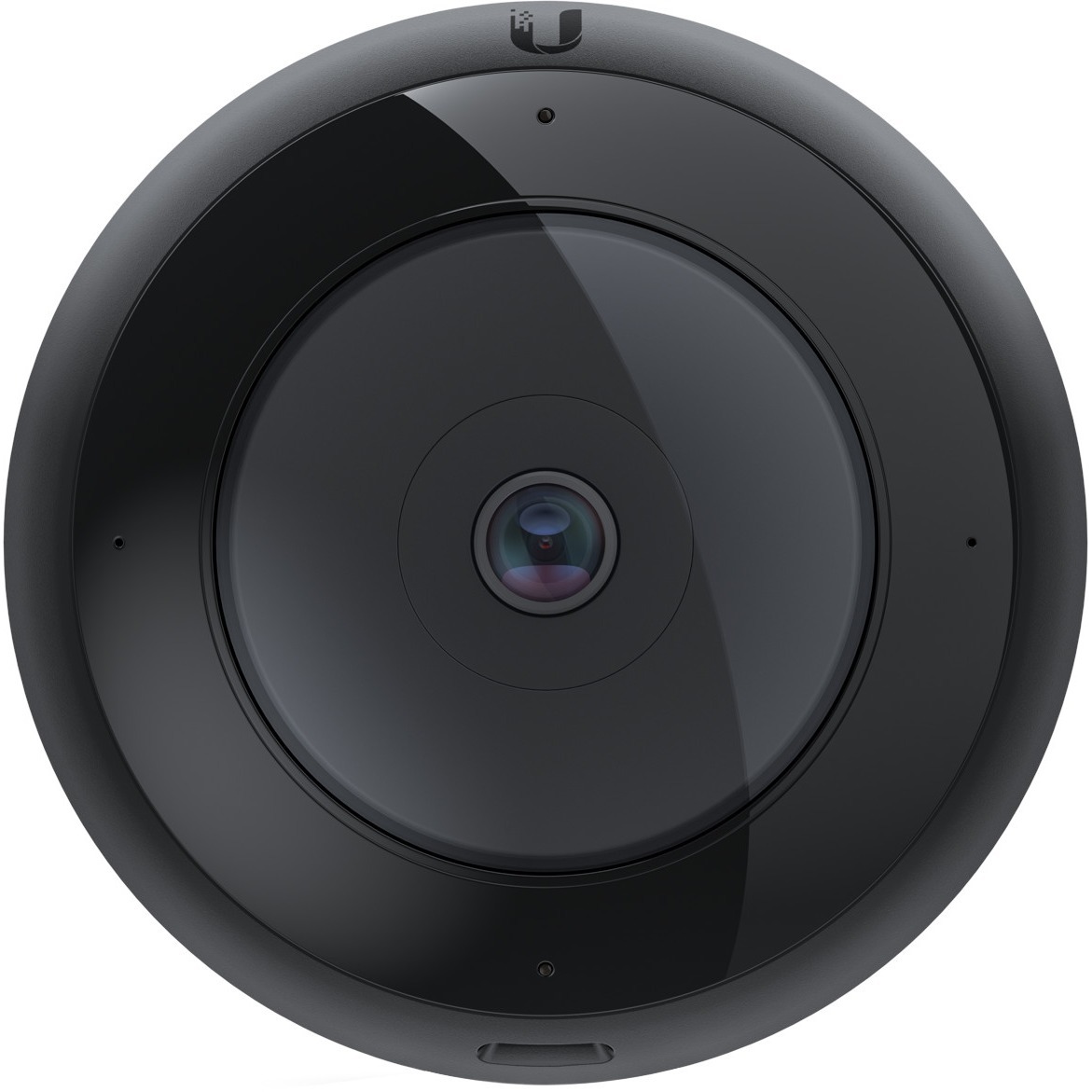

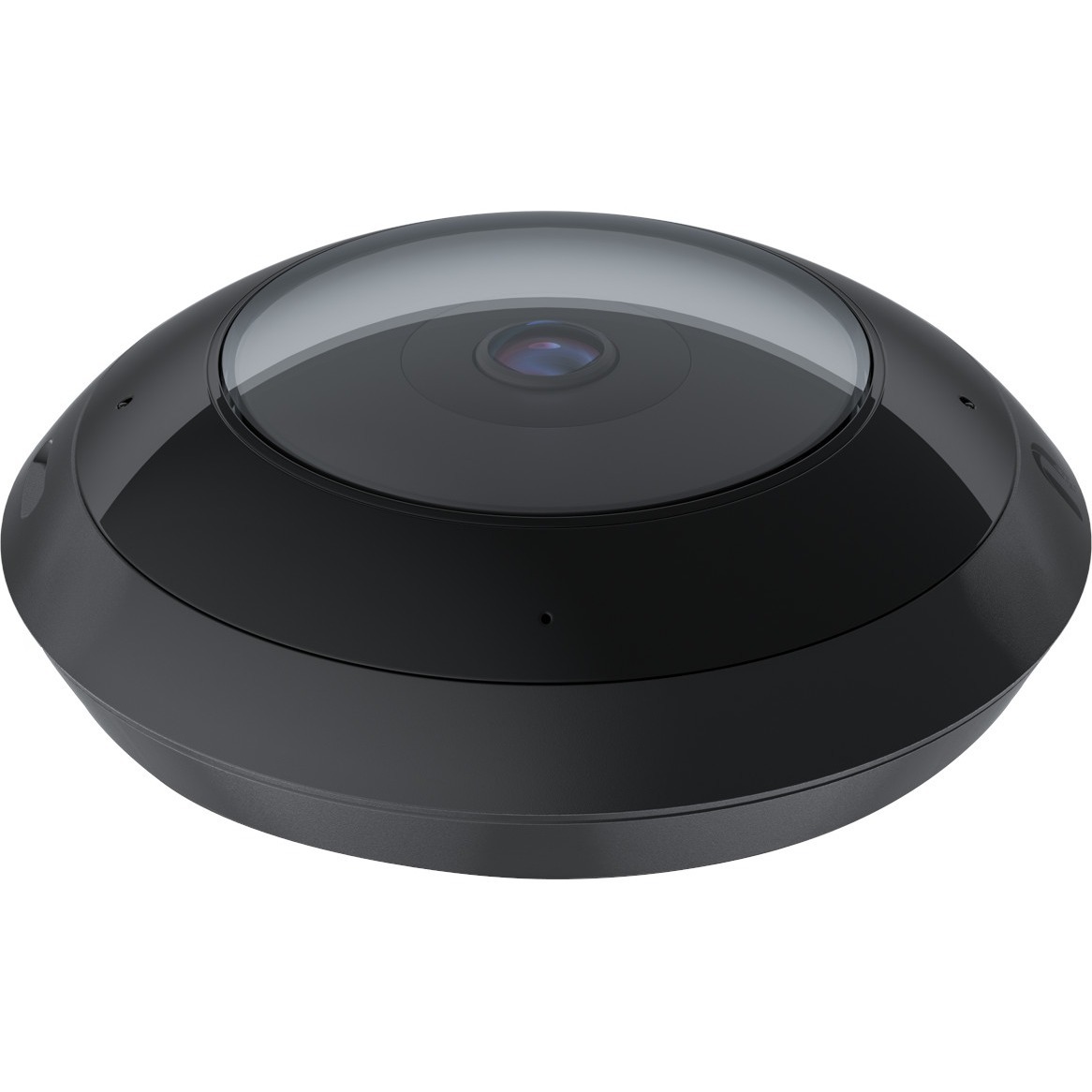

The Camera AI 360 (AI 360) is a pan-tilt-zoom (PTZ) camera that provides panoramic, overhead surveillance of heavily populated indoor and outdoor areas. The AI 360 streams sharp 1920x1920 video at a smooth 30 frames per second (FPS), and its built-in IR LEDs ensure that every frame is crystal clear-day or night. Equipped with a 5 MP CMOS sensor and an ultra-wide, 360° fisheye lens, the AI 360 can quickly detect finite details within its expansive coverage area and capture them with pristine clarity. It's also protected with rugged, weather and tamper-resistant housing, making it an ideal choice for shopping centers, parking lots, airports, train stations, and other transportation hubs. The AI 360 is a sophisticated, feature-rich camera, but it's also designed to be incredibly easy to set up and incorporate into existing Protect deployments. It can be adopted in minutes and managed with either the UniFi Protect web application or mobile app.
Features:
| General Information | |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UVC-AI-360 |
| Manufacturer Website Address | http://www.ui.com |
| Brand Name | Ubiquiti |
| Product Line | UniFi |
| Product Name | Camera AI 360 |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 360° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Maximum Video Resolution | 1920 x 1920 |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 48 V DC |
| Power Source Type | PoE |
| Power Source Type | DC |
| Physical Characteristics | |
| Form Factor | Fisheye |
| Durability | Weather Proof |
| Durability | Weather Resistant |
| Durability | Tamper Resistant |
| Diameter | 5.8" |
| Weight (Approximate) | 1.44 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | 68°F (20°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | White Balance |
| Features | PTZ |
| Features | Rugged Design |
| Features | 2D Noise Reduction |
| Features | 3D Noise Reduction |
| Features | Built-in Speaker |
| Features | SD Card Local Storage |
| Features | Built-in Microphone |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK08 |
| Ingress Protection Rating | IPX4 |
