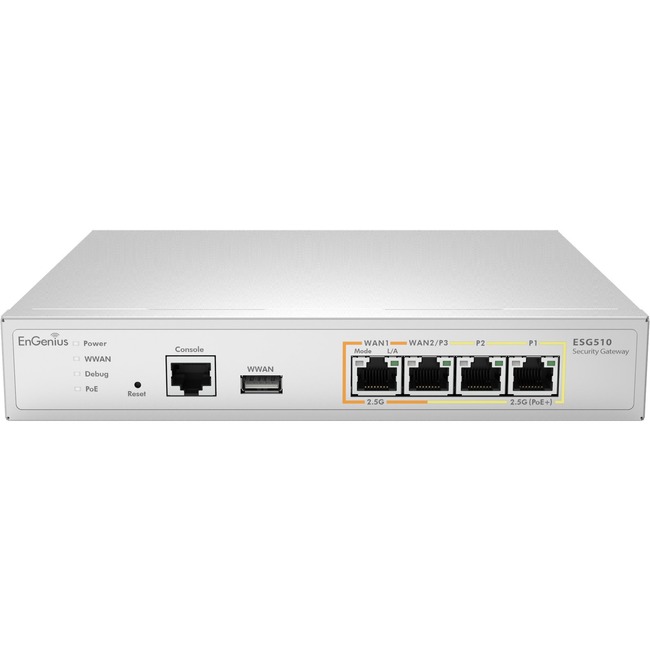

ENGENIUS CLOUD MANAGED ESG510 1.6 GHZ QUAD-CORE SECURITY GATEWAY WITH DUAL-WAN 2

Mfg Part Number:  ESG510
Image may not reflect the actual item.
Price: $499.55 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Aug 28, 2025
No Sales Tax except these states
, PO and Wire.

The EnGenius Cloud security gateway unifies your network perfectly, providing your IT team with an incredibly easy setup, enterprise-level security, and an end-to-end network solution that can be cloud-managed from absolutely anywhere. The gateway is that crucial first line of defense-improving the flow of network traffic while delivering an extra layer of protection against increasingly sophisticated cyberattacks and malware.

High Speed 2.5 Gigabit WAN and LAN Ports

The security gateway has two WAN and two LAN ports capable of up to 2.5G speeds-more than double the speed of most gateways today. The gateway has not only high-speed Ethernet connections but a high inline 2.5Gbps architecture for superior uplink and downlink transmissions without the bottlenecks.

High-Efficiency Stateful Firewall

The EnGenius security gateway has a stateful firewall with maximum throughput up to 2.35Gbps while quickly blocking the types of attacks that exploit protocol vulnerabilities. The stateful firewall integrates corporate security policies and real-time filtering of malicious internet traffic.

Uninterrupted Connection with WAN & Cellular Link

The dual 2.5 Gigabit WAN ports are capable of highly efficient load-balancing, increasing overall WAN bandwidth. The gateway also features redundant WAN link and cellular failover, automatically switching itself to a backup WAN or 3G/4G/5G network in the event of WAN uplink failure.

Secure Site-To-Site and Client VPN

The EnGenius SECURITY GATEWAY features site-to-site and client VPN that can be activated in a few clicks without the hassle of configuring all VPN detail parameters, allowing businesses to create secure, private connections for communication and remote work.

Self-Healing Auto VPN

EnGenius Cloud continually monitors EnGenius gateway VPN connections and automatically updates VPN parameters to all peers while maintaining VPN connection even with WAN IP address reassignment or port forwarding changes.

Main Specification
General Information
Manufacturer EnGenius Technologies, Inc
Manufacturer Part Number ESG510
Manufacturer Website Address http://www.engeniustech.com
Brand Name EnGenius
Product Name Cloud Security Gateway
Product Type High Availability Firewall
Technical Information
Firewall Protection Supported Dead Peer Detection
Firewall Protection Supported Stateful Packet Filtering
Firewall Throughput 4 Gbit/s
Encryption Standard SHA-2 256-bit
Encryption Standard MD5
Encryption Standard DES
Encryption Standard AES (256-bit)
Encryption Standard 3DES
Encryption Standard SHA-1
Number of VPN Supported 200
Interfaces/Ports
Total Number of Ports 4
USB Yes
PoE (RJ-45) Port Yes
Number of Network (RJ-45) Ports 4
Media & Performance
VPN Throughput 121.25 MB/s
Network & Communication
Cellular Data Connectivity Technology LTE
Cellular Generation 5G
Ethernet Technology 2.5 Gigabit Ethernet
Network Standard 2.5GBase-T
Wireless Specifications
Wireless LAN Yes
Management & Protocols
Manageable Yes
Physical Characteristics
Form Factor Wall Mountable
Height 1.4"
Width 8.3"
Weight (Approximate) 2.14 lb
Miscellaneous
Package Contents
  • Cloud Security Gateway
  • Power Adapter
  • Power Cord
  • RJ-45 Console Cable
  • Wall Mount Kit
  • Quick Installation Guide
Warranty
Limited Warranty 2 Year
