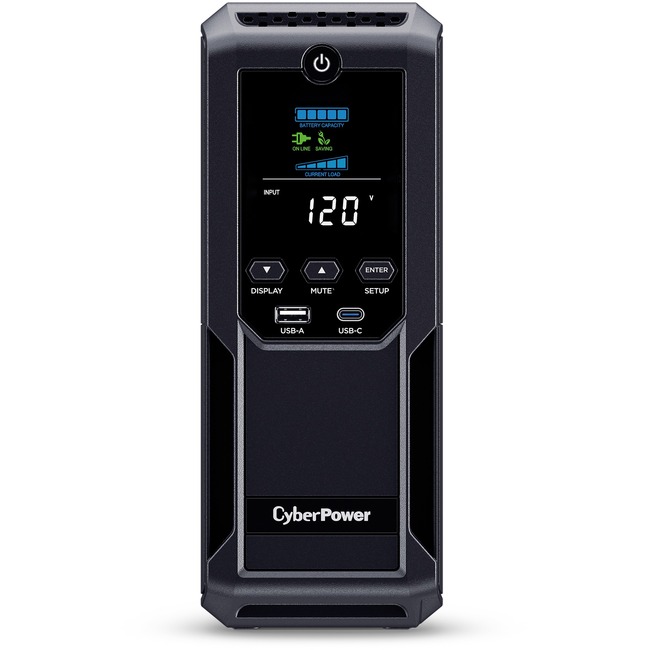

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1350AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1350AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1350AVRLCD3 comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | CP1350AVRLCD3 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | Intelligent LCD UPS |
| Product Model | CP1350AVRLCD3 |
| Product Name | CP1350AVRLCD3 Intelligent LCD UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | USB Type C |
| Receptacle Type | USB Type A |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 1 x USB Type A |
| Receptacle Detail | 1 x USB Type C |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Dataline Protection | RG-6 |
| Dataline Protection | RJ-45 |
| Dataline Protection | Coax |
| Overload Protection | Yes |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Power Description | |
| Load Capacity (VA) | 1350 VA |
| Load Capacity (Watt) | 815 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Simulated Sine Wave |
| Surge Energy Rating | 1500 J |
| Management | |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 2 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 10.2" |
| Width | 3.9" |
| Depth | 13.8" |
| Form Factor | Mini-tower |
| Weight (Approximate) | 23.81 lb |
| Miscellaneous | |
| Additional Information | |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
