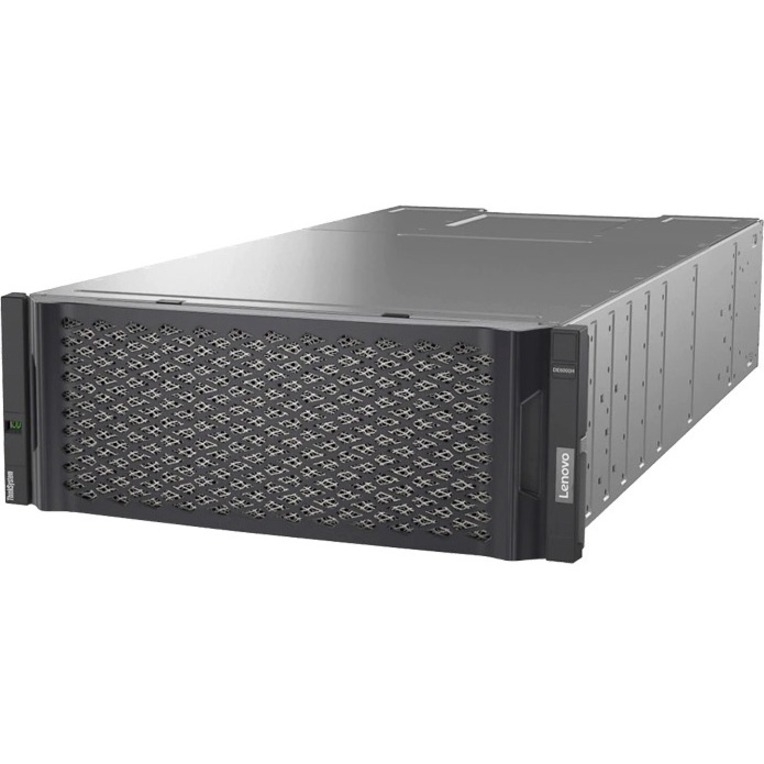

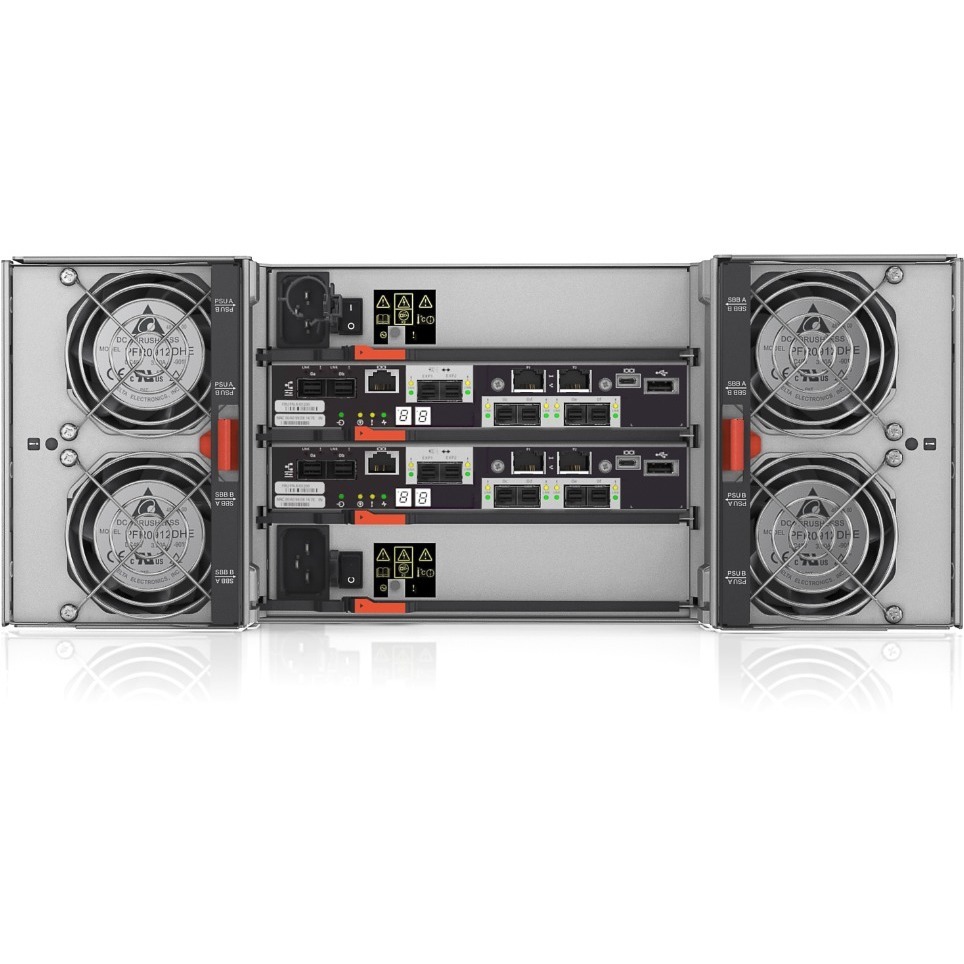

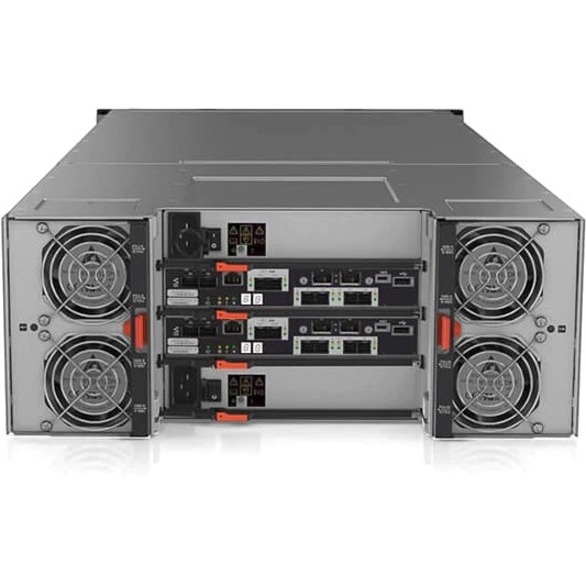

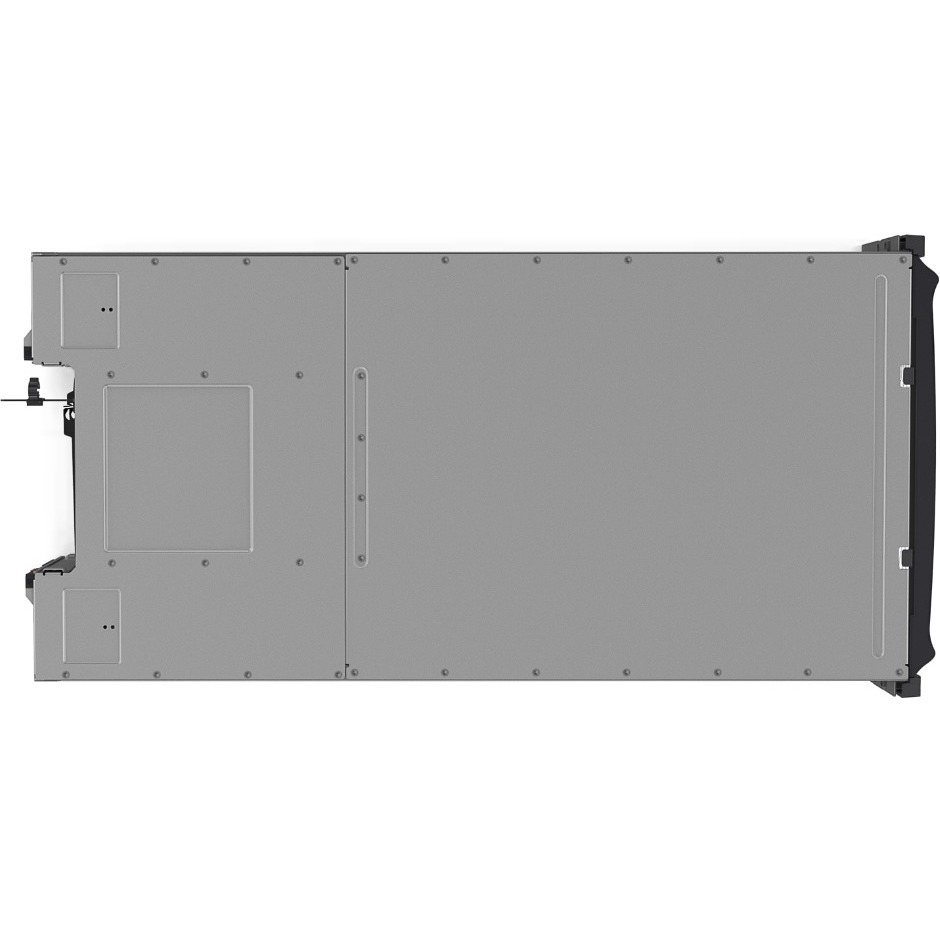

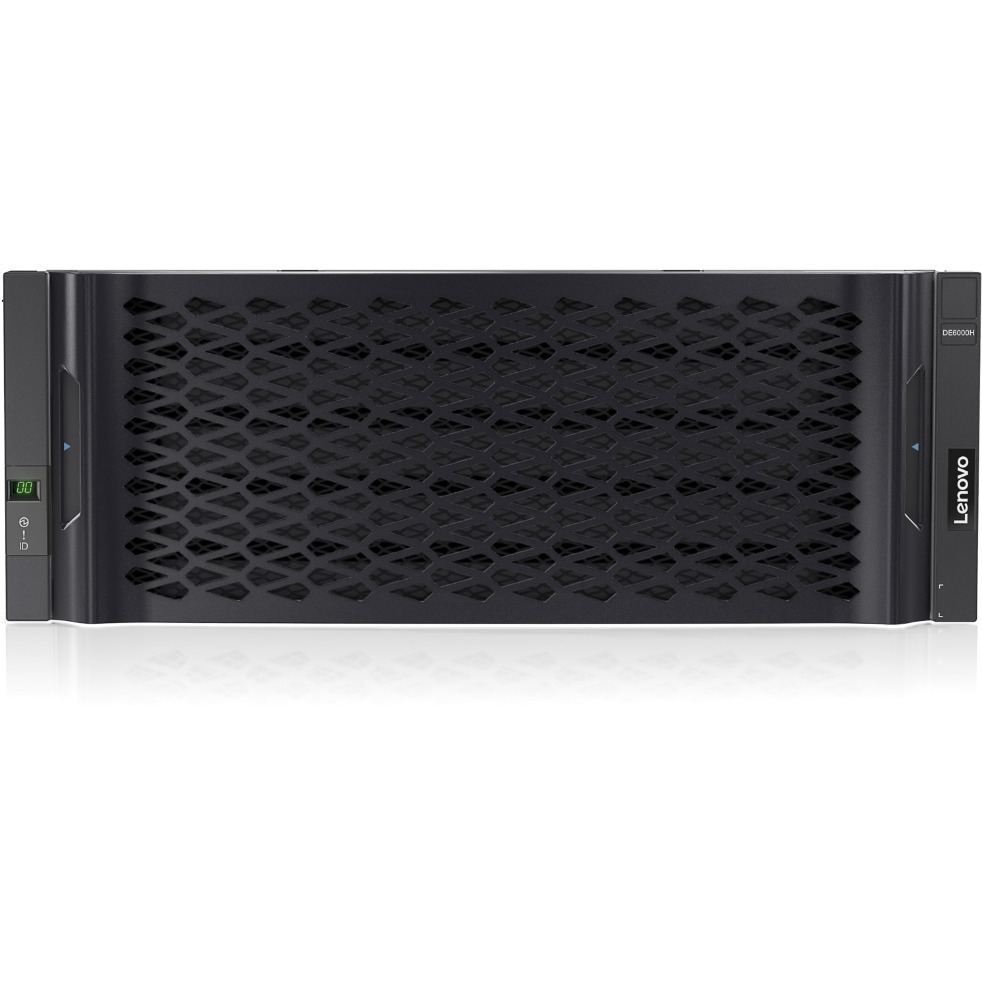

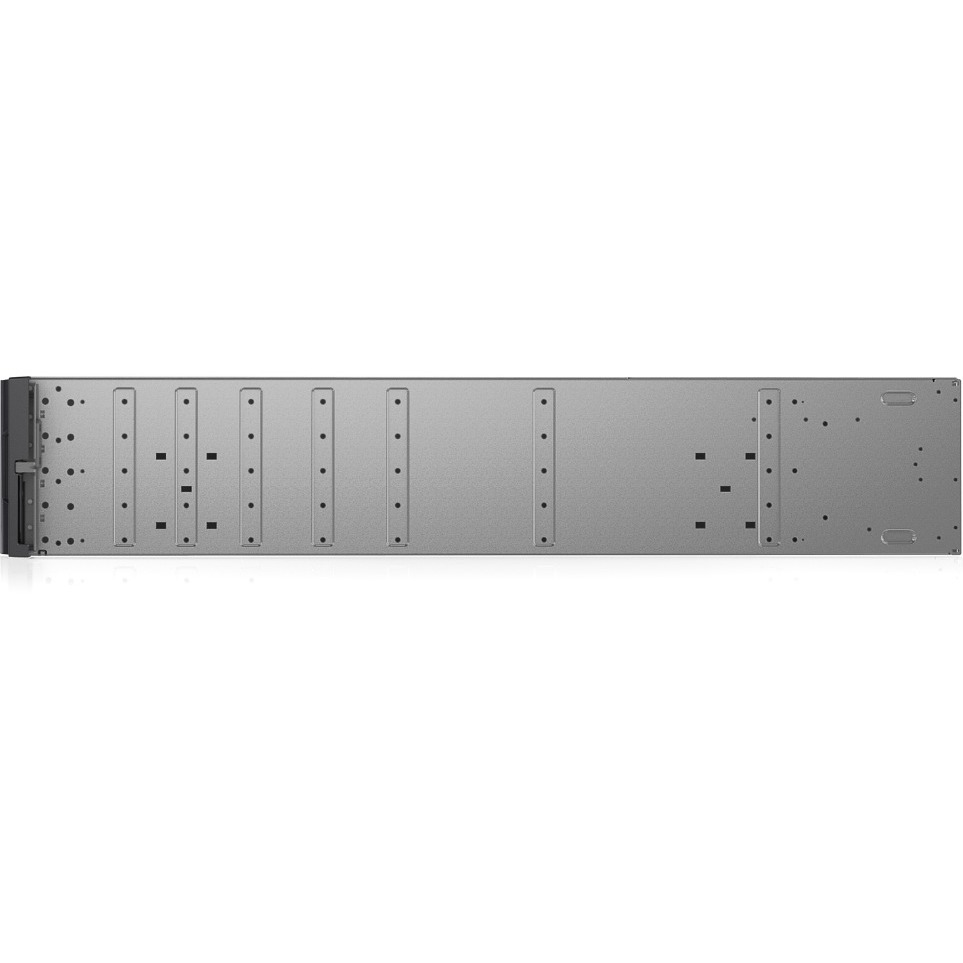

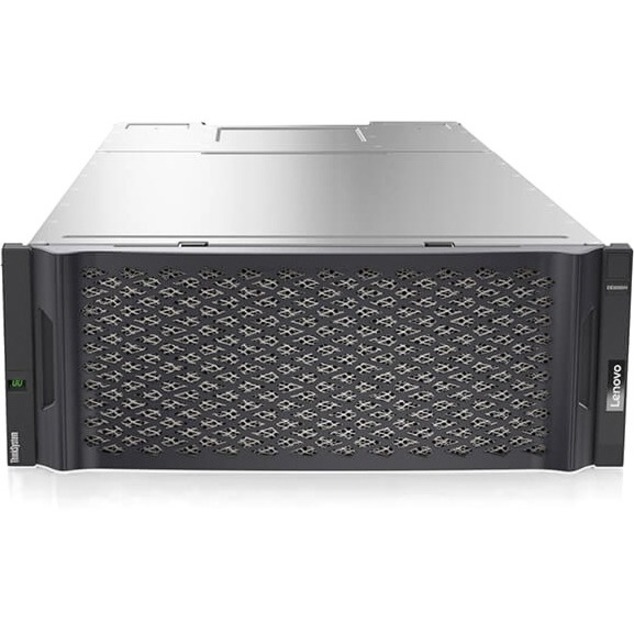

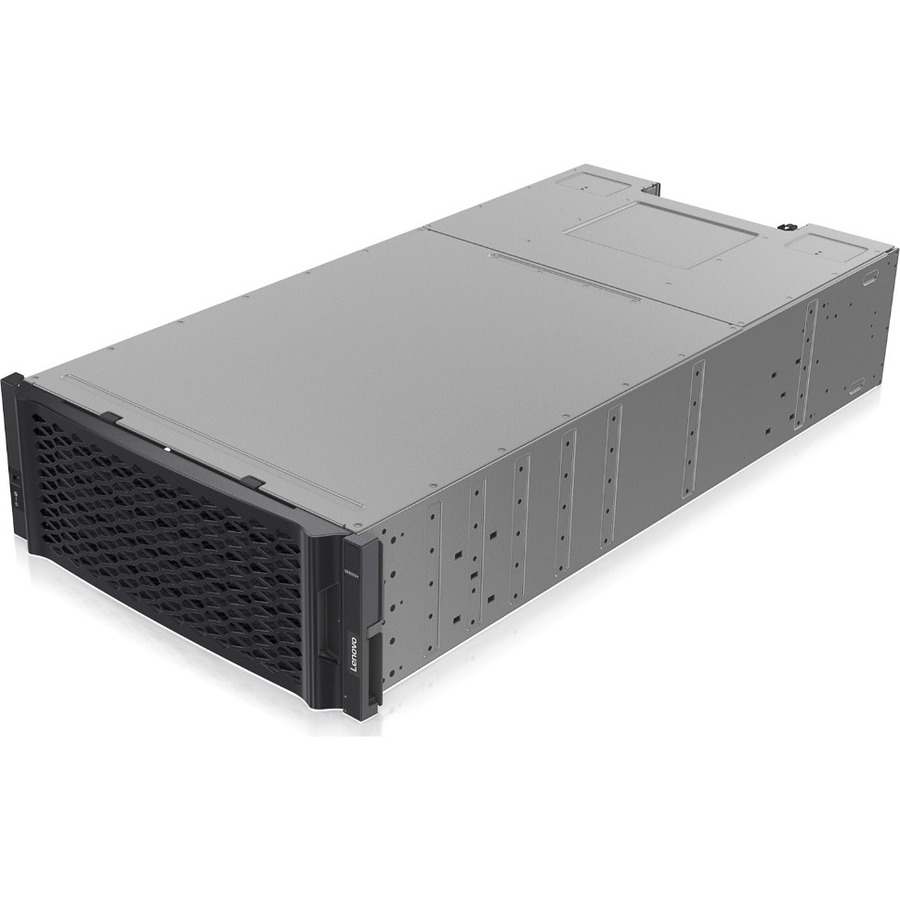

LENOVO DCG BTO STORAGE 7Y80A00LWW DE CONTROLLER DE6000H 32G 12G SAS 4U60 LFF GEN2

Lenovo ThinkSystem DE6000H is a scalable, hybrid mid-range storage system that is designed to provide high performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE6000H delivers enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE6000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

ThinkSystem DE6000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 16 GB or 64 GB system memory for a system total of 32 GB or 128 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, 8/16/32 Gb FC or NVMe/FC, or 25/40/100 Gb NVMe/RoCE host connections.

General Information
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7Y80A00LWW
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	DE
Product Model	DE6000H
Product Name	ThinkSystem DE6000H SAN Storage System
Product Type	SAN Storage System
Storage
Number of Hard Drives Supported	60
Number of Hard Drives Installed	No
Number of Solid State Drive Supported	60
Number of Solid State Drive Installed	No
Network & Communication
Ethernet Technology	Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays	60
Number of 3.5" Bays	60
Controllers
Number of Controllers	2
Controller Type	12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1, 3, 5, 6, 10
Interfaces/Ports
Host Interface	12Gb/s SAS
Number of SAS Ports (External)	8
Total Number of USB Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
Fibre Channel	Yes
Management & Protocols
Protocols	SNMP
Protocols	SMI-S
Protocols	SSL
Protocols	iSCSI
Protocols	SSH
Protocols	LDAP
Power Description
Number of Power Supplies Installed	2
Plug/Connector Type	C19 to IEC 320-C20
Maximum Power Supply Wattage	2325 W
Redundant Power Supply	Yes
Physical Characteristics
Height	6.9"
Width	17.7"
Depth	36.3"
Form Factor	Rack-mountable
Rack Height	4U
Weight (Approximate)	239.18 lb
Miscellaneous
Package Contents	ThinkSystem DE6000H SAN Storage System Rack Mount Kit 2 m USB Cable (USB Type A to Micro-USB) Quick Installation Guide Electronic Publications Flyer 2 x Power Cables
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	Three-year Customer-replaceable Unit And Onsite Limited Warranty With 9x5 Next Business Day (Nbd) Parts Delivered.
