APC

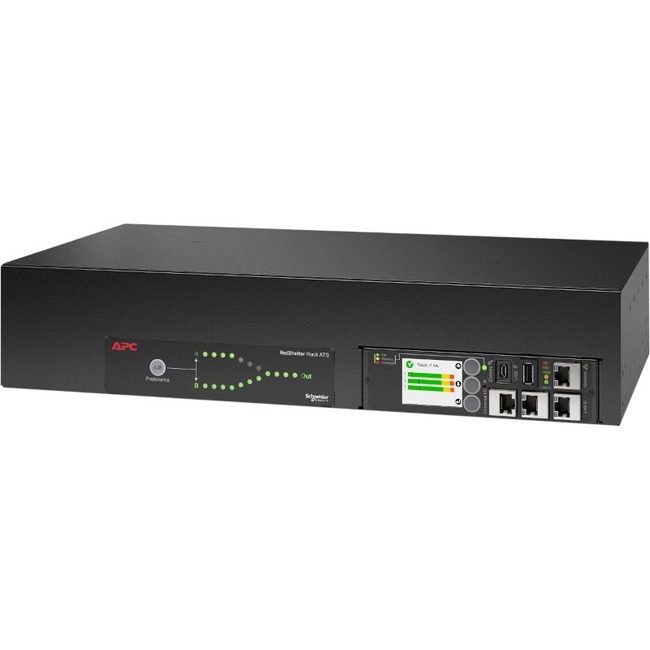

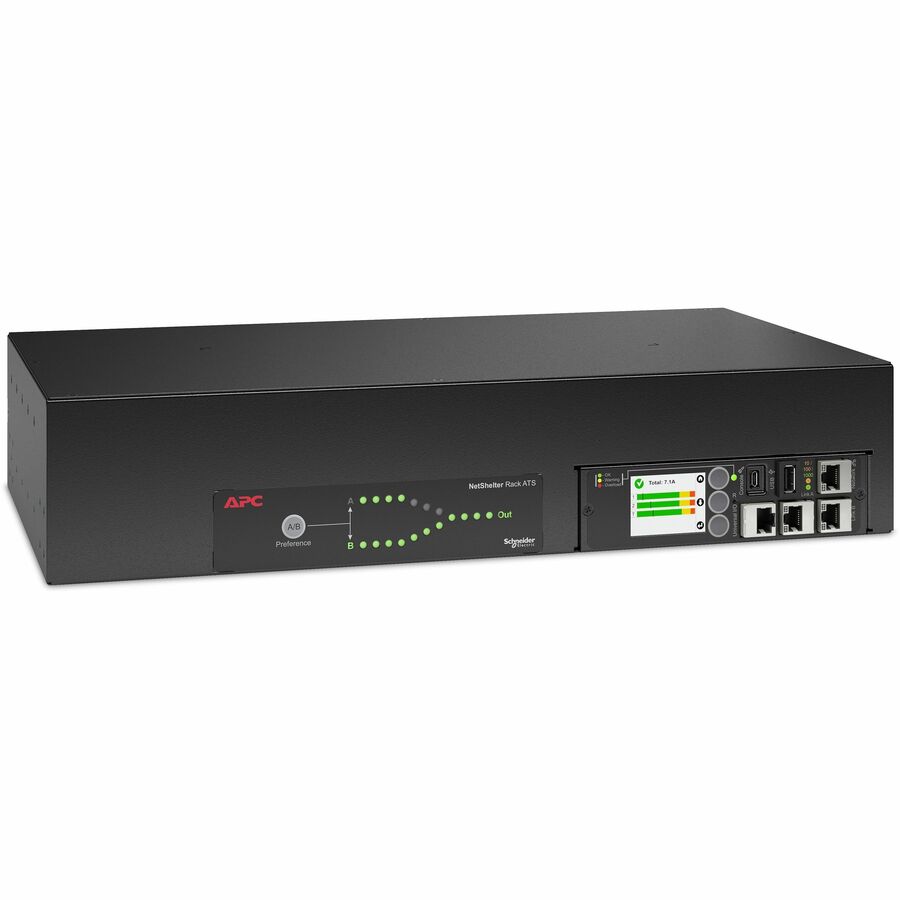

APC AP4432A RACK ATS, 200/208V, 30A, L6-30 IN, (16) C13 (2) C19 OUT
Mfg Part Number: AP4432A , Item #: 4714679
, PO and Wire.
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4432A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4432A is single phase 2U Rack ATS with 30A rated current, 200V/208V rated voltage and 4992VA load capacity. For North America region, the Regulatory Derated Input Current is 24A. It comes with inbuilt circuit breaker protection, 2 NEMA L6-30P inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP4432A |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter Automatic Transfer Switch |
| Product Type | Automatic Transfer Switch |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P 24A (2P + E) |
| Receptacles | 16 x IEC 60320 C13 |
| Receptacles | 2 x IEC 60320 C19 |
| Cord Length | 95.64" |
| Power Description | |
| Input Voltage | 200 V AC |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 200 V AC |
| Current | 30 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Mounting Location | Rear |
| Mounting Preference | No Preference |
| Mounting Preference | Horizontal |
| Rack Height | 2U |
| Height | 3.5" |
| Width | 17" |
| Depth | 9.3" |
| Weight (Approximate) | 14.51 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | PSE|TÜV-C|TÜV-NURTL |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP4432A_ROHS_DECLARATION&p_FileName=AP4432AKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559241364&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559241364&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712015EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712015_EN |
| REACH free of SVHC | No |
| Lead Free | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Optimized Energy Efficiency | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
