CISCO C9200CX-12T-2X2G-E Catalyst 9000 Compact Switch 12-port Dat

Introduction

Extend intent-based networking everywhere

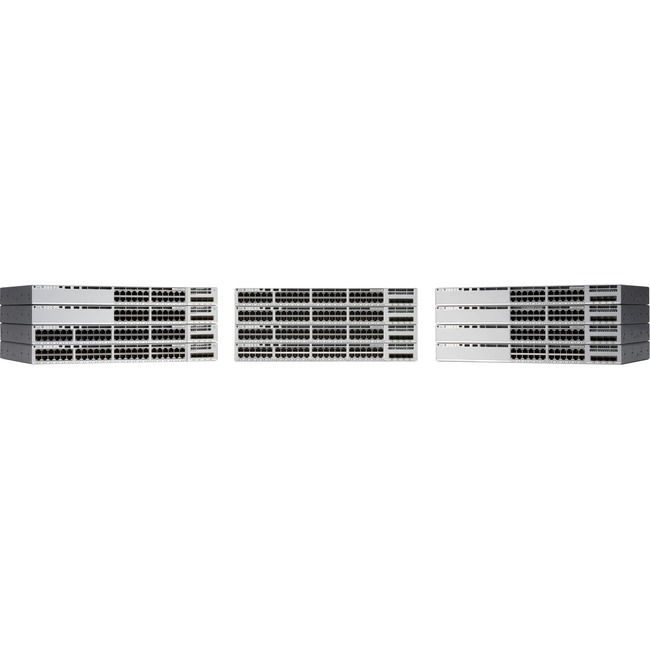

Cisco^® Catalyst^® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or Meraki cloud monitoring.

Product overview

Product highlights

• Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX.
• Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.
• Flexible downlink options with data, PoE+ or mGig
• Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
• UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
• Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family
• Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
• Advanced network monitoring using Full Flexible NetFlow

General Information
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	C9200CX-12T-2X2G-E
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Line	Catalyst
Product Series	9200
Product Model	C9200CX-12T-2X2G
Product Name	Catalyst C9200CX-12T-2X2G Ethernet Switch
Product Type	Ethernet Switch
Technical Information
Features	Fanless
Interfaces/Ports
Total Number of Network Ports	12
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	15 x Gigabit Ethernet Network
Port/Expansion Slot Details	2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Ethernet Technology	10 Gigabit Ethernet
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T
Network Technology	10GBase-X
I/O Expansions
Total Number of Expansion Slots	2.0
Expansion Slot Type	SFP+
Number of SFP+ Slots	2
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.3z
Networking Standards	IEEE 802.1w
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.1x
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.3ad
Networking Standards	IEEE 802.1D
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.1p
Management & Protocols
Manageable	Yes
Power Description
Power Source	Power Adapter
Physical Characteristics
Form Factor	Compact
Form Factor	DIN Rail Mountable
Form Factor	Under Table
Form Factor	Rack-mountable
Form Factor	Wall Mountable
Height	1.7"
Width	10.6"
Depth	6.5"
Weight (Approximate)	4 lb
Miscellaneous
Application/Usage	Business
