VERTIV
VERTIV GXT5-2000LVRT2UXLTAAN GXT5 TAA 2000VA 120V UPS, RACK/TOWER, RDU101
Mfg Part Number: GXT5-2000LVRT2UXLTAAN , Item #: 4710752
, PO and Wire.

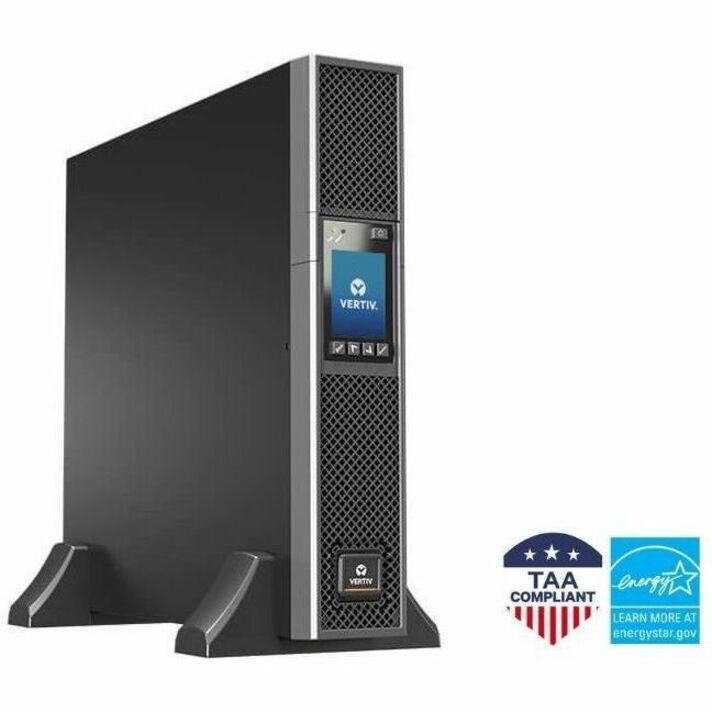

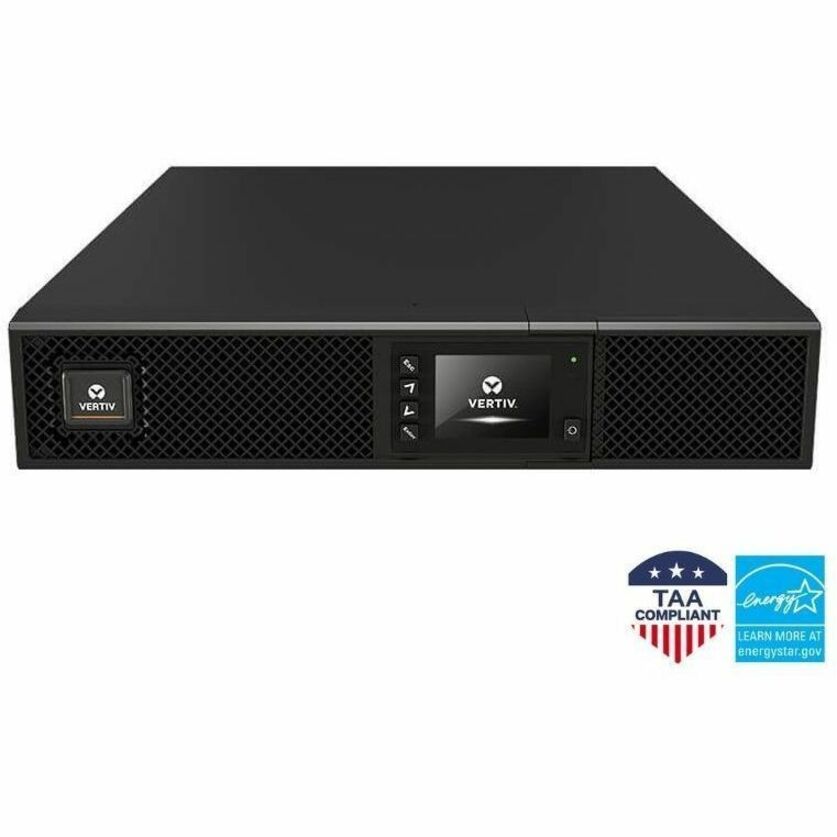

The Vertiv Liebert GXT5 TAA-compliant online UPS, with a capacity of 2000VA/1800W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure in centralized and edge applications. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. It can support a wide range of power environment including 110/115/120V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is Energy Star 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It comes with RDU101 network card for remote management.
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5-2000LVRT2UXLTAAN |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Liebert |
| Product Series | GXT5 |
| Product Name | GXT5 2000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Type | NEMA L5-20R |
| Receptacle Detail | 1 x NEMA L5-20R |
| Receptacle Detail | 6 x NEMA 5-15/20R |
| Phase | Single Phase |
| Application/Usage | Mission Critical Equipment |
| Application/Usage | IT Equipment |
| Application/Usage | Healthcare |
| Application/Usage | IT Infrastructure |
| Power Description | |
| Load Capacity (VA) | 2000 VA |
| Load Capacity (Watt) | 1800 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 60 V AC - 150 V AC |
| Output Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| Output Voltage | 115 V AC |
| Input Frequency | 70 Hz |
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 3 |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Number of External Battery Cabinets | 1 |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Environmental Conditions | |
| Environmental Sensors | Temperature Sensor |
| Environmental Sensors | Humidity Sensor |
| Environmental Sensors | Leak Detection Sensor |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 3.4" |
| Width | 16.9" |
| Depth | 18.5" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 47.50 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-Year Warranty with Optional Extended 2-year Warranty |
