SIIG CE-KV0B11-S1 2X1 USB-C 4K VIDEO KVM SWITCH

2x1 USB-C KVM Switch, allows you to control 2 USB-C 4K computers using one keyboard and mouse - HDMI 4K@60Hz, 18Gbps, HDCP 2.2, 7.1ch, USB 2.0, Switch Button, works with Apple, HP, Dell & Lenovo

Features
Easily control 2 USB-C DP Alt mode computers/tablets and switch a 4K HDMI display/monitor with one set of keyboard & mouse, a sturdy design to switching computers, and save your workspace for increased efficiently

Effortlessly Switch
Easily switching between computer/device via the top panel push button make this 2x1 USB-C 4K Video KVM Switch user-friendly to operate

4K Ultra HD Resolution
Allows you to connect a single UHD 4K (3840x2160) @60Hz YUV 4:4:4 8-bit and YUV 4:2:0 10-bit through a HDMI port to display the crystal-clear video quality. 3D and deep color are supported

High Performance
Offers a true 18Gbps video bandwidth and supports 7.1-ch. surround sound from HDMI port

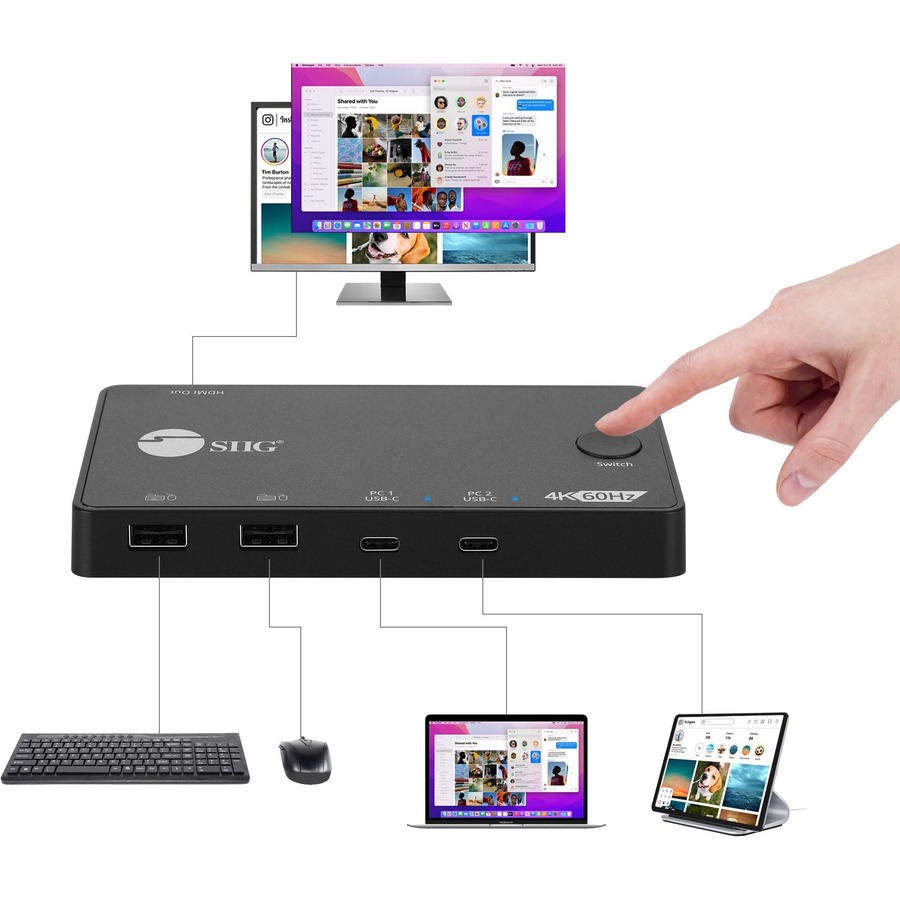

Multiple Connectivity Port
Comes with two USB-C or Thunderbolt 3/4 input ports, one HDMI video output port, two USB 2.0 for keyboard & mouse connection, one switch button

Connection

USB Data Transfer
Delivers two High Speed USB 2.0 Type-A ports up to 480Mbps data transfer rate for independent HID keyboard and mouse

Maximum Compatibility
Compatible with Windows® 11 / 10 and macOS® 12.x to 10.13
Supports Plug-n-play, no driver installation required

ABS Housing Design
Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency

Applications

• Media editing room
• Photo shooting studio
• A/V presentation room
• Meeting room
• Educational facilities
• Office
• Home workstation
• Workstation
• Medical office
• Control center
• Server room
• Testing lab

Need to Know Before Buying

1. Please confirm your two computers or tablets with USB-C ports that supports DP 1.2 Alt mode Thunderbolt 3/4, ensure supports USB power delivery 3.0. If you are not sure, please check the manual of the computer

2. Check the extended display/monitor with HDMI port and supports 4K@60Hz video resolution. IF you are not sure, please check the manual of the monitor

3. Comes with two SIIG USB-C to C cables for connecting two USB-C PCs or tables for best transfer and high quality

General Information
Manufacturer	SIIG, Inc
Manufacturer Part Number	CE-KV0B11-S1
Manufacturer Website Address	http://www.siig.com
Brand Name	SIIG
Product Name	2x1 USB-C 4K Video KVM Switch
Packaged Quantity	1
Product Type	KVM Switchbox
Technical Information
Number of Computers Supported	2
Number of Local Users Supported	1
Video
Maximum Video Resolution	3840 x 2160
Interfaces/Ports
USB	Yes
USB 2.0	Yes
HDMI	Yes
Number of USB Ports	4
Number of HDMI Ports	1
Physical Characteristics
Height	0.6"
Width	2.8"
Depth	5.5"
Weight (Approximate)	8.16 oz
Miscellaneous
Package Contents	2x1 USB-C 4K Video KVM Switch 2 x USB-C to C Cable 1 x User Reference Guide
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China
Warranty
Limited Warranty	2 Year
