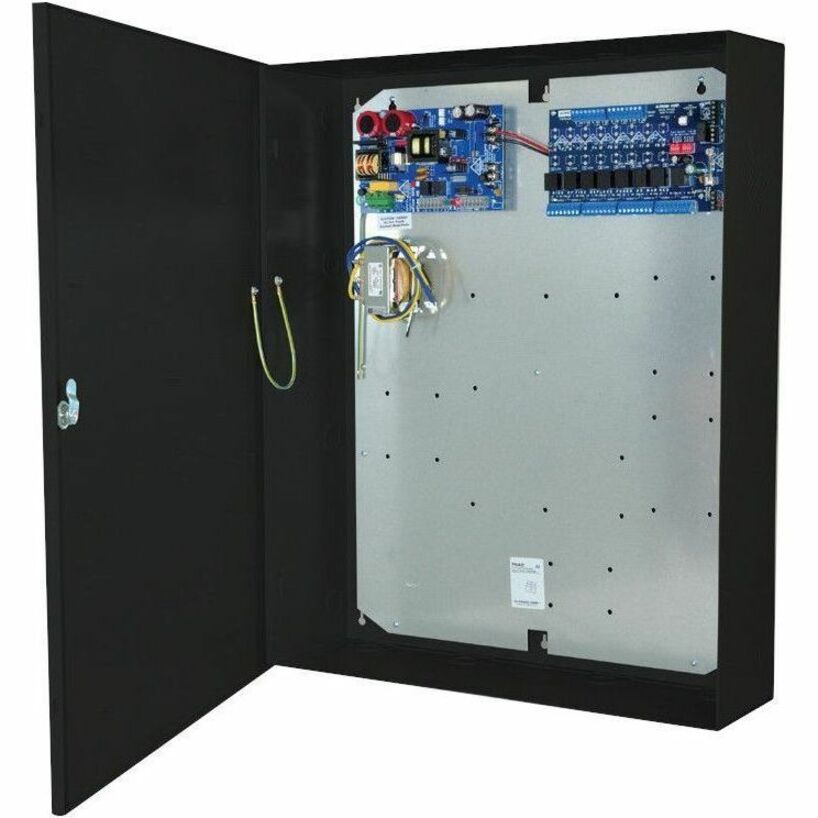

Altronix T2KK38D kit consists of Trove2 enclosure, TKA2 Keyscan/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) PTC access power controller, and one (1) 16VAC transformer.
This kit also accommodate various combinations of Keyscan boards for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Main Specification
| General Information | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | T2KK38D |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Name | 8-Door Altronix/Keyscan Access and Power Integration Kit |
| Product Type | Access/Power Integration Kit |
| Technical Information | |
| Recommended Usage | Door |
| Battery Information | |
| Battery Rechargeable | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 158°F (70°C) |
| Maximum Relative Humidity (Non-condensing) | 85% |
| Physical Characteristics | |
| Material Details | 16 AWG Galvanized Steel Backplane |
| Dimensions | Dimensions: 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D) |
| Weight (Approximate) | Product Weight: 40.9 Lbs (18.55 kg) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
