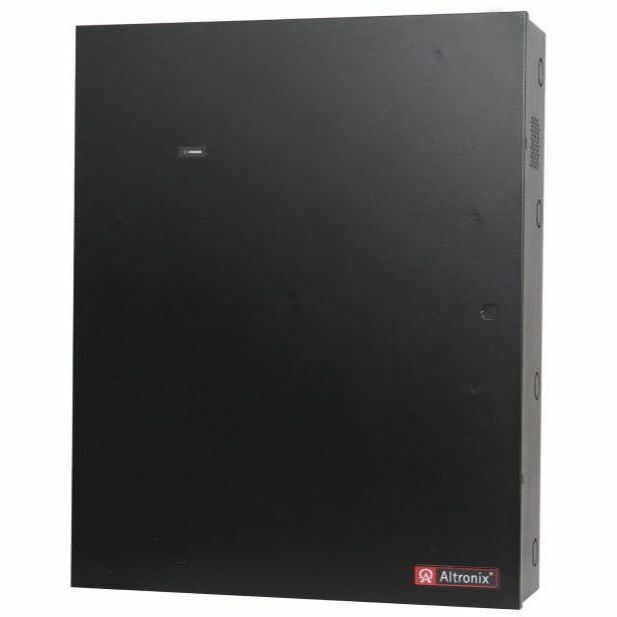

Image may not reflect the actual item.
Price: $1,834.91
+ Free Shipping
Quantity:
More to Come
Last Updated: Oct 20, 2026
No Sales Tax except these states
, PO and Wire.
Altronix T2M7LCK3D is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7LCK3D accommodates four (4) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Main Specification
| General Information | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | T2M7LCK3D |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Name | Access/Power Integration Kit |
| Product Type | Access/Power Integration Kit |
| Technical Information | |
| Recommended Usage | Door |
| Recommended Usage | Wall Mount |
| Battery Information | |
| Number of Batteries Supported | 4 |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 158°F (70°C) |
| Physical Characteristics | |
| Dimensions | Enclosure: 27.25" H x 21.5" W x 6.5" D (692.2mm H x 546.1mm W x 165.1mm D) |
| Weight (Approximate) | Product: 41.6 Lbs.(18.87 kg). |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
