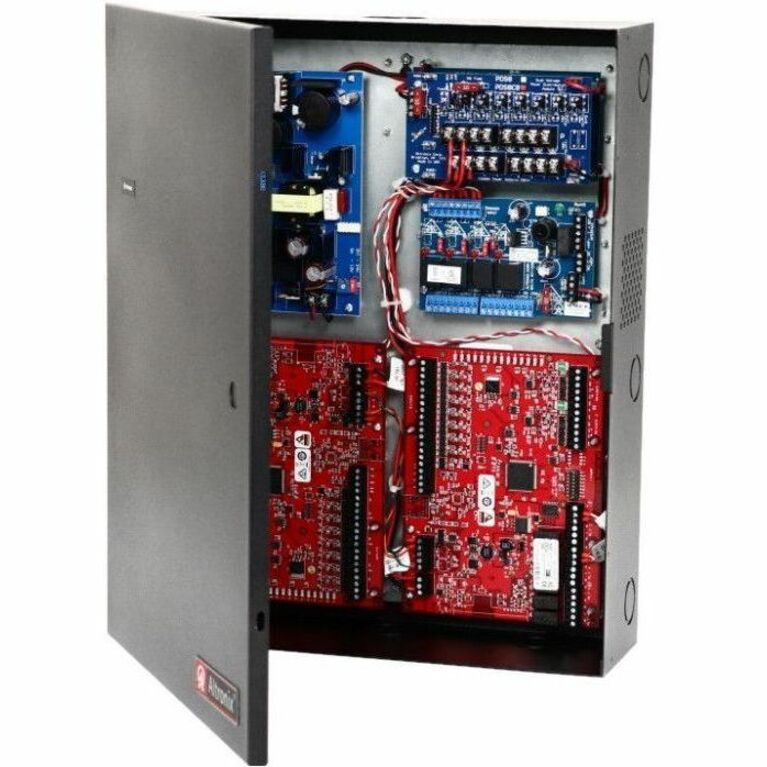

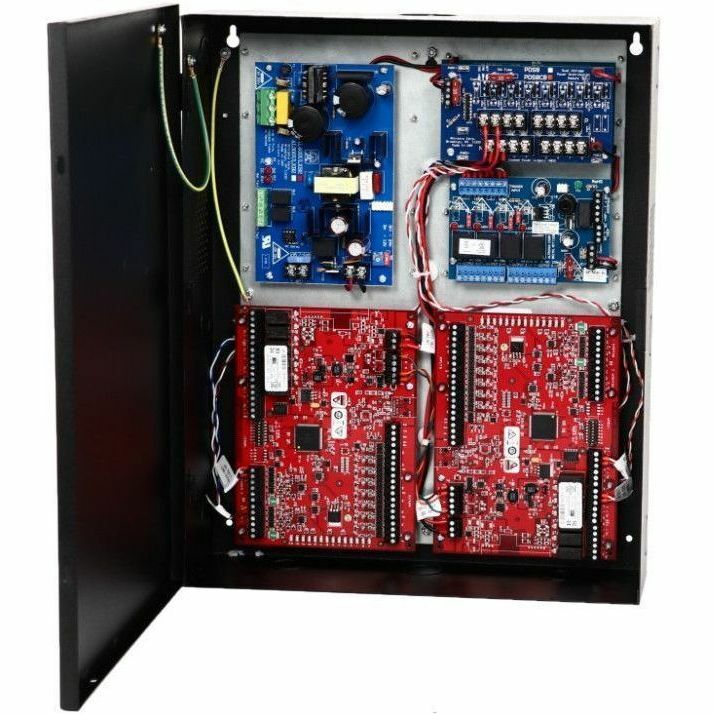

Altronix T1M1LCK3D is a 4-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T1M1LCK3D accommodates two (2) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
*Also compatible with these authentic Mercury partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
| General Information | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | T1M1LCK3D |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Model | T1M1LCK3D |
| Product Name | T1M1LCK3D Access/Power Integration Kit |
| Product Type | Access/Power Integration Kit |
| Technical Information | |
| Recommended Usage | Door |
| Power Description | |
| Input Voltage | 24 V DC |
| Input Voltage | 12 V DC |
| Input Voltage | 115 V AC |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 158°F (70°C) |
| Maximum Relative Humidity (Non-condensing) | 85% |
| Physical Characteristics | |
| Dimensions | 18"H x 14.5"W x 4.62"D (457.2mmH x 368.3mmW x 118.0mmD) |
| Weight (Approximate) | 18.0 lb. (8.17 kg) |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
