ALTRONIX T2MK74D TROVE2 MERC 4DR 10A ULX PTC

Mfg Part Number:  T2MK74D
Image may not reflect the actual item.
Price: $979.88 + Free Shipping
Quantity:
More to Come
Last Updated: Aug 27, 2025
No Sales Tax except these states
, PO and Wire.

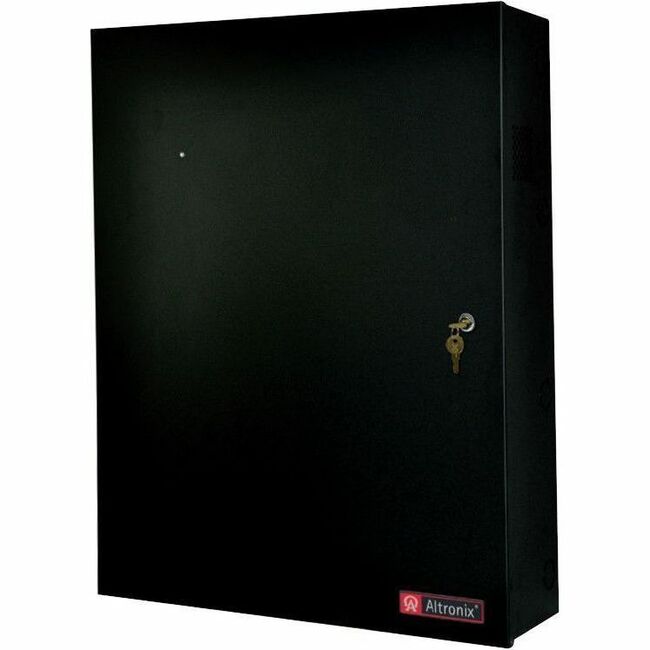

Altronix T2MK74D kit consists of Trove2 enclosure and TM2 Altronix & Mercury backplane with 24VDC @ 10A power supply/charger, four (4) PTC protected output access control module and eight (8) PTC protected output power distribution module. This kit also accommodates various combinations of Mercury* boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Also compatible with these authentic Mercury partners:

AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, Lenel/S2, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt

Main Specification
General Information
Manufacturer Altronix Corporation
Manufacturer Part Number T2MK74D
Manufacturer Website Address http://www.altronix.com
Brand Name Altronix
Product Name 4-Door Altronix/Mercury Access and Power Integration Kit
Product Type Access/Power Integration Kit
Battery Information
Battery Included Yes
Number of Batteries Supported 4
Battery Rechargeable Yes
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 120.2°F (49°C)
Minimum Storage Temperature -4°F (-20°C)
Maximum Storage Temperature 158°F (70°C)
Maximum Relative Humidity (Non-condensing) 85%
Physical Characteristics
Material Details

16 AWG galvanized steel backplane

Dimensions

Dimensions: 21.5"Wx27.25"Hx6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).

Weight (Approximate)

Product Weight:39.2 Lbs.(17.78 kg).

Miscellaneous
Package Contents
  • 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
  • 1 x Trove2 Backplane for Altronix & Mercury
  • 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
  • 1 x Access Power Controller, 4 PTC Class 2 Relay Outputs, FAI, Board
  • 1 x Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
  • 1 x Single Power ON/OFF Rocker Switch with Mounting Bracket
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin United States
Warranty
Limited Warranty Lifetime
