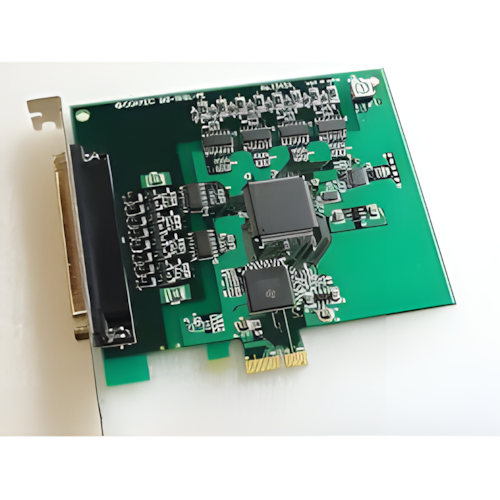

Contec Americas DIO-1616L-PE 16 CHANNEL opto-isolated I/O, Digital I/O PCI Express card 16ch/16ch (isolated 12 - 24VDC)

This product is a PCI Express bus-compliant interface board that extends the digital signal I/O functions of a PC. DIO-1616L-PE is a 12 - 24VDC opto-coupler isolated type with opto-coupler isolated input 16ch and opto-coupler isolated open-collector output 16ch. You can use all of the input signals as interrupt inputs. Equipped with the digital filter function and output transistor protection circuit (surge voltage protection and overcurrent protection).Windows/Linux driver is bundled with this product.

Electric Certification Compliancy: CE
Environment Compliancy: RoHS Directive

• DIO-1616L-PE has the opto-coupler isolated input 16ch (supporting current sink output) whose response speed is 200µsec and opto-coupler isolated open-collector output 16ch (current sink type). Common terminal provided per 16ch, capable of supporting a different external power supply. Supporting driver voltages of 12 - 24 VDC for I/O.
• Opto-coupler bus isolation: As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise immunity.
• You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
• This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
• Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection. Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, polyswitches are fitted to each group of 8ch outputs for over-current protection. Output rating : max 35VDC, 100mA per channel.
• Windows/Linux compatible driver libraries are attached: Bundled driver library API-PAC(W32) enables to create Window/Linux applications. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

Digital I/O
Bus	PCI Express
Function	I/O
Input	16
Output	16
Bidirection	-
Working voltage	Output: 12--24VDC; Input: 12--24VDC

If you need accessory information for this product, please use our Online Contact Us Form , our industrial sales team is here to help you find the accessories.

Download DataSheet
