HANWHA TECHWIN

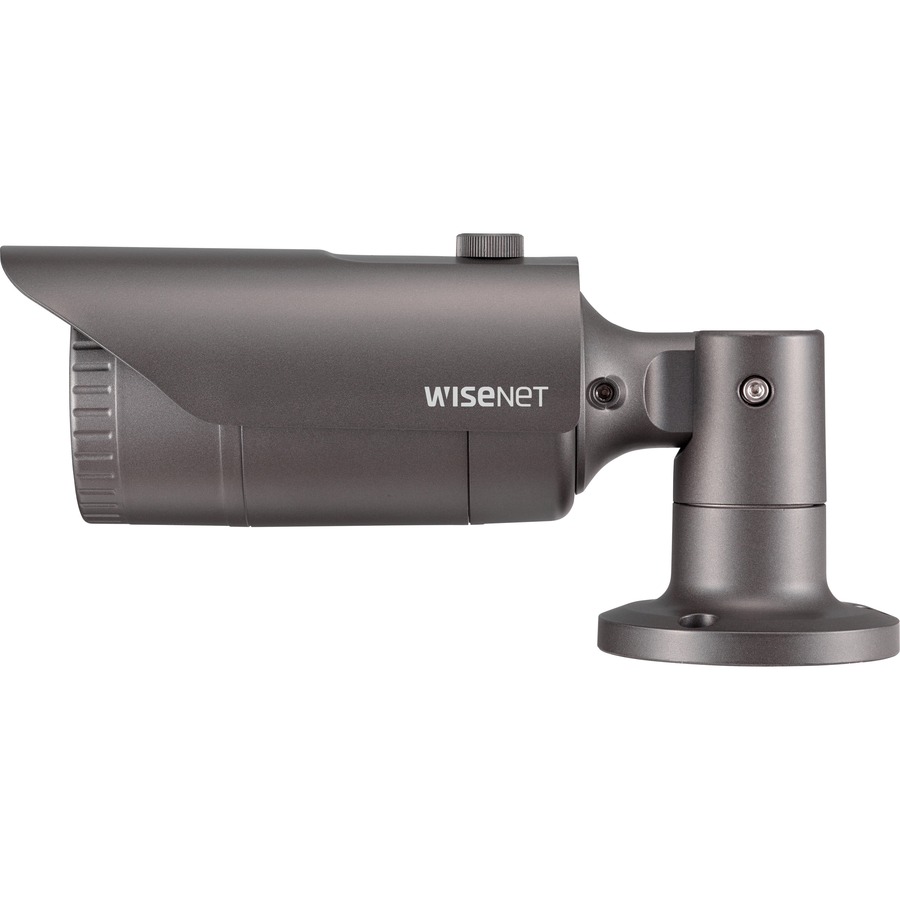

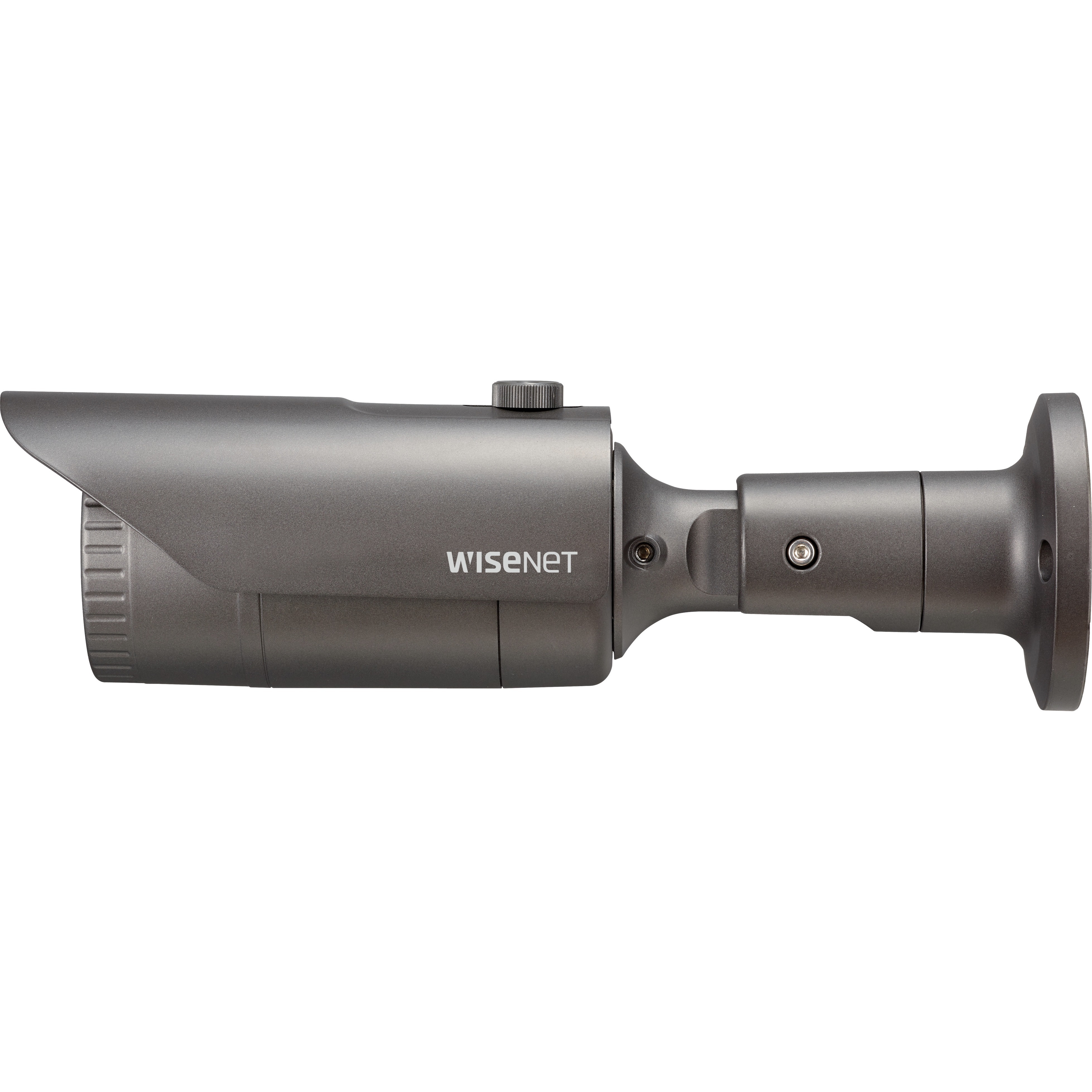

HANWHA TECHWIN QNO-6022R1 Wisenet Q network outdoor vandal bullet camera 2MP @ 30fps 4.0mm fixed focal lens (87 ) triple codec H.265/H.264/MJPEG with Wisestream II 120dB WDR IR LEDs range 82ft. defocus detection hallway View no audio in/out SD card video analytics CVBS
Mfg Part Number: QNO-6022R1 , Item #: 4688123
Image may not reflect the actual item.
Price: $294.77
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 13, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNO6022R1 |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QNO-6022R1 |
| Product Name | 2MP IR Bullet Camera (No Audio) |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 82.02 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 87.6 / V: 46.4° / D: 104.5° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264H |
| Video Formats | H.264 |
| Video Formats | H.265M |
| Video Formats | Motion JPEG |
| Video Formats | H.265 |
| Video Formats | H.264M |
| Video Formats | H.265H |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Pole Mount |
| Mount Type | Box Mount |
| Form Factor | Bullet |
| Color Family | Gray |
| Product Color | Dark Gray |
| Diameter | 2.8" |
| Weight (Approximate) | 1.54 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Gain Control |
| Features | Back Light Compensation (BLC) |
| Features | SD Card Local Storage |
| Features | Day/Night |
| Features | Wide Dynamic Range |
| Features | Motion Detection |
| Features | Privacy Masking |
| Features | Automatic White Balance |
| Features | Digital Noise Reduction |
| Features | Built-in IR LED |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
