HANWHA TECHWIN

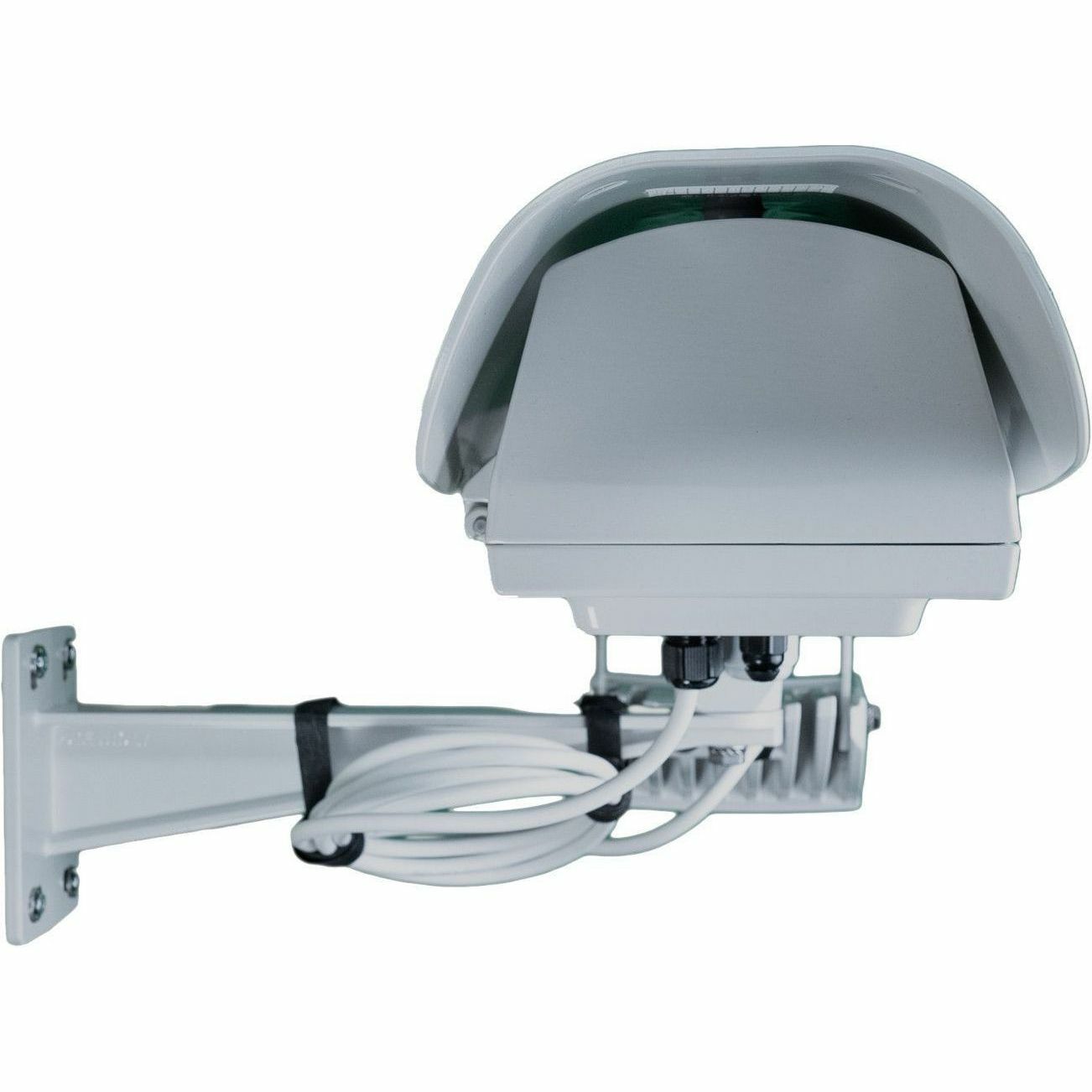

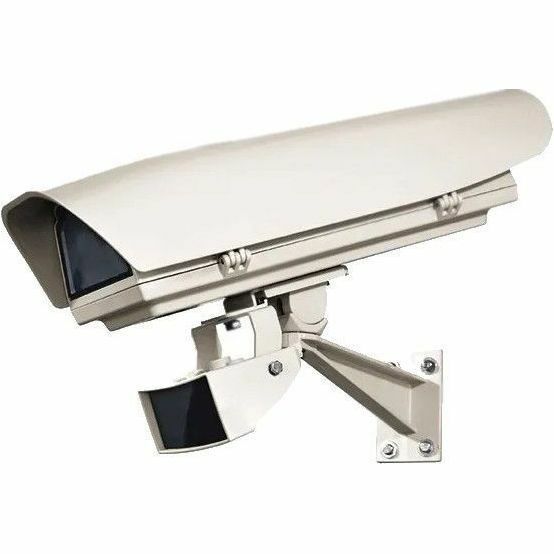

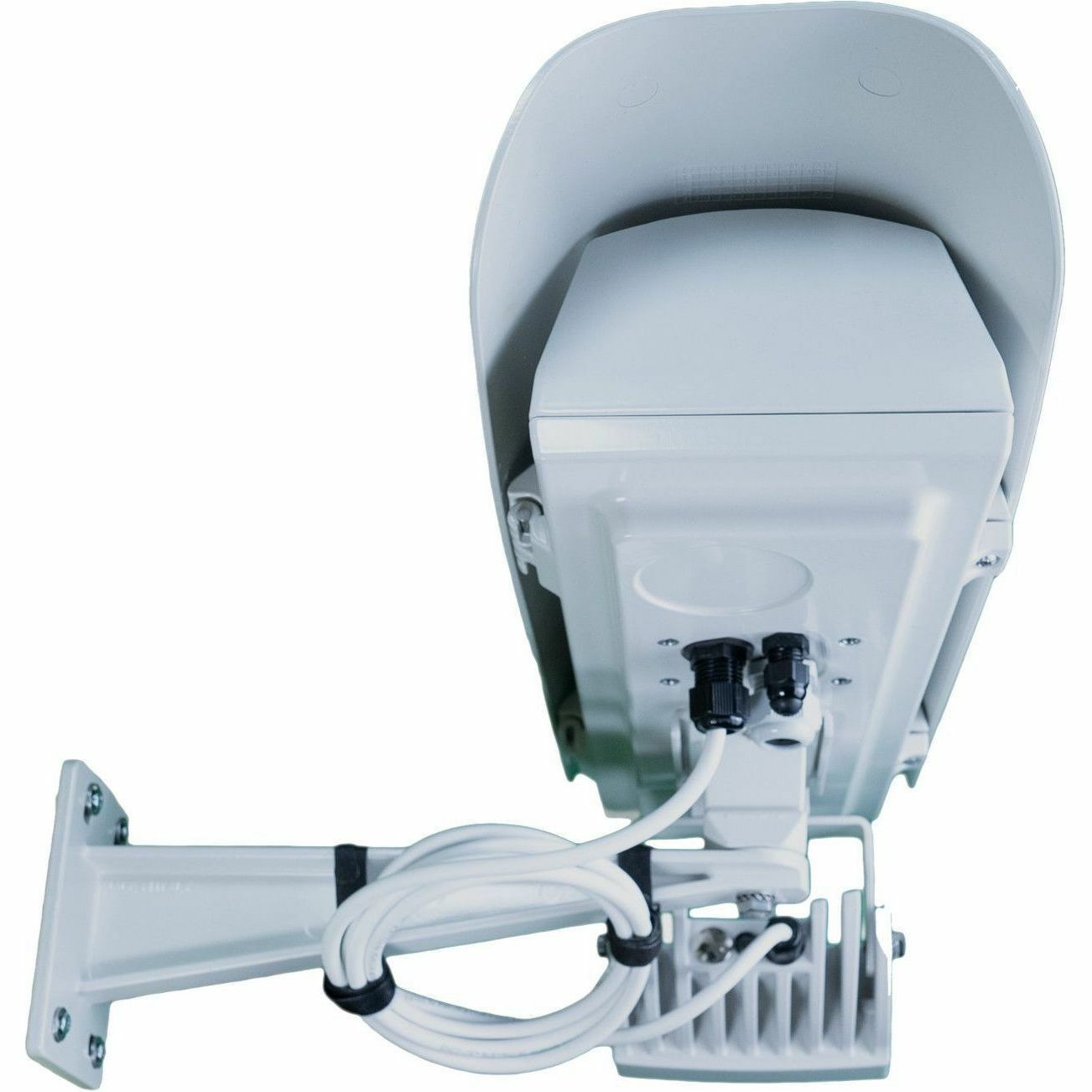

HANWHA TECHWIN PNB-A9091RLPH AI LPR Box camera with Enclosure and IR - 4K Moderate Speed (up to 75MPH) LPR Box Camera Kit with Enclosure and IR Licensed with Wisenet Road AI. Max. 4K resolution 12-50 mm lens H.265 H.264 MJPEG codec WiseStream III Includes PoE+ Camera enclosu
Mfg Part Number: PNB-A9091RLPH , Item #: 4687833
, PO and Wire.
Hanwha Vision P series cameras feature edge-based AI analytics for intelligent object detection and attribute extraction. Reduce false alarms and increase operational efficiency during forensic review with this versatile line of cameras.
Reduce false alarms with AI-triggered events
P series cameras use AI to generate object data to identify people, faces, vehicles, license plates and more, while separating detected objects from their surroundings to reduce false alarms.
Expand your vision
BestShot gives you a snapshot of detected objects in real-time along with all captured metadata for easy identification.
Advanced AI video analytics
Utilize your security and surveillance system for more with intelligent video analytics, giving you actionable business insights and searchable metadata.
Reinforced durability
Built to stand up to the elements indoors and out, Hanwha Vision cameras are scratch-resistant, vent away condensation, and are protected from voltage surges.
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | PNBA9091RLPH |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | P |
| Product Model | PNB-A9091RLPH |
| Product Name | PNB-A9091RLPH 4K AI LPR Box Camera Kit with IR |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | 4K |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 120 ft |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Camera Iris | Manual |
| Camera Iris | Auto |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | Horizontal: 30°, Vertical: 30° |
| Video | |
| Video Formats | H.265M |
| Video Formats | H.264H |
| Video Formats | MJPEG |
| Video Formats | H.265H |
| Video Formats | H.265 |
| Video Formats | H.264M |
| Video Formats | H.264 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 12 mm |
| Maximum Focal Length | 50 mm |
| Lens Included | Yes |
| Lens Mount Type | C/CS-mount |
| Maximum Aperture | f/1.8 |
| Optical Zoom | 4.2x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | UDP |
| Protocols | IEEE 802.1X (EAP-TLS) |
| Protocols | ONVIF |
| Protocols | IPv4 |
| Protocols | RTP/TCP |
| Protocols | ARP |
| Protocols | DNS |
| Protocols | UPnP |
| Protocols | IPv6 |
| Protocols | NTP |
| Protocols | SNMPv1/v2c/v3 (MIB2) |
| Protocols | TCP |
| Protocols | RTP/UDP |
| Protocols | RTP |
| Protocols | DDNS |
| Protocols | LLDP |
| Protocols | QoS |
| Protocols | UDP/IP |
| Protocols | RTSP |
| Protocols | Unicast |
| Protocols | TCP/IP |
| Protocols | RTCP |
| Protocols | HTTP |
| Protocols | FTP |
| Protocols | IGMP |
| Protocols | Bonjour |
| Protocols | HTTPS |
| Protocols | SSL/TLS |
| Protocols | DHCP |
| Protocols | SMTP |
| Protocols | ICMP |
| Protocols | SRTP |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 25.50 W |
| Power Source Type | PoE+ |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Rack Mount |
| Mount Type | Desk Mount |
| Mount Type | Wall Mount |
| Form Factor | Box |
| Durability | Dust Resistant |
| Durability | Water Resistant |
| Color Family | White |
| Product Color | Gray White |
| Weight (Approximate) | 16.40 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range |
| Features | Privacy Masking |
| Features | Alarm Triggering |
| Features | Digital Noise Reduction |
| Features | Tamper Detection |
| Features | Built-in IR LED |
| Features | Back Light Compensation (BLC) |
| Features | Gain Control |
| Features | White Balance |
| Features | Motion Detection |
| Features | Day/Night |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents |
|
| Ingress Protection Rating | IP67 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | 5 Year |
