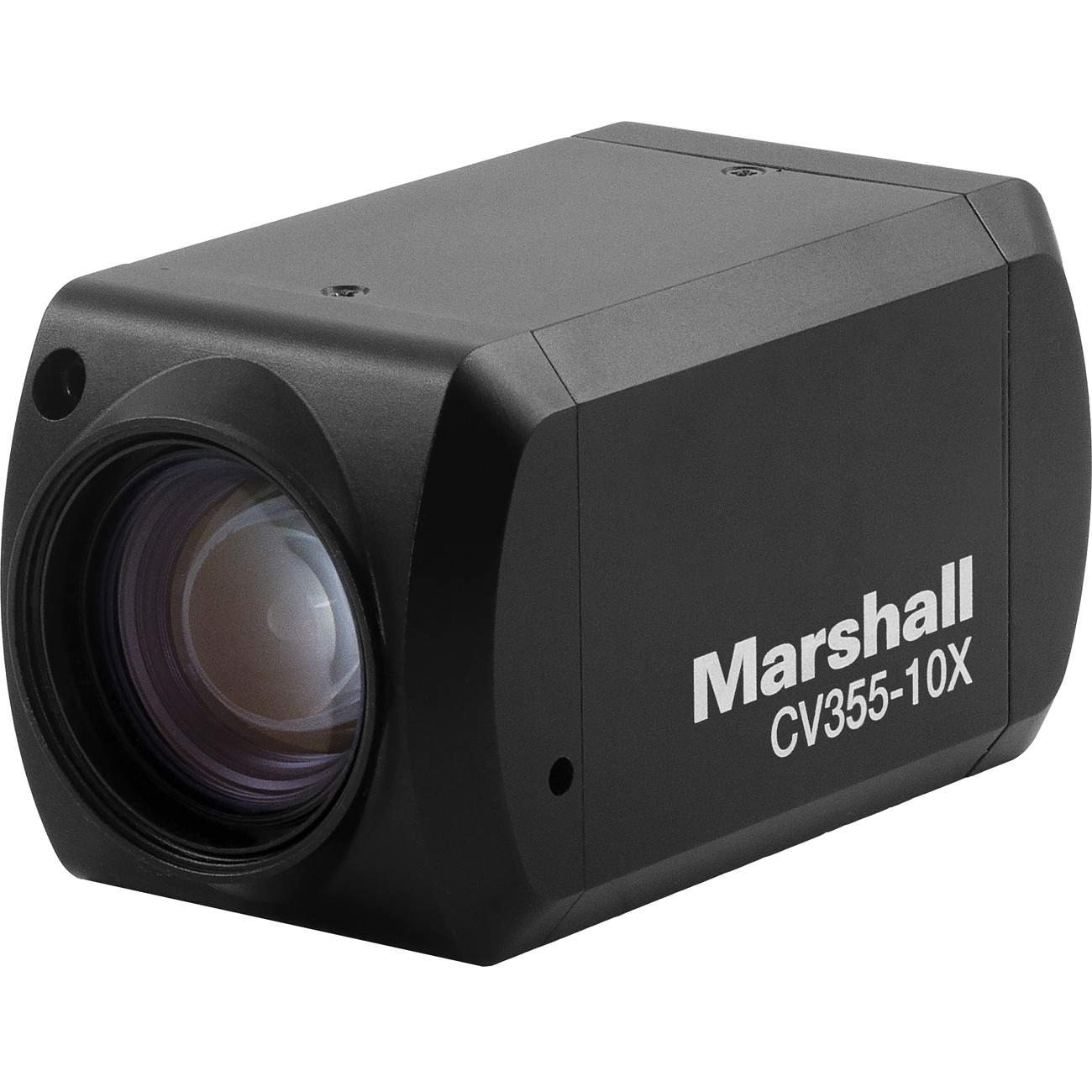

MARSHALL ELECTRONICS CV355-10X 10X ZOOM CAMERA 3GSDI/HDMI (HD60)

Marshall CV355-10X features 10x optical (12x digital) zoom block and flexible 3GSDI/HDMI simultaneous outputs with clear HD images up to 1920x1080 at 60fps. Remote adjust and match settings include Iris, WB, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.

Unmatched Versatility

Presenting 3GSDI and HDMI simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV355-10X delivers crystal-clear HD images up to 1920x1080p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.

Durable Build Construction

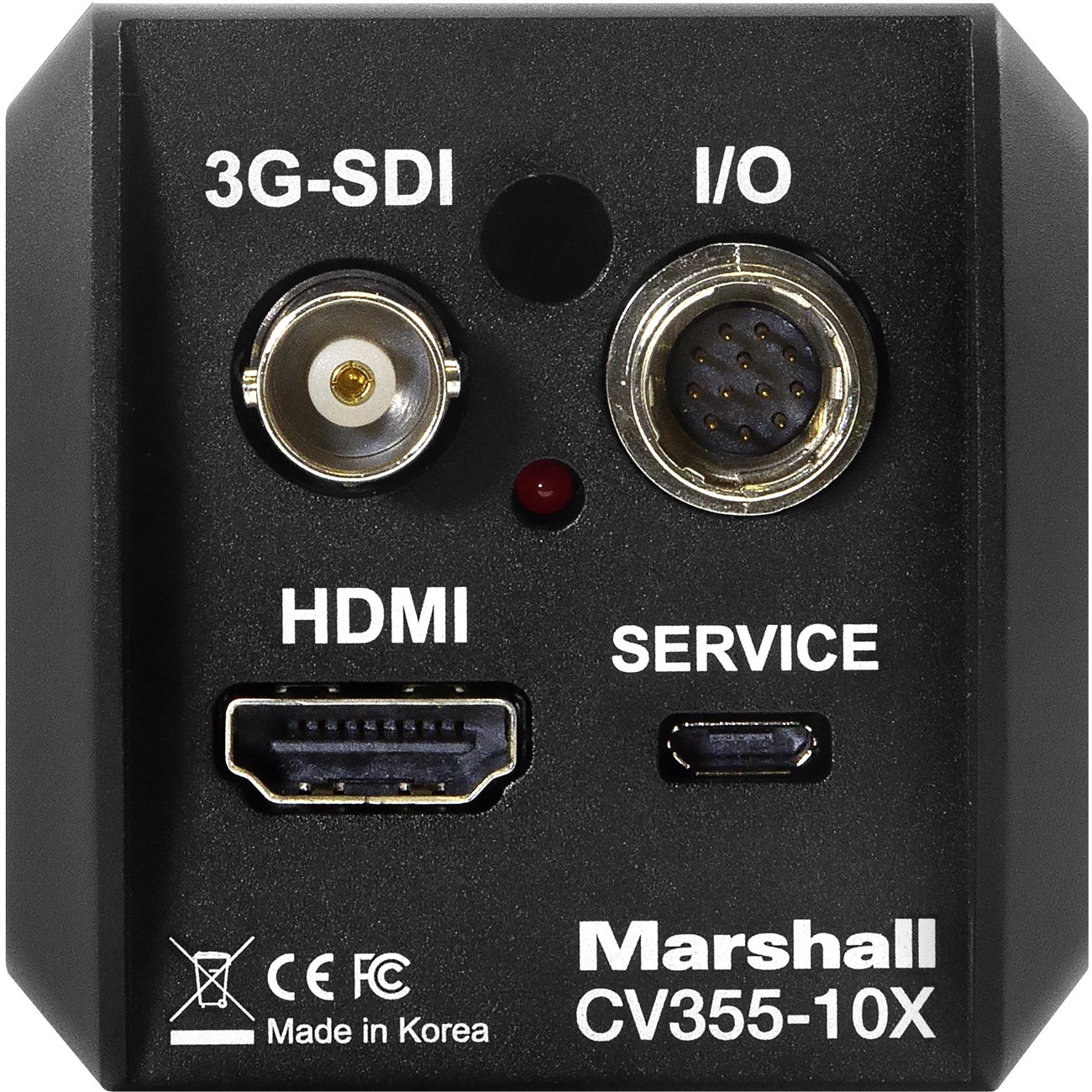

Constructed with a durable aluminum alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.

Universal Use Cases

Featuring a wide range of HD selections in 1920x1080i (interlaced), 1920x1080p and 1280x720p (progressive). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frames per second to capture any workflow or application in every region of the world.

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

General Information
Manufacturer	Marshall Electronics, Inc
Manufacturer Part Number	CV355-10X
Manufacturer Website Address	http://www.mars-cam.com
Brand Name	Marshall
Product Model	CV355-10X
Product Name	CV355-10X Compact 10X Camera (3GSDI & HDMI)
Product Type	Surveillance Camera
Technical Information
Recording Formats	Full HD
HD Recording	Yes
Display & Graphics
Image Sensor Type	CMOS
Color Supported	Color
Field of View	60 degrees (wide end) to 6 degrees (tele end)
Effective Camera Resolution	2.1 Megapixel
Video
Maximum Video Resolution	1920 x 1080
Maximum Frame Rate	60 fps
Video Signal Format	NTSC
Video Signal Format	PAL
Analog Video Signal Format	3G/HD-SDI
Lens
Lens Type	Varifocal
Minimum Focal Length	4.70 mm
Maximum Focal Length	47 mm
Lens Included	Yes
Minimum Aperture	f/3
Maximum Aperture	f/1.6
Optical Zoom	10x
Exposure
Shortest Shutter Speed	1/10000 Second
Longest Shutter Speed	1/25 Second
Network & Communication
Connectivity Technology	Wired
Remote Management	No
Interfaces/Ports
HDMI	Yes
Power Description
Input Voltage	12 V DC
Physical Characteristics
Mount Type	Pole Mount
Mount Type	Gooseneck
Mount Type	Wall Mount
Height	2.2"
Width	2.2"
Depth	4.1"
Weight (Approximate)	12.80 oz
Environmental Conditions
Minimum Operating Temperature	14°F (-10°C)
Maximum Operating Temperature	122°F (50°C)
Miscellaneous
Features	Auto Gain Control
Features	White Balance
Features	Defog
Features	Day/Night
Features	Digital Image Stabilization
Features	Privacy Masking
Features	3D Noise Reduction
Features	2D Digital Noise Reduction (2DNR)
Package Contents	CV355-10X Compact 10X Camera (3GSDI & HDMI) Hirose Breakout Cable Included 12V Power Cable Included (7V~15V, 4.5W max)
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
