MARSHALL ELECTRONICS CV610-U3W-V2 10X PTZ CAMERA USB3/HDMI (WHITE)

Mfg Part Number:  CV610-U3W-V2
Image may not reflect the actual item.
Price: $1,038.10 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Nov 29, 2025
No Sales Tax except these states
, PO and Wire.
  • 2-Megapixel HD Sensor
  • 10x Optical Zoom: 62.5°~6.4°Horizontal AOV (12x Digital Zoom)
  • Compact overall footprint (approx.): 145mm diameter, 112mm head diameter, 155mm height
  • USB 3.0/2.0 (uncompressed) output with simultaneous HDMI output
  • Full-HD resolutions: 1920x1080p, 1280x720p
  • Frame rates: 60, 50, 30, 25 fps
  • HDMI output resolution can be set independently of USB output resolutions
  • Onboard audio mic & 3.5mm TRS audio jack (optional input)
  • Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
  • Up to 128 presets with quiet, smooth transitions

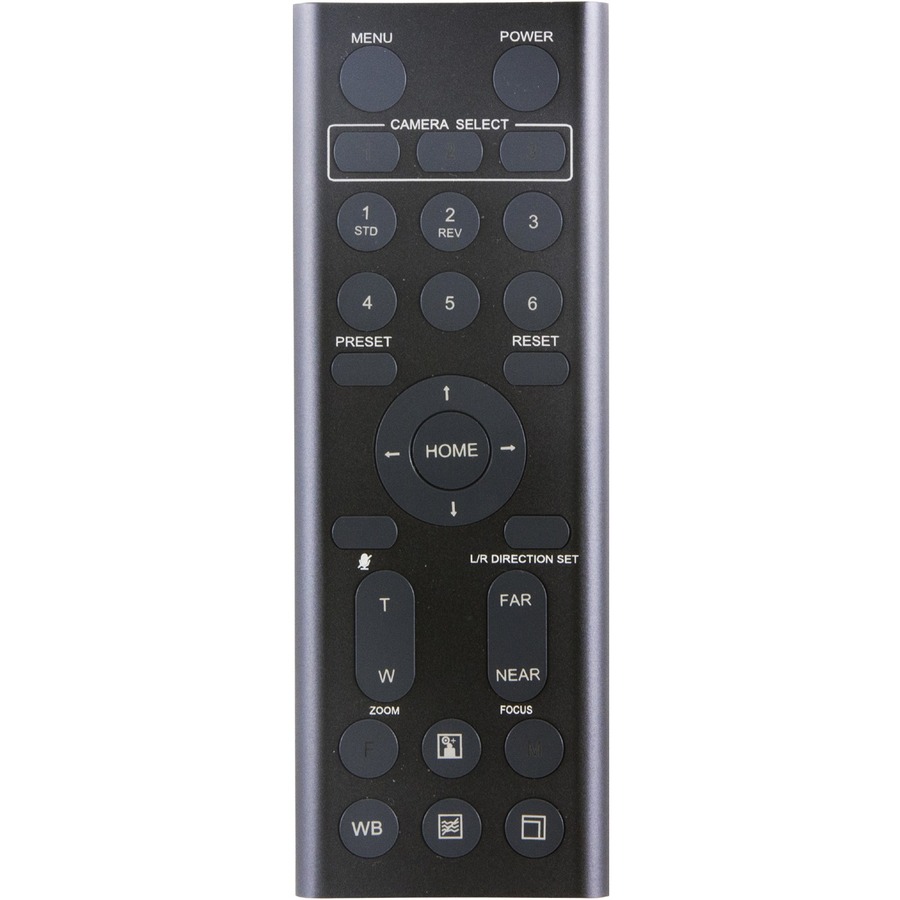

  • Control via common software UVC codecs, IR Remote, RS232, RS485, and USB 3.0/2.0

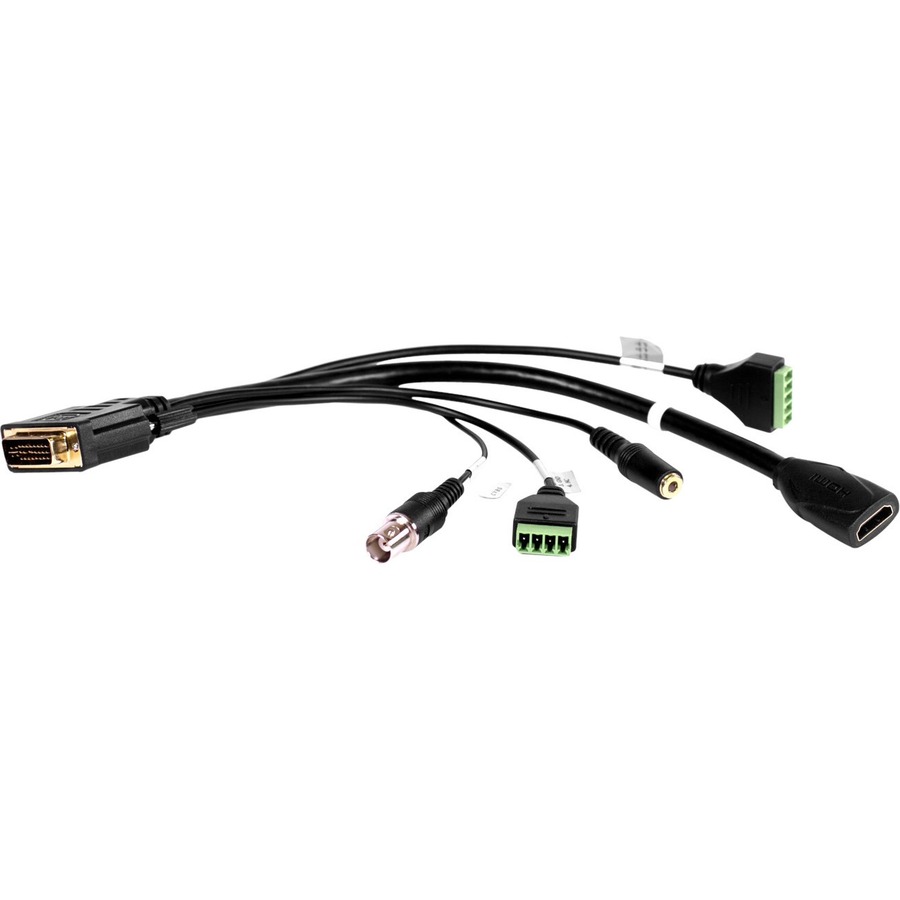

  • Breakout Cable, USB 3.0/2.0 cable, and 12V Power Cord included with camera
Marshall's new second-generation CV610-U3W-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View (AOV) at 63°, and simultaneous HDMI livestream output. The CV610-U3W-V2 has a compact footprint and uses common control protocols over USB (UVC 1.5 and UAV 2.0) making it a versatile and easy-to-use PTZ camera that can be integrated with a variety of different software codecs. The CV610-U3W-V2 was developed to deliver next-level performance for any UCC, teleconference, Pro A/V, or livestreaming applications with HD video output in 1920x1080p at 60/50/30/25 fps, and 1280x720 at 60/50/30/25 fps.
Main Specification
General Information
Manufacturer Marshall Electronics, Inc
Manufacturer Part Number CV610-U3W-V2
Manufacturer Website Address http://www.mars-cam.com
Brand Name Marshall
Product Name 10x HD60 USB/HDI PTZ Camera
Product Type Surveillance Camera
Technical Information
Recording Formats HD
HD Recording Yes
Display & Graphics
Image Sensor Type CMOS
Color Supported Color
Field of View 62.5
Effective Camera Resolution 2 Megapixel
Video
Maximum Video Resolution 1920 x 1080
Maximum Frame Rate 60 fps
Lens
Minimum Focal Length 3.80 mm
Maximum Focal Length 38 mm
Lens Included Yes
Minimum Aperture f/1.8
Maximum Aperture f/3.4
Optical Zoom 10x
Exposure
Shortest Shutter Speed 1/10000 Second
Longest Shutter Speed 1/1 Second
Network & Communication
Connectivity Technology Wired
Interfaces/Ports
HDMI Yes
Power Description
Input Voltage 12 V DC
Physical Characteristics
Mount Type Table Mount
Mount Type Tripod Mount
Mount Type Shelf Mount
Mount Type Ceiling Mount
Product Color White
Height 6.1"
Diameter 5.7"
Miscellaneous
Features Built-in Microphone
Indoor/Outdoor Indoor/Outdoor
Package Contents
  • 10x HD60 USB/HDI PTZ Camera
  • Breakout Cable
  • USB 3.0/2.0 Cable
  • 12VPower Cord
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
