MARSHALL ELECTRONICS CV630-IPW 30X PTZ CAMERA IP/3GSDI/HDMI (WHITE)
Mfg Part Number: CV630-IPW , Item #: 4685860
, PO and Wire.

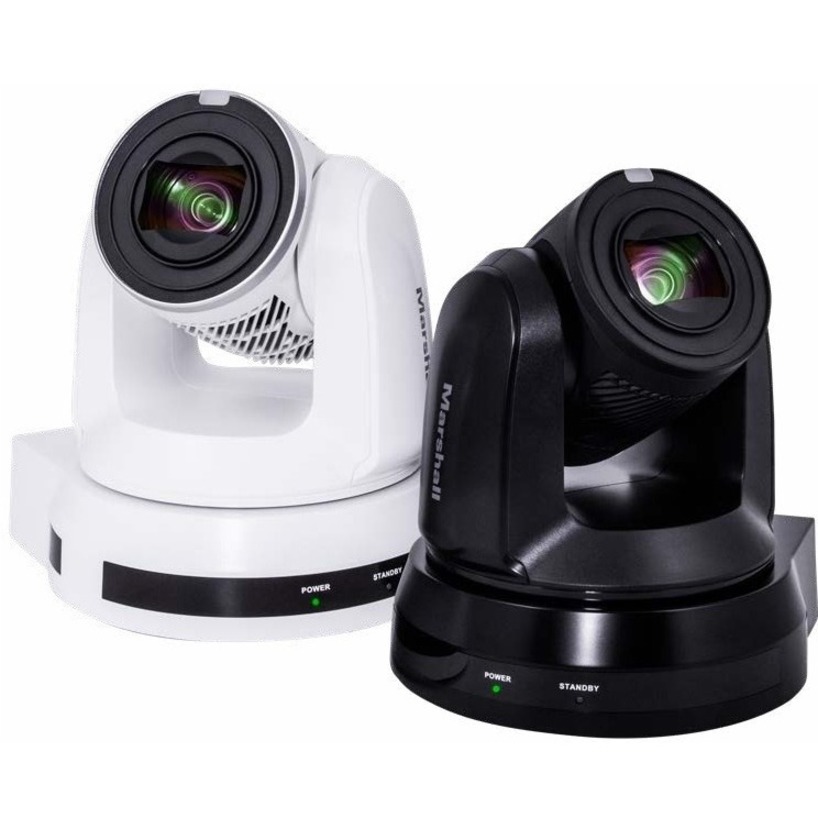

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.
High Performance Video Output
At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.
Versatile Camera Positioning
The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.
Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
Flexible Control Options
The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.
| General Information | |
| Manufacturer | Marshall Electronics, Inc |
| Manufacturer Part Number | CV630-IPW |
| Manufacturer Website Address | http://www.mars-cam.com |
| Brand Name | Marshall |
| Product Model | CV630-IPW |
| Product Name | 30x UHD30 IP (HEVC) PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | 4K |
| HD Recording | Yes |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 70° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.265 (HEVC) |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Maximum Video Resolution | 3840 x 2160 |
| Video Signal Format | NTSC |
| Video Signal Format | PAL |
| Analog Video Signal Format | 3G/HD-SDI |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.60 mm |
| Maximum Focal Length | 135 mm |
| Lens Included | Yes |
| Minimum Aperture | f/1.6 |
| Maximum Aperture | f/3.5 |
| Optical Zoom | 30x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Wall Mount |
| Mount Type | Desk Mount |
| Mount Type | Ceiling Mount |
| Product Color | White |
| Height | 10.6" |
| Width | 10.8" |
| Length | 12.6" |
| Weight (Approximate) | 9.06 lb |
| Miscellaneous | |
| Features | PTZ |
