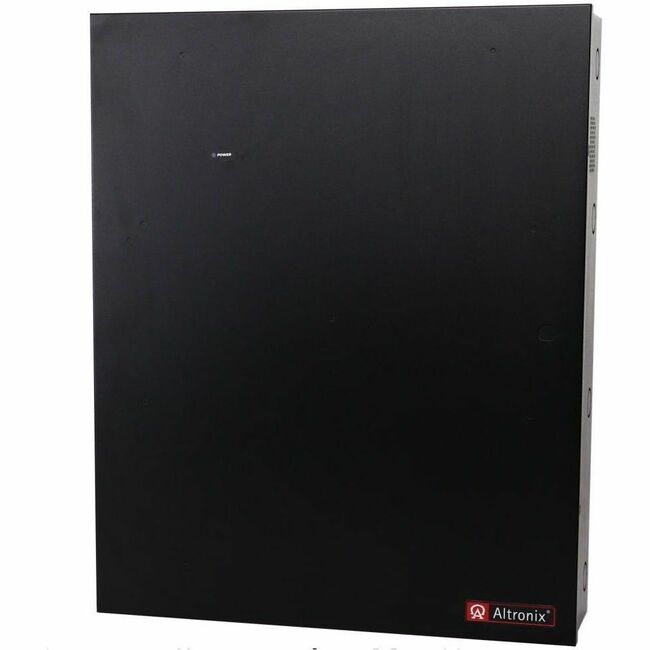

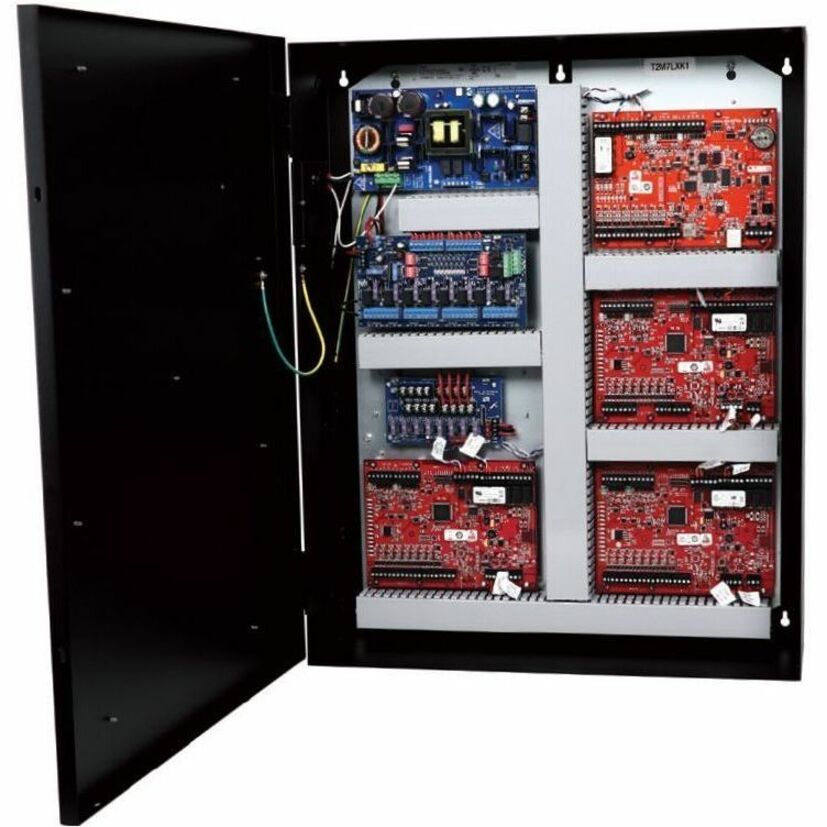

Altronix T2M7LXK1 is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7LXK1 accommodates one (1) Intelligent Dual Reader Controller and three (3) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.
Main Specification
| General Information | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | T2M7LXK1 |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Name | Power Integration Kit |
| Product Type | Access/Power Integration Kit |
| Technical Information | |
| Recommended Usage | Door |
| Battery Information | |
| Number of Batteries Supported | 2 |
| Power Description | |
| Input Voltage | 12 V DC |
| Input Voltage | 24 V DC |
| Input Voltage | 115 V AC |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 158°F (70°C) |
| Maximum Relative Humidity (Non-condensing) | 85% |
| Physical Characteristics | |
| Dimensions | 27.25"H x 21.5"W x 6.5"D (692.2mmH x 546.1mmW x 165.1mmD) |
| Weight (Approximate) | 41.6 lb. (18.87 kg) |
| Miscellaneous | |
| Compatibility | "Altronix":
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
