MARSHALL ELECTRONICS RS7-HR RS232/RS422 HOME RUN DISTRIBUTION BOX FOR UP TO 7 CAMERAS
Mfg Part Number: RS7-HR , Item #: 4685395
Image may not reflect the actual item.
Price: $240.26
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 29, 2025
No Sales Tax except these states
, PO and Wire.
RS7-HR CONNECTION

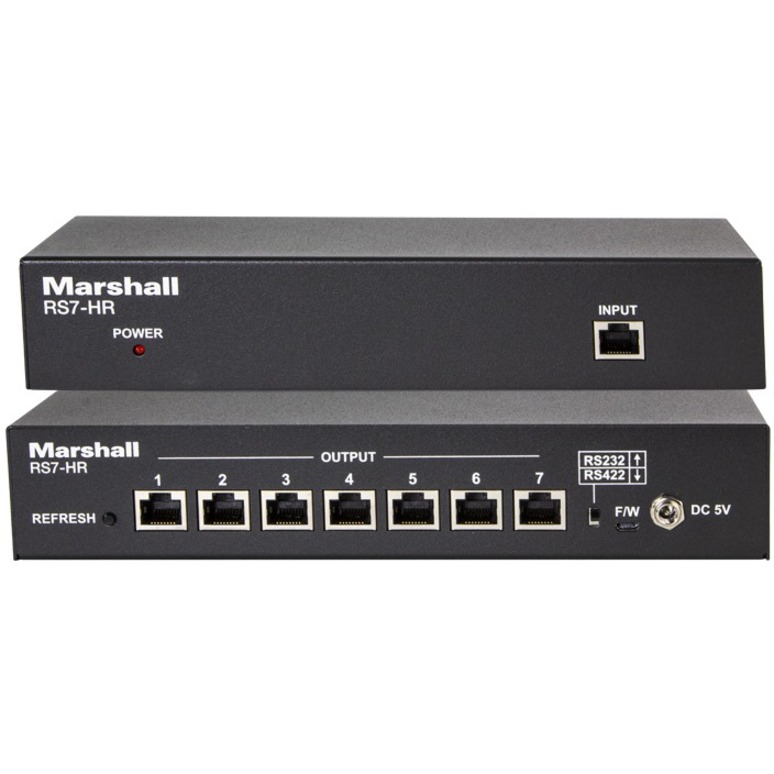

The RS7-HR can be set on a desk top or you can use the included 1RU rack ears to install a rack. Please note the following:
The RS7-HR can be set on a desk top or you can use the included 1RU rack ears to install a rack. Please note the following:

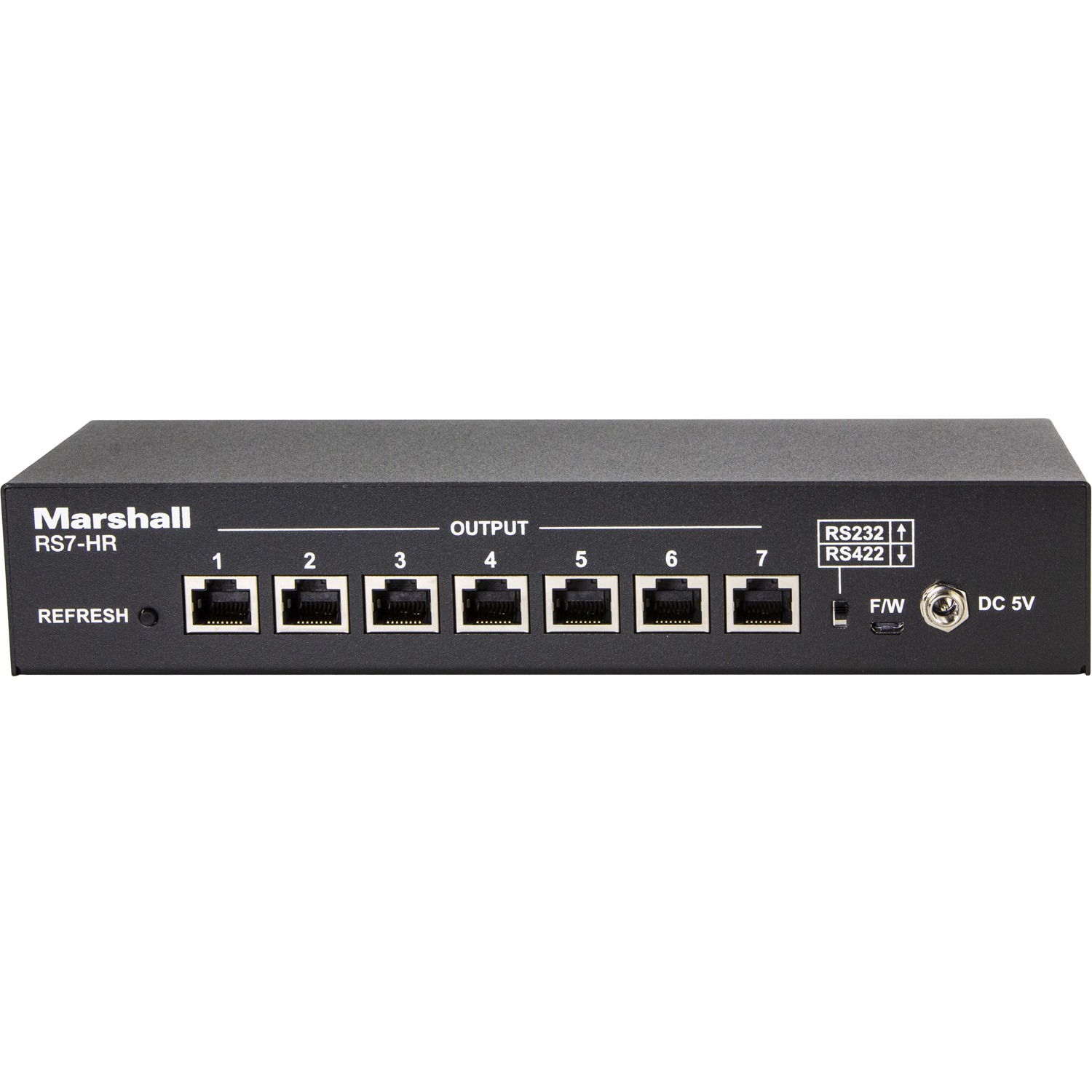

- Before connecting your equipment please select RS232 or RS422 on the back of the unit

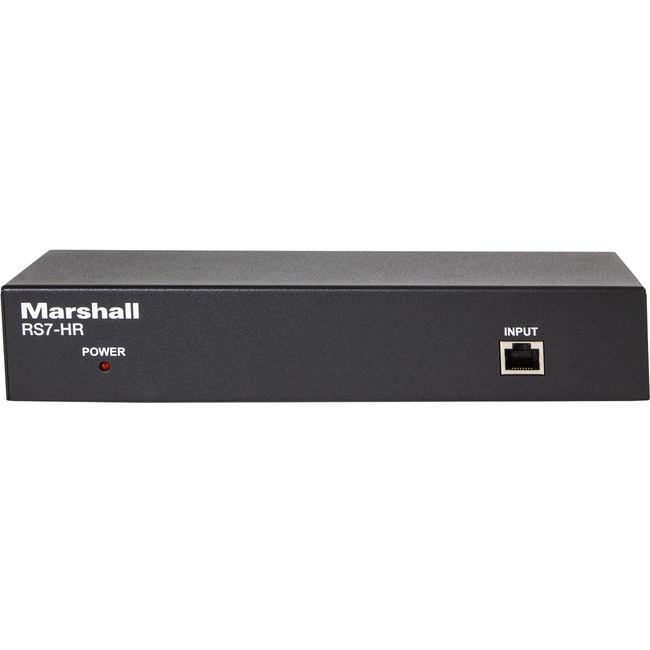

- Connect your controller to the Input connection on the front of the RS7-HR using a Cat 5/6 cable
- On the back of the RS7-HR connect your Cat 5/6 cables from the RS7-HR to each camera (you may need optional CV620-CABLE-07 Adapters for RS232)
- You will now connect power to the RS7-HR, you will see a red indicator light appear on the front of the unit, now you will push the refresh button once
- If you disconnect a camera or add a camera you will need to push the refresh button again
Main Specification
| General Information | |
| Manufacturer | Marshall Electronics, Inc |
| Manufacturer Part Number | RS7-HR |
| Manufacturer Website Address | http://www.mars-cam.com |
| Brand Name | Marshall |
| Product Model | RS7-HR |
| Product Name | RS7-HR Signal Splitter |
| Product Type | Signal Splitter |
| Technical Information | |
| Indicator Light | Yes |
